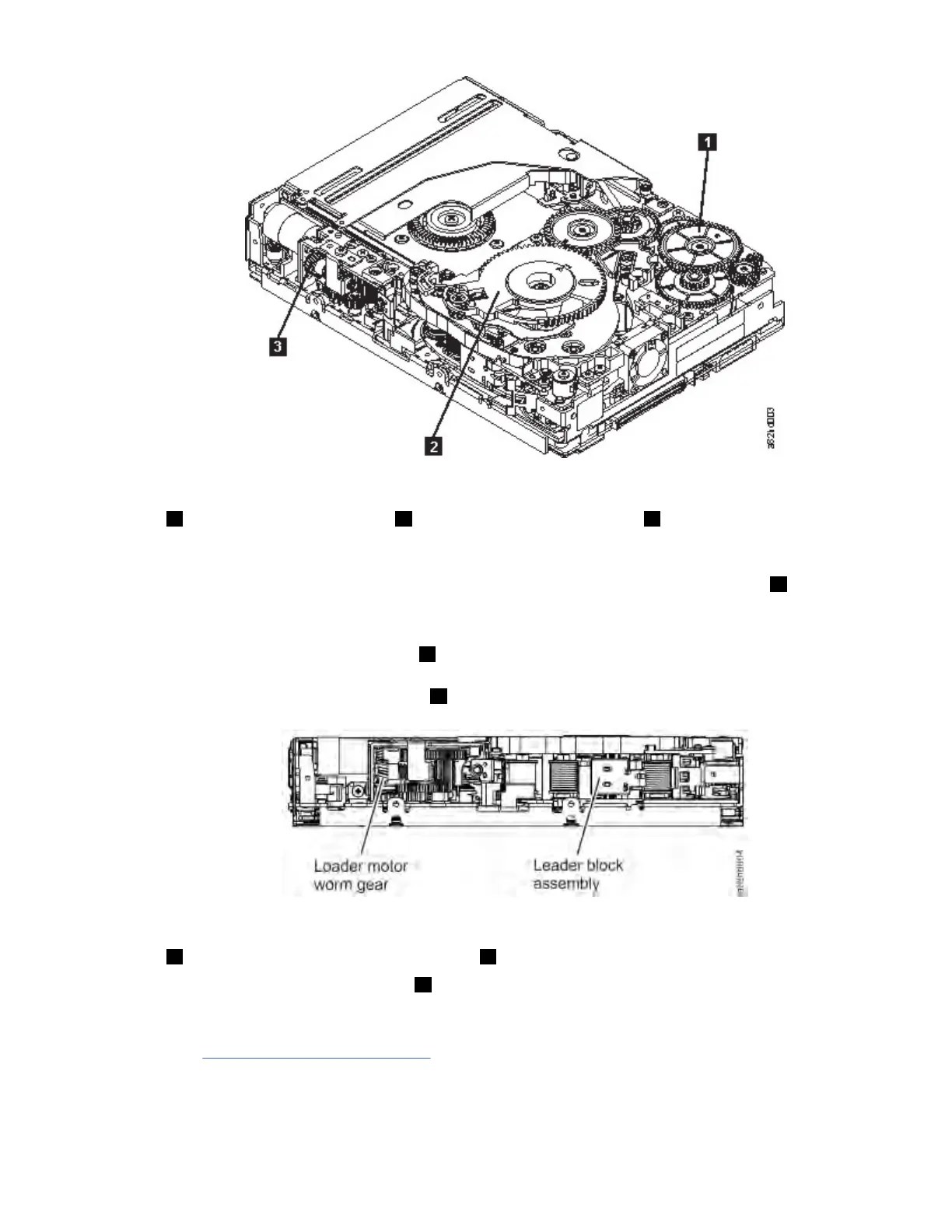

Figure 130. Drive with cover removed to reveal gear train.

1 Threader

intermediate gear

2 Threader mechanism gear 3 Loader motor worm

gear

5. As the leader pin is secured in the cartridge, you hear the leader pin retention spring clips click into

place. If you do not hear the click, continue rolling until the threader intermediate gear (1) stops. The

LBA is in the correct position.

Note: Be sure to keep tension on the tape as the LBA is drawn into the cartridge.

6. Rotate the loader intermediate gear (1) clockwise as viewed from the front of the drive until it stops.

This action releases the LBA leader pin.

7. Rotate the threader motor worm gear (3) counterclockwise until the leader block is in front of the

read/write head. This action moves the LBA out of the cartridge.

Figure 131. Leader Block Assembly (LBA)

1 Loader motor worm gear 2 Leader block assembly (LBA)

8. Rotate the loader motor worm gear (3) counterclockwise as viewed from the front of the drive until it

stops.

9. Remove the cartridge from the cartridge loader tray.

10. Go to “Ending procedure” on page 245.

IBM Condential

244IBM TS4300 Tape Library Machine Type 3555: User's Guide
