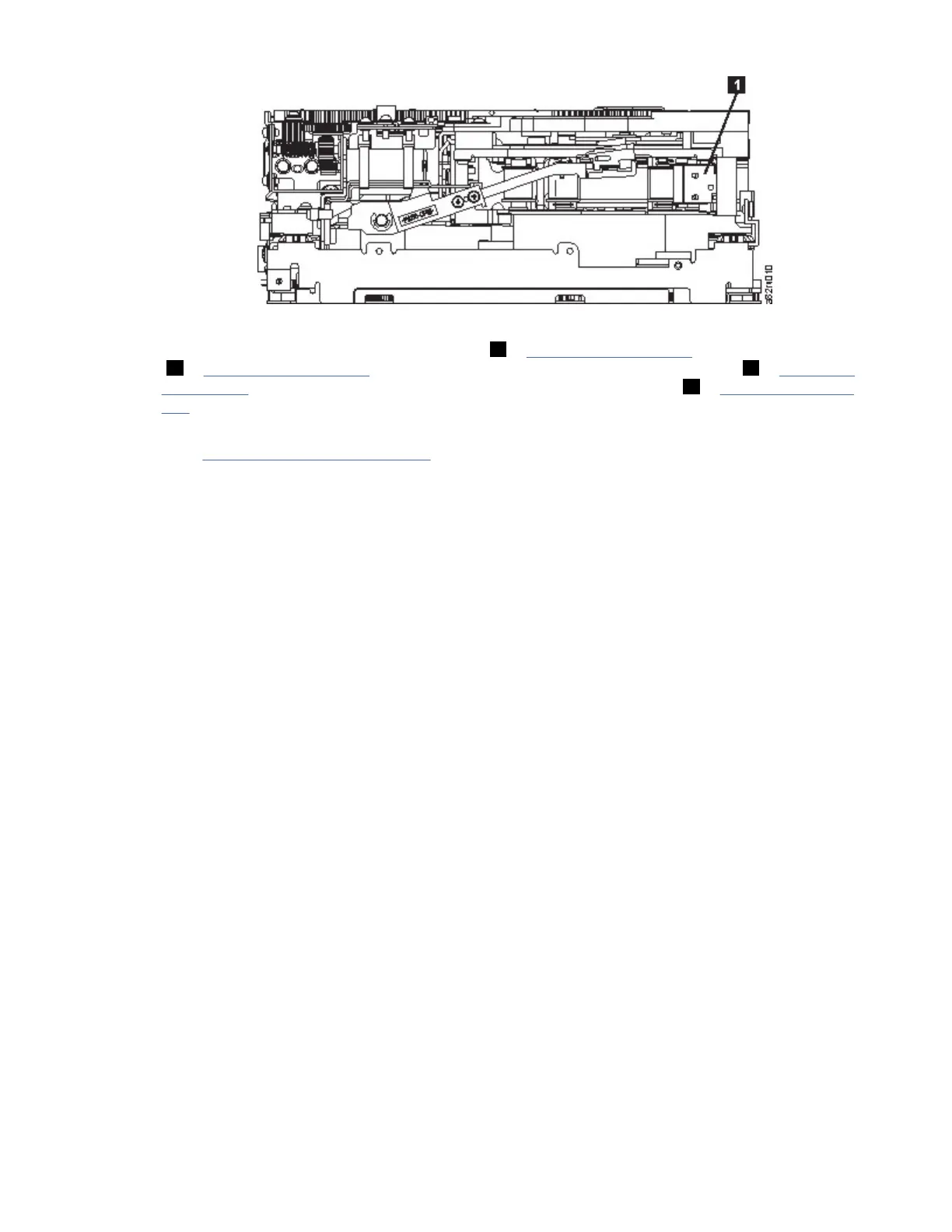

Figure 128. Leader Block Assembly (LBA)

10. Continue rotating the loader motor worm gear (1 in Figure 127 on page 241) until the rotator stub

(3 in Figure 127 on page 241) is positioned as shown. Notice that the rotator stub (3 in Figure 127

on page 241) is nearly aligned with the cartridge loader tray guide bearing (2 in Figure 127 on page

241).

11. Remove the cartridge from the cartridge loader tray.

12. Go to “Ending procedure” on page 245.

Half height drive: No apparent failure or damage to tape

About this task

Note: If the cartridge in the drive is an INPUT tape that contains ACTIVE or 'ONLY COPY' data (there is no

backup), eject commands that are issued at the host fail to unload the tape, and power-cycling the drive

fails to eject the cartridge, make no further attempts to unload this tape. Call Technical Support and open

a PMR if one is not already open, to initiate the process of sending the drive with the loaded cartridge in

for recovery.

Procedure

1. Set the drive on its left side with the head and tape path facing up.
