7. Slide the lockbar on the flash device connector to the unlocked position and
pull the USB flash device out of the connector.
8. If you are instructed to return the hypervisor memory key, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Note: You must configure the server not to look for the hypervisor USB drive.
See “Configuring the server” on page 94 for information about disabling
hypervisor support.
To remove the system board on the 5U server model with hot-swap power
supplies, complete the following steps. For 4U server models with non-hot-swap
power supplies, please see the above sub-section.
USB embedded
hypervisor flash
device connector

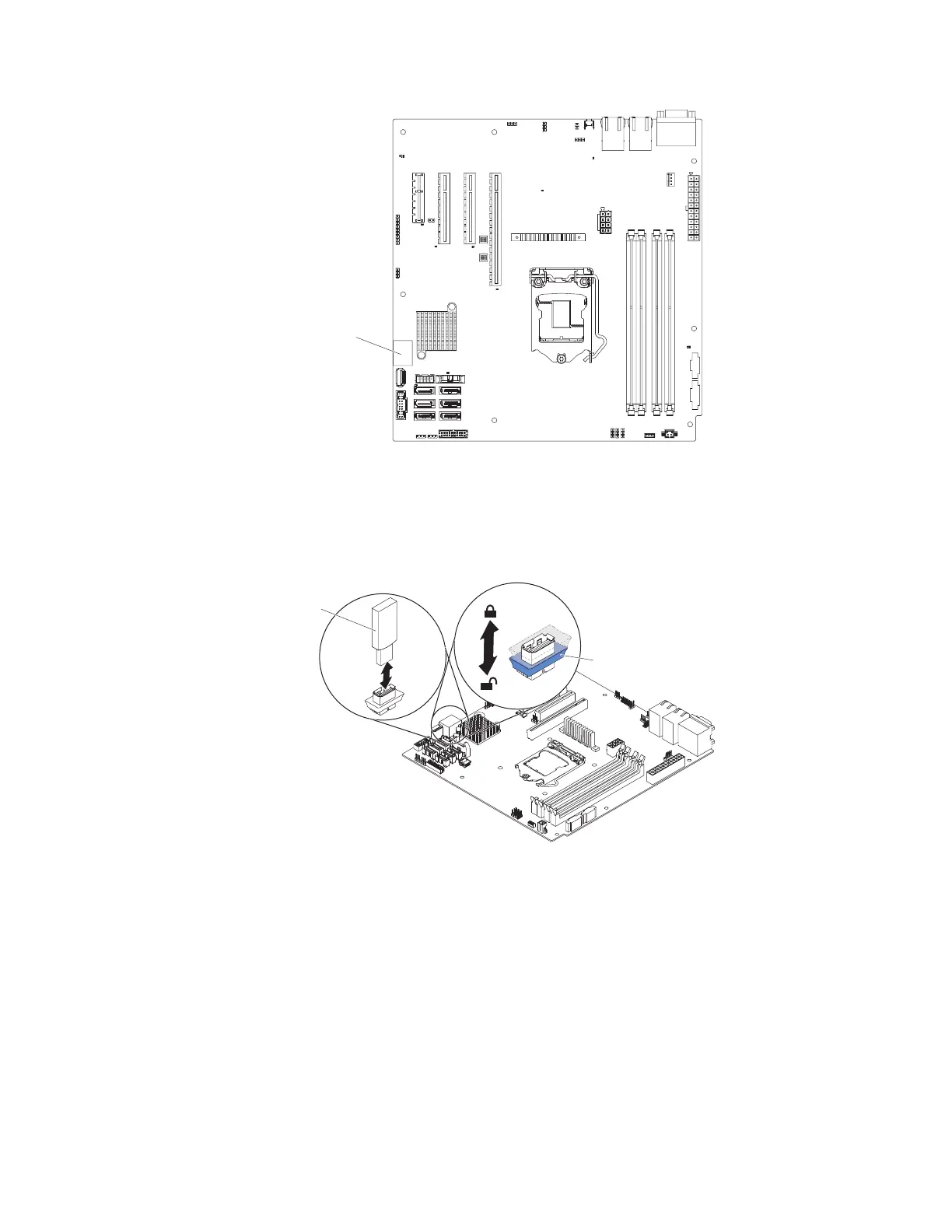

Figure 131. USB hypervisor flash device connector location on system board for 4U server
model with non-hot-swap power supplies
Lockbar
USB embedded
hypervisor
flash device
Figure 132. USB hypervisor flash device removal from system board for 4U server model
with non-hot-swap power supplies
228 System x3100 M5 Type 5457: Installation and Service Guide

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
