IBM x3100 M5 Type 5457 User Manual

7. Install the air baffle (see “Replacing the air baffle” on page 185).
8. Install the side cover (see “Removing the side cover” on page 38).
9. Stand the server back up in its vertical position.
10. Install bezel (see “Replacing the bezel” on page 188).
11. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
To install the front USB connector assembly on the 5U server model with hot-swap
power supplies, complete the following steps. For 4U server models with
non-hot-swap power supplies, please see the above sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Carefully insert the front USB cable through the opening in the front of the
chassis.
3. Squeeze the spring clips on the sides of the front USB connector assembly and
insert the assembly into the housing through the back of the housing.
USB connector cable

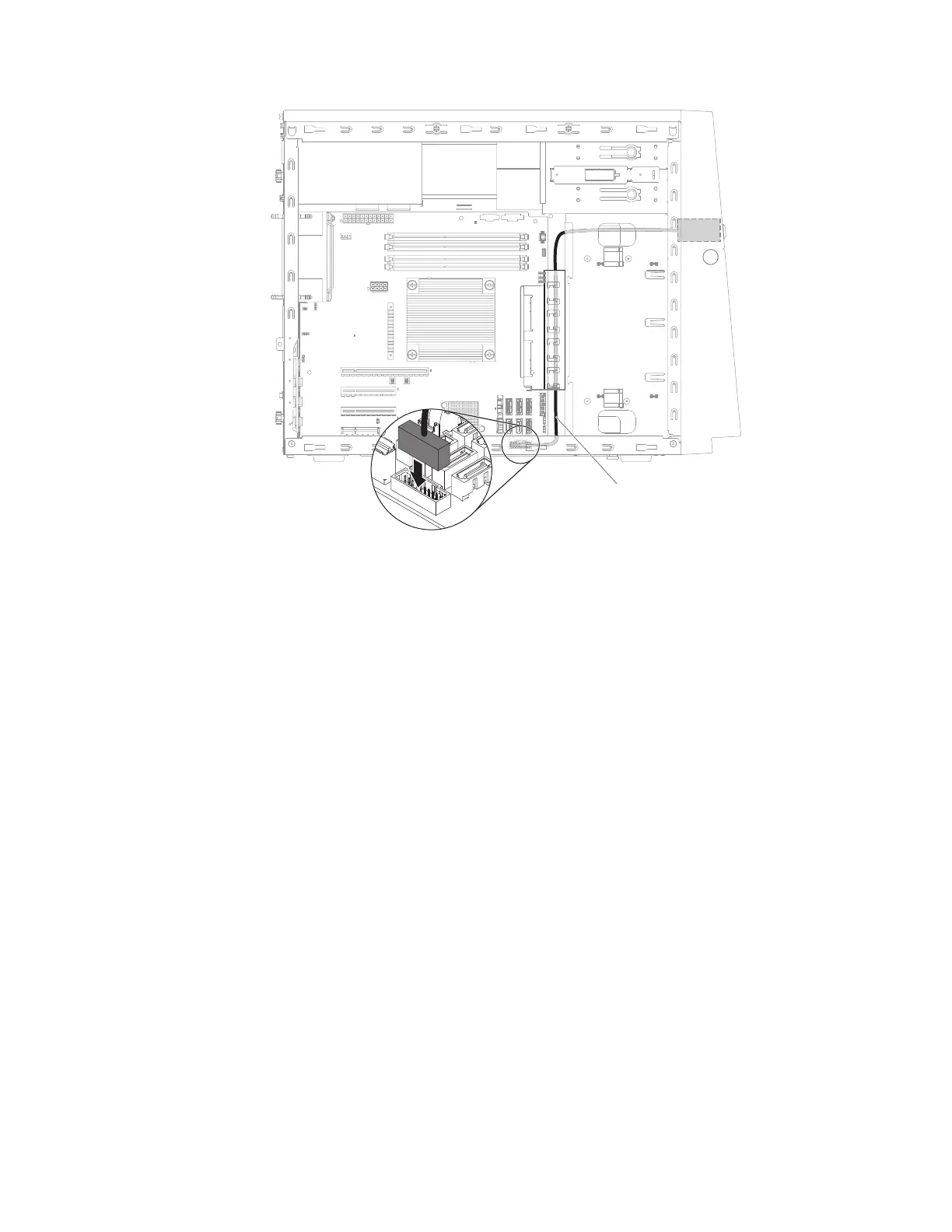

Figure 169. Front USB cable installation for 4U server model with non-hot-swap power
supplies
Chapter 6. Removing and replacing components 255

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
