5. Gently push the system board by the side nearest to the fan cage to insert the
external input/output connectors into their respective holes in the chassis.
Attention: When inserting the system board external input/output
connectors into their respective holes in the chassis, make sure the EMC
springs are not inserted into the holes. Inserting the EMC springs into the
holes in the chassis could damage the EMC springs.
Standoffs

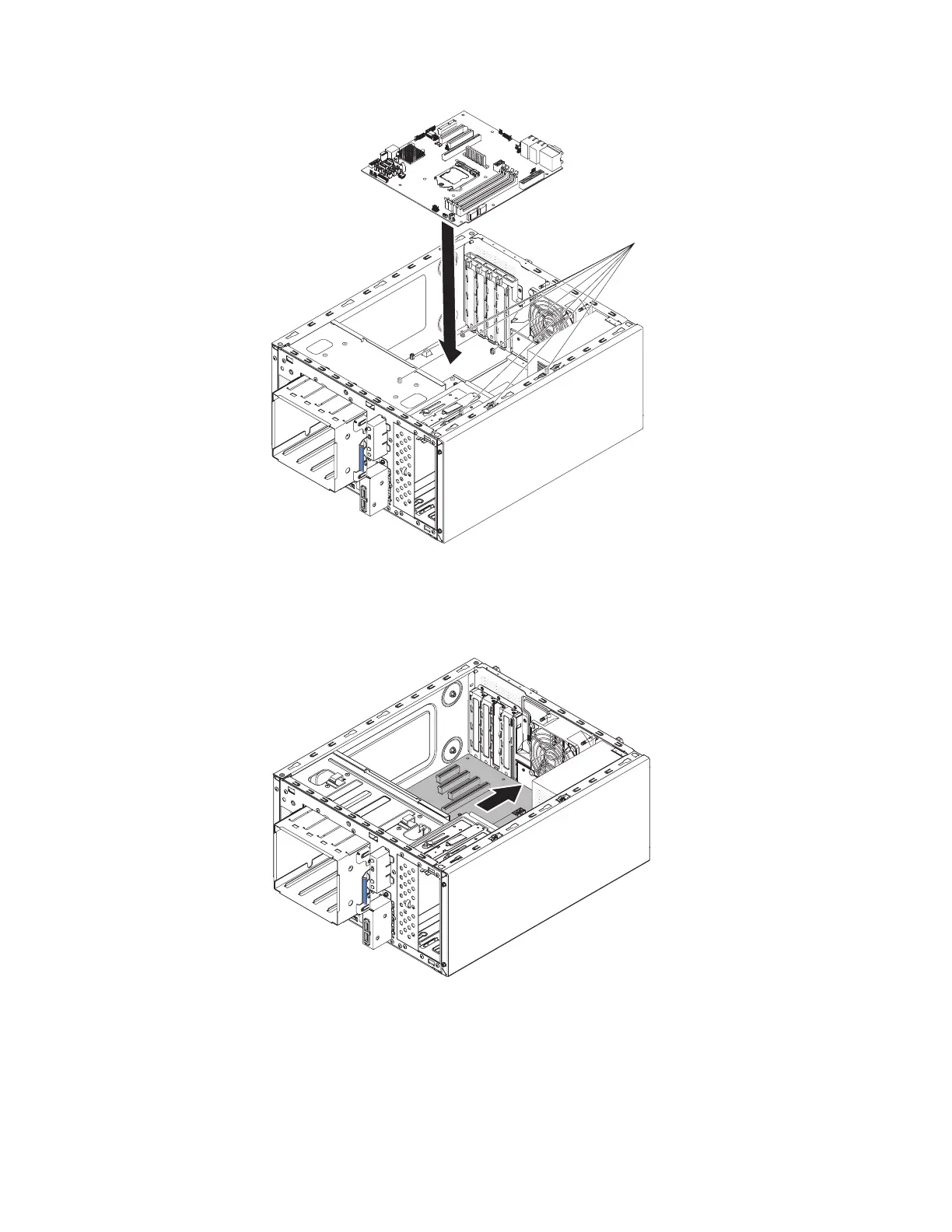

Figure 239. System board installation for 4U server model with non-hot-swap power supplies
Figure 240. Pushing external input/output connectors into chassis for 4U server model with
non-hot-swap power supplies
Chapter 6. Removing and replacing components 319
