6. Align the holes (seven in total) on the system board with the respective

standoffs on the chassis.

7. Install the seven screws that secure the system board to the chassis.

EMC spring

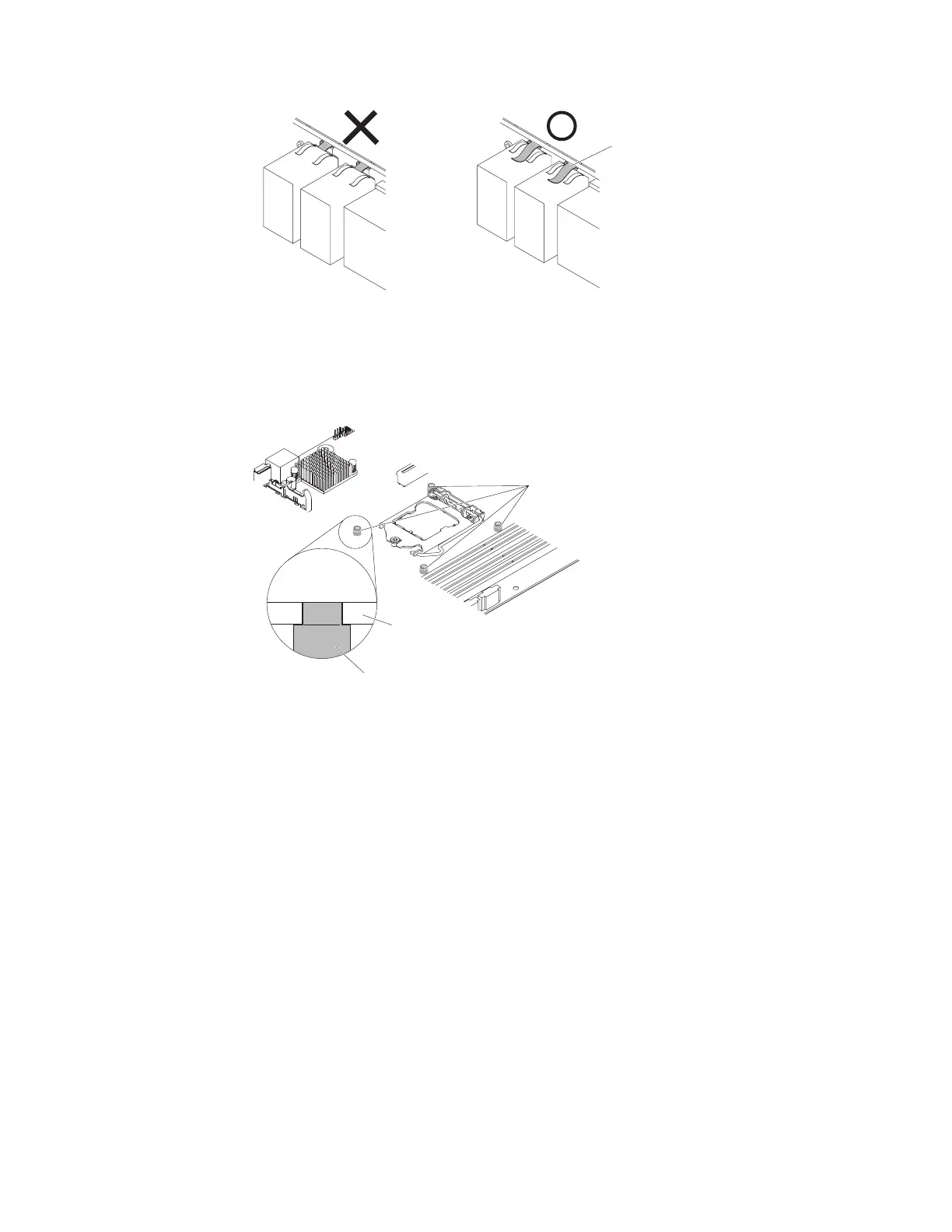

Figure 241. How to correctly insert EMC springs

System board

Standoff

Standoffs

Figure 242. System board alignment with respective standoffs on chassis for 4U server

model with non-hot-swap power supplies

320 System x3100 M5 Type 5457: Installation and Service Guide
