IBM x3100 M5 Type 5457 User Manual

Attention: When inserting the system board external input/output
connectors into their respective holes in the chassis, make sure the EMC
springs are not inserted into the holes. Inserting the EMC springs into the
holes in the chassis could damage the EMC springs.
5. Align the holes (seven in total) on the system board with the respective
standoffs on the chassis.

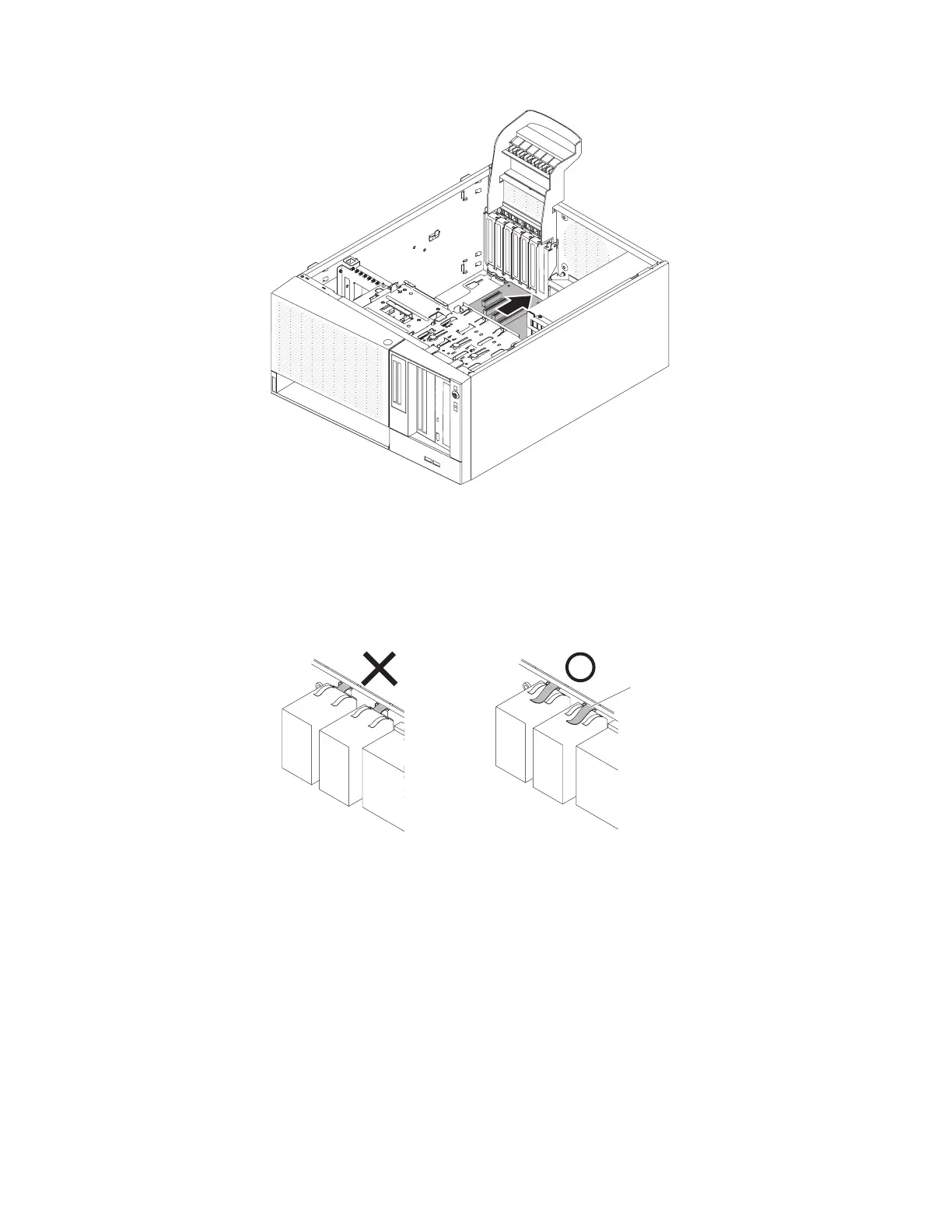

Figure 245. Pushing external input/output connectors into chassis for 5U server model with
hot-swap power supplies
EMC spring
Figure 246. How to correctly insert EMC springs
Chapter 6. Removing and replacing components 323

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
