6. Install the seven screws that secure the system board to the chassis.

7. Install any of the following components that you removed from the system

board:

v Adapters (see “Replacing an adapter” on page 269).

v Battery (see “Replacing the system battery” on page 281).

System board

Standoff

Standoffs

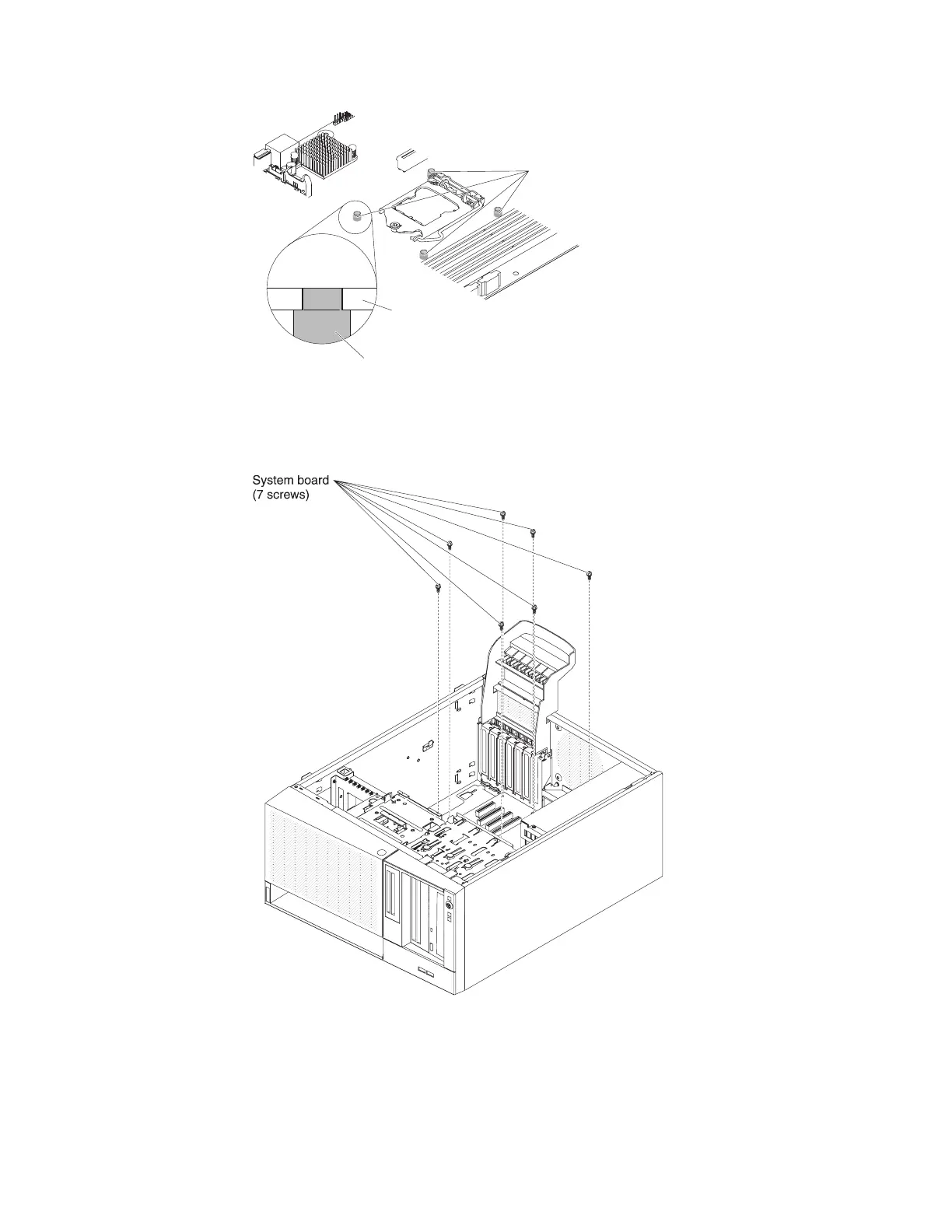

Figure 247. System board alignment with respective standoffs on chassis for 5U server

model with hot-swap power supplies

Figure 248. System board screw installation for 5U server model with hot-swap power

supplies

324 System x3100 M5 Type 5457: Installation and Service Guide
