Evolution X1 Satellite Router
X1 Outdoor Router
1.2 X1 Outdoor Router
The iDirect Evolution X1 Outdoor Satellite Router is a cost-effective remote bundle ideal for
large, narrowband networks for SCADA, femtocells or pipeline monitoring. The X1 Outdoor
Router features DVB-S2/ACM and TDMA, basic routing, VLAN functionality and Quality of
Service (QoS), and is embedded in a IP67 weatherproof enclosure enabling an extended
temperature range, and passive cooling.
The X1 Outdoor Router is shown in Figure 1-2. The router specifications are described in
Section 3.2, X1 Outdoor Router Specifications on page 13. The Router and Power Module front
panels and Router LED are described in Section 4.2, X1 Outdoor Router Interfaces on page 20.

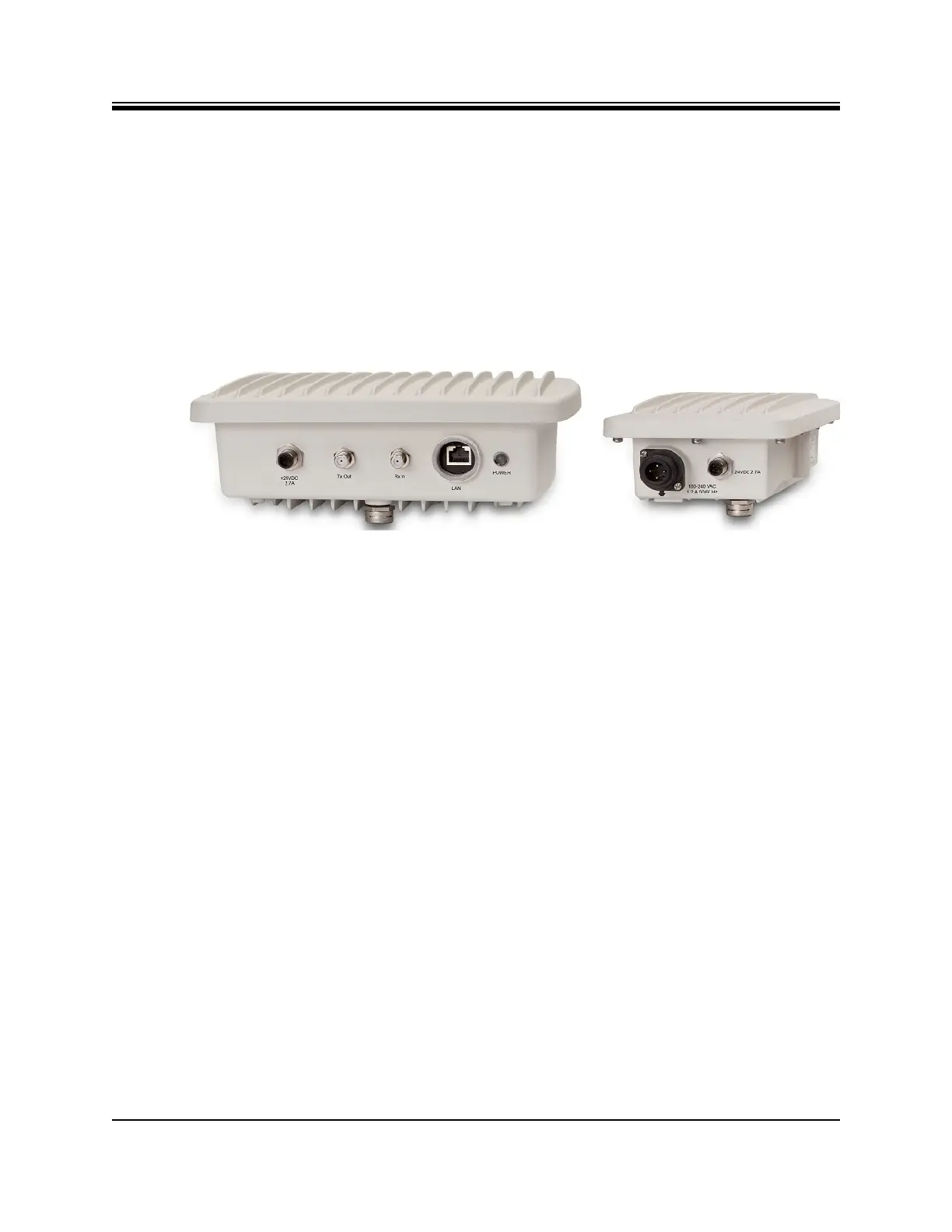

Figure 1-2. X1 Outdoor Router (Left), and the Power Module (Right)
