Installation, Support, and Maintenance Guide 65
Evolution X1 Satellite Router
Appendix C Ethernet and
Console RJ45 Pinouts
This appendix describes the Ethernet and console cable pinout details and has these sections:
• Section C.1, Ethernet Port Pinouts on page 65
• Section C.2, Console Port Pinouts and RJ-45-DB9 Female DTE Adapter Pinouts on page 66
C.1 Ethernet Port Pinouts

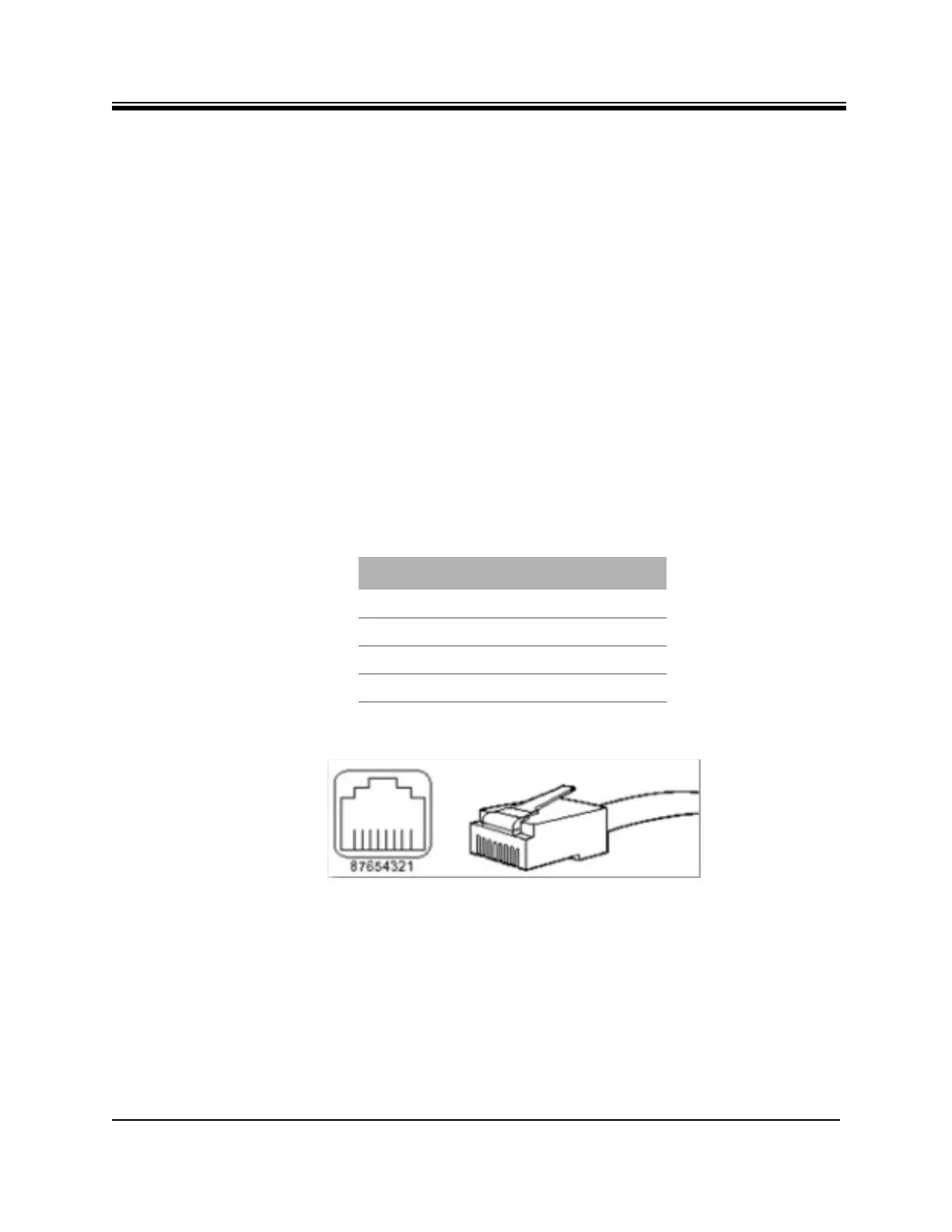

Figure C-1. RJ-45 Cable Connectors, Plug and Receptacle
The LAN A port is normally assigned to the WAN (towards the VPN). Its IP address is the next
hop for the VPN.
The 10 Base-T/100 Base-T Fast Ethernet ports support IEEE 802.3 and IEEE 802.3u
specifications for the 10-Mbps and 100-Mbps transmission over Unshielded Twisted-Pair (UTP)
cables. Use Category-3 or Category-5 UTP cable with RJ-45 connectors to attach the 10/100
Base-T Ethernet LAN A port on the Evolution X1 Satellite Router chassis to the customer
provided LAN Hub or switch.
Table C-1. Ethernet Port Pinouts
RJ-45 Pin Description
1
Tx+
2
Tx-
3
Rx+
6
Rx-
