62 Installation, Support, and Maintenance Guide
Evolution X1 Satellite Router
To terminate the cables with F-Type connectors:
1. Cut off each end of the coax cable squarely, using the proper cable cutter as shown in
Figure B-1.

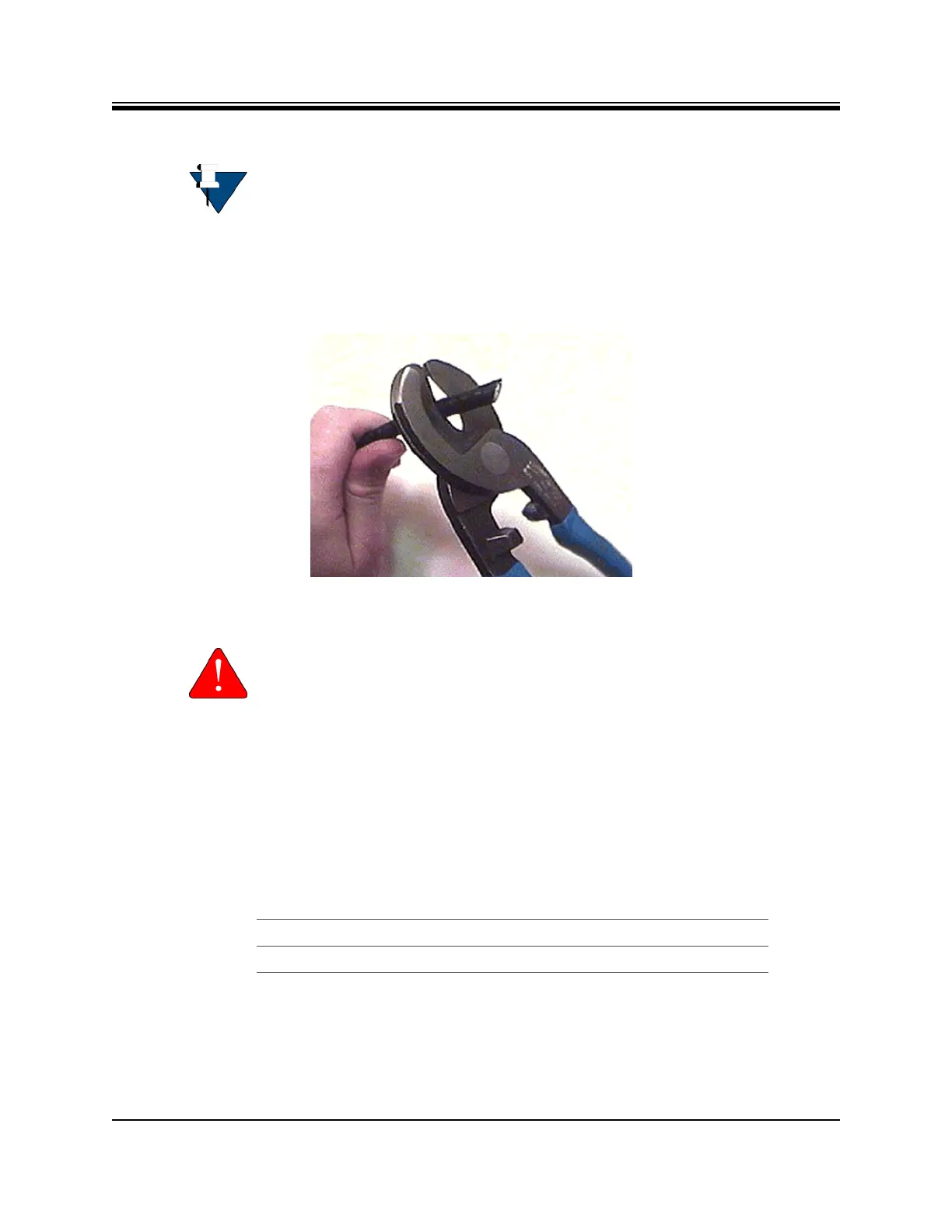

Figure B-1. Coax Cable Cutting Technique
2. Remove the jacket material and foam insulation according to the length defined under
Length A in Table B-1. For RG-6, use a two-step Coax Stripper such as the LC-CST 1257
from Paladin Tools.
3. Remove any foil in the braid as shown in Figure B-2.
NOTE: Appendix A, Tools Needed on page 57 lists all of the recommended tools
for terminating coax cables.
WARNING: Wear protective eye wear while cutting cables and terminating
connectors.
The center conductor must be straight and cylindrical without any burrs. Failure
to do so can damage the satellite router, BUC, and/or LNB input connector.
Table B-1. Coax Trim Dimensions
Length A
(inch (mm))
Length B
(inch (mm))
Length C
(inch (mm))
RG-6 5/8 (15.9) 1/4 (6.4) 3/8 (9.5)
RG-11 13/32 (10.3) 3/32 (2.4) 13/32 (10.3)
