X1 Outdoor Router Mounting
6.5.3 Attaching the Mounting Plate to the Router
Attach the mounting plate and spacer using the four flat washers, spring washers, and M6x20
screws as shown in Figure 6-3 (horizontal and vertical mounting options are shown).

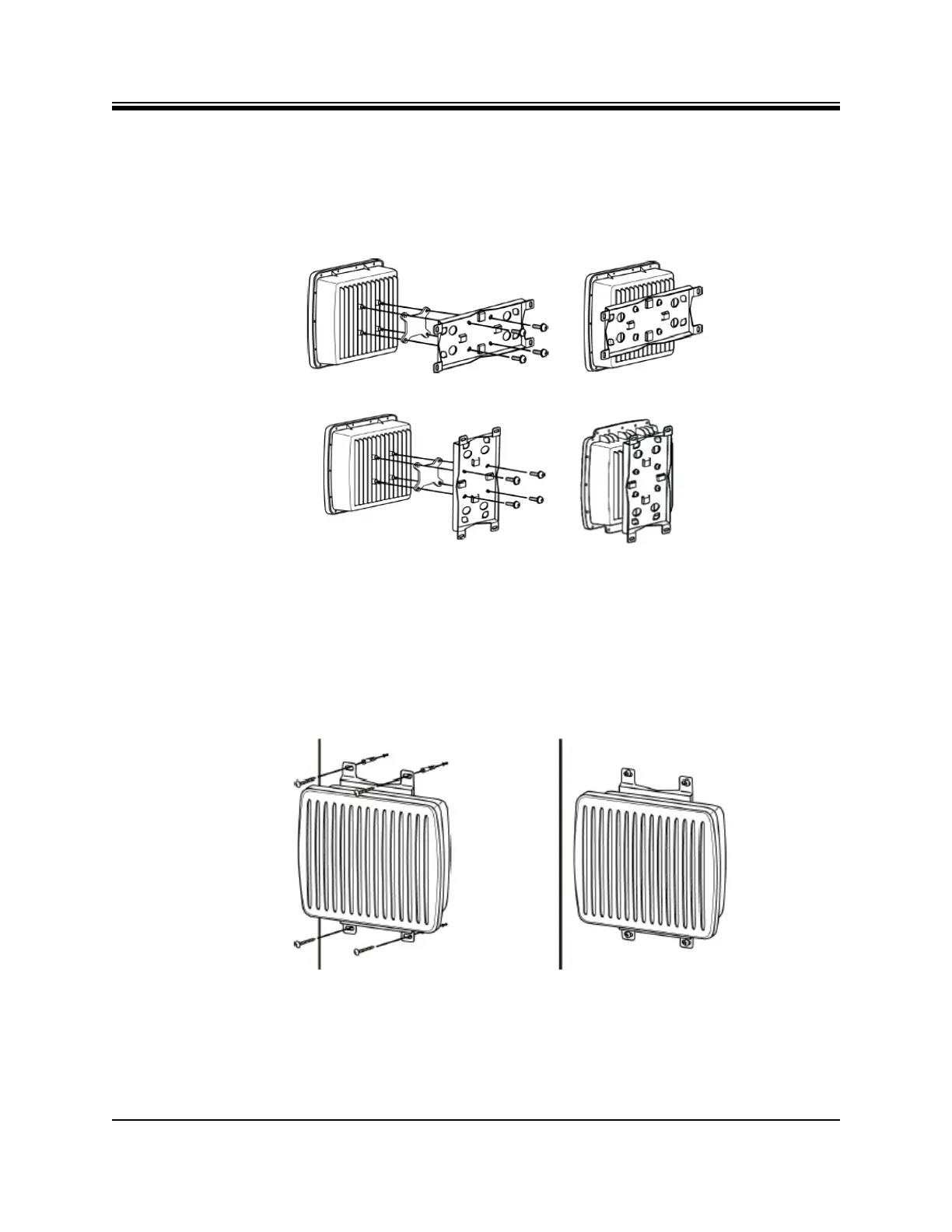

Figure 6-3. Attaching the Mounting Plate
6.5.3.1 Router Wall Mount
After attaching the mounting plate to the router, mount the X1 Outdoor Router to a wall,
mount the assembly to the wall using the four wood screws and wood/gyprock plugs as shown
in Figure 6-4.
Figure 6-4. X1 Outdoor Router Wall Mount
