64 Installation, Support, and Maintenance Guide
Evolution X1 Satellite Router

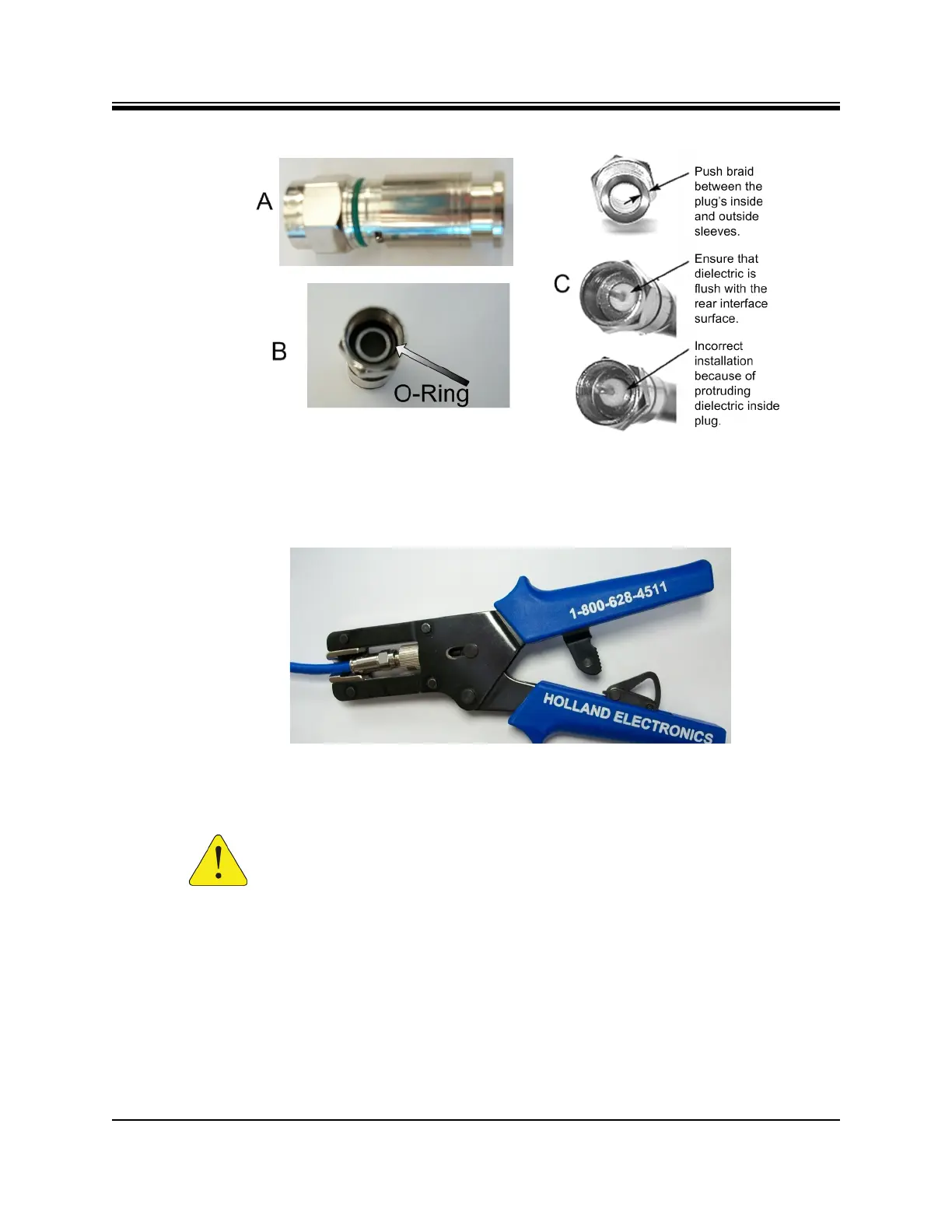

Figure B-4. Attaching the Compression fitting F-type Connector
10. Finish connecting the cable to the connector with the compression tool connector, such as
Holland Compression Tool 1855 as shown inFigure B-5.
Figure B-5. Compression fitting F-Type Weatherproof Plugs and Tool
11. Inspect and ensure that the copper center conductor only protrudes 1/8 inch (3.2 mm)
nominally beyond the rim of the F-connector. Trim if necessary.
CAUTION: The center conductor length must be a minimum of 1/16 inch (1.6 mm)
to a maximum of 1/8 inch (3.2 mm) protrusion beyond the rim of the F type
connector. It must be straight and cylindrical without any burrs at the end. Failure
to follow this technique could result in damage to the satellite router, BUC, LNB
connector and/or possible intermittent service.
