AFL-HM55 Series Panel PC
Page 90

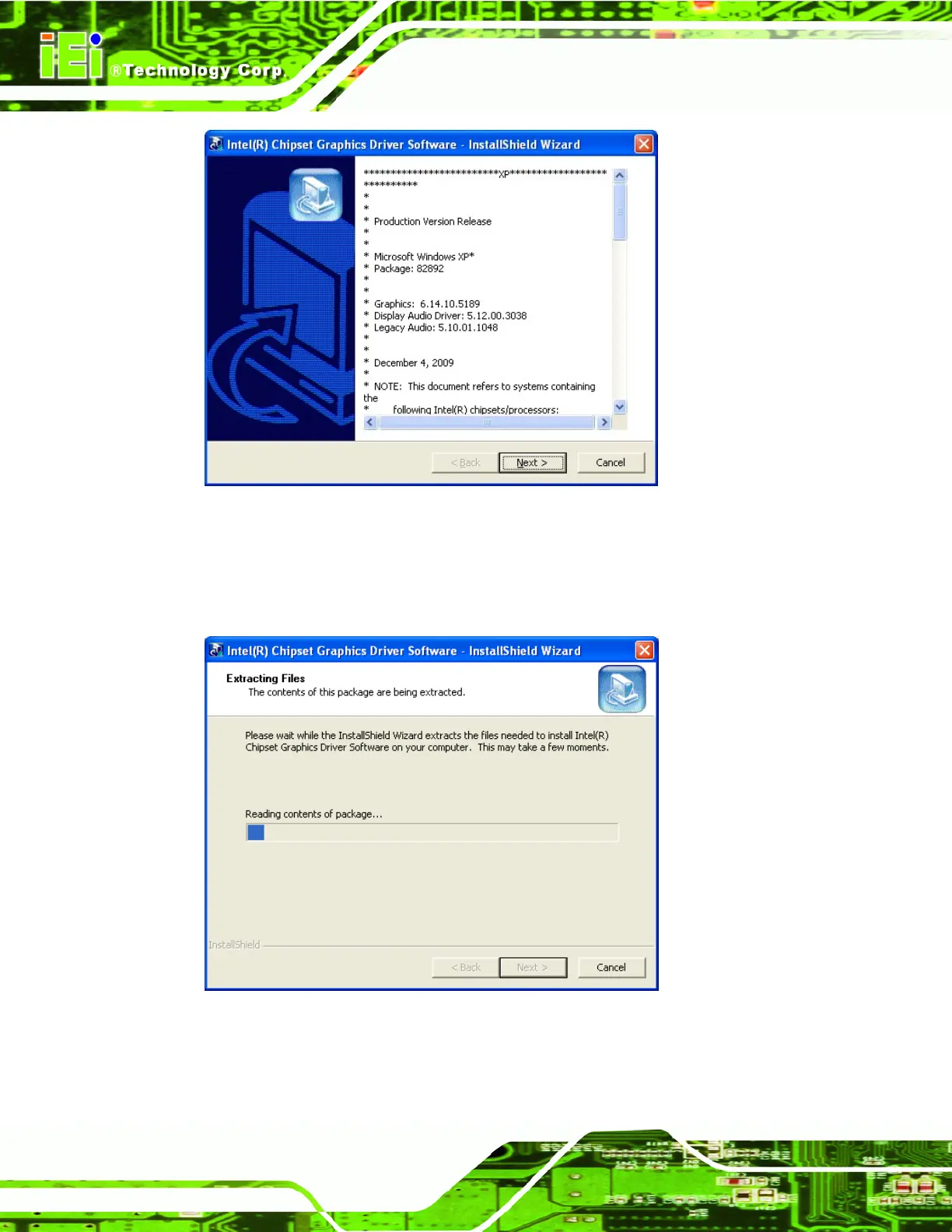

Figure 6-8: VGA Driver Readme File
The installation files are e
xtracted as shown in
Figure 6-9
.
Click
N
EXT
to continue.
Figure 6-9: VGA Driver Setup File Extraction Scre
en
The
W
elcome Screen
in
Figure 6-10
ap
pears.
101
103
