IEI Technology AFL-HM55 Series User Manual

AFL-HM55 Series Panel PC
Page 55

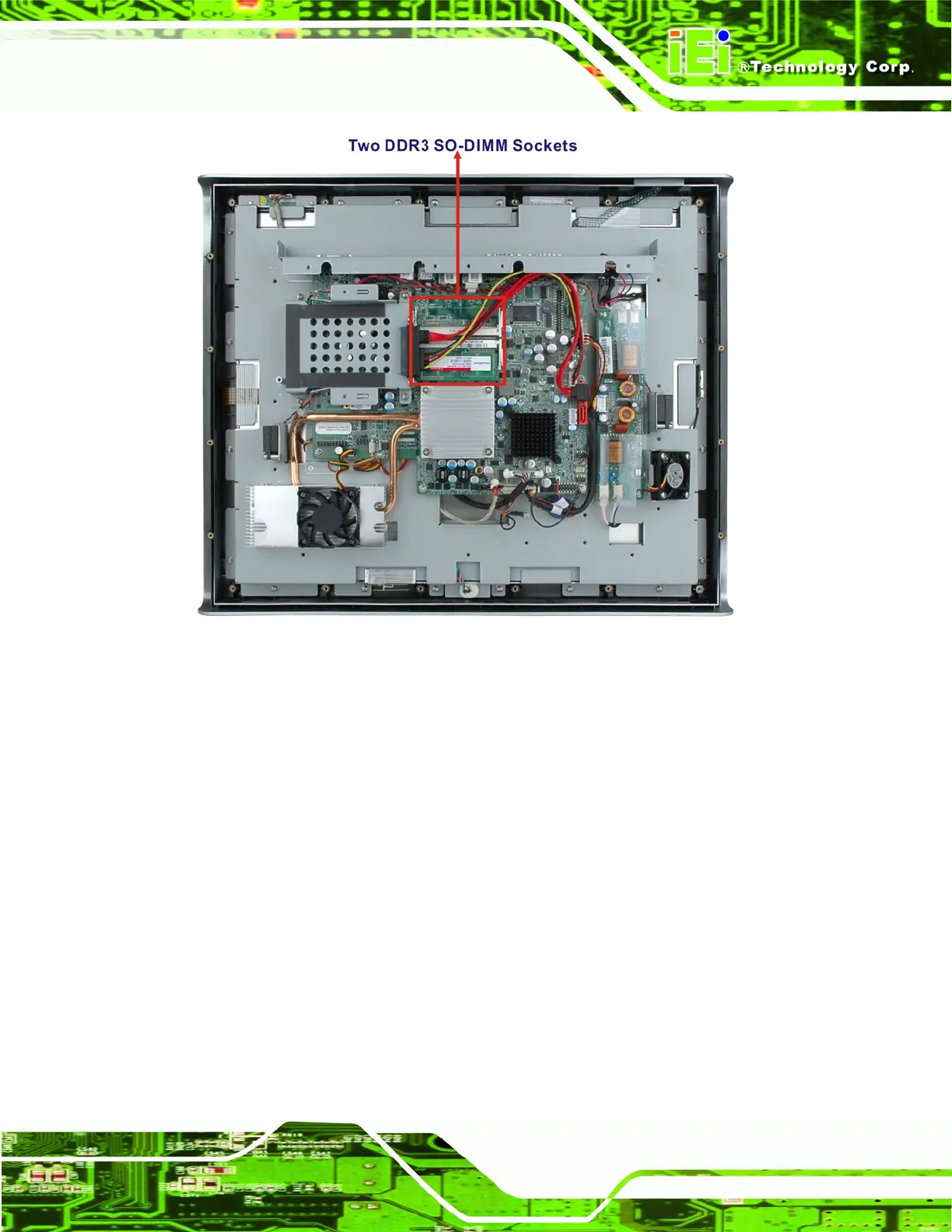

Figure 4-2: SO-DIMM Socket Location
Remove the DDR memory module by pulling both the spring retainer clips outward from
the socket.
Grasp the DDR memory module by the edges and carefully pull it out of the socket.
Install the new DDR memory module by pushing it into the socket at an angle (Figure
4-3).
Gently pull the spri
ng retainer clips of the SO-DIMM socket out and push the rear of the
DDR memory module down (Figure 4-3).
Rele
ase the spring retainer clips on the SO-DIMM socket. They clip into place and secure
the DDR memory module in the socket.
