Table 3-6: COM3 TX Function Select Jumper Settings
The COM3 TX Function Select jumper location is shown in Figure 3-9 below.

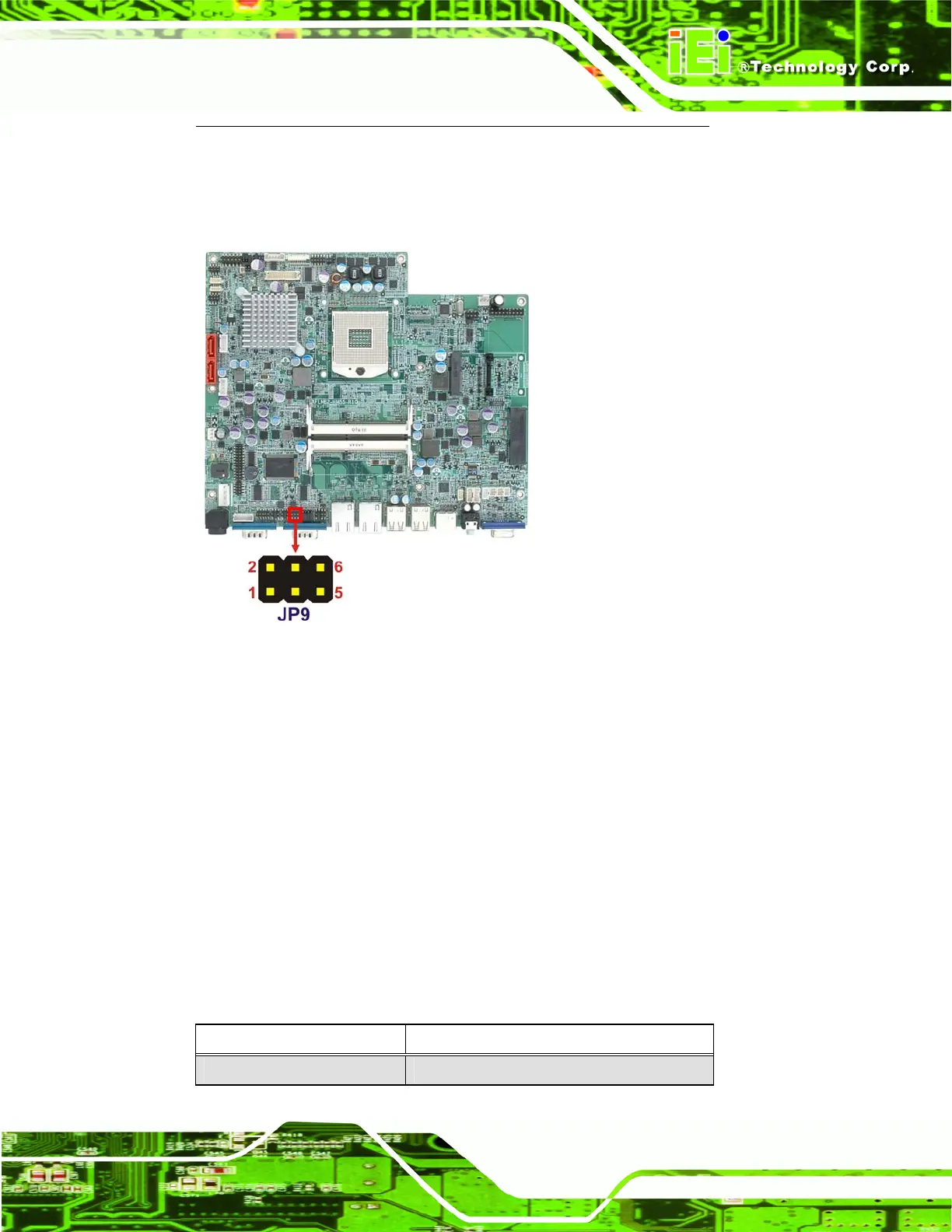

Figure 3-9: COM3 TX Function Select Jumper Location
3.9.6 COM3 RS-232/422/485 Jumper
Jumper Label:
JP10
Jumper Type:
12-pin header (four 3-pin headers combined)
Jumper Settings:
See Table 3-7
Jumper Loc
ation:
See Figure 3-10
The
COM3 RS-232/422/485 Serial Port Select jumper sets the communication protocol
used by the second serial communications port (COM3) as RS-232, RS-422 or RS-485.
The COM3 RS-232/422/485 Serial Port Select settings are shown in Table 3-7.
JP10 Description
Short 1-2 RS-232
