AFL-HM55 Series Panel PC
Page 104
The

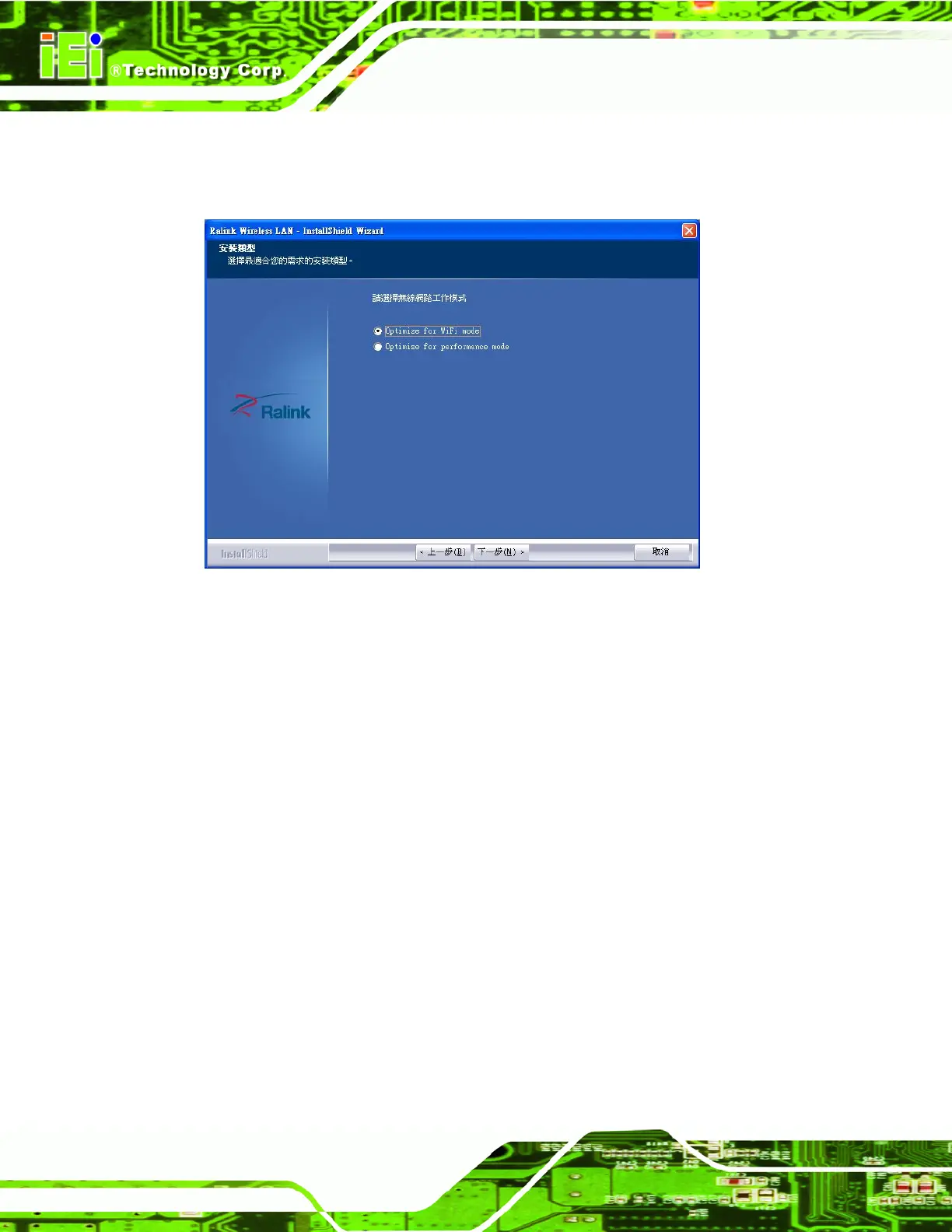

Wireless Mode Options
window in
Figure 6-32
appe
ars.
Click
N
EXT
in
Figure 6-32
.
Figure 6-32: Wireless Mode Select
Window
Click
I
NST
ALL
in
Figure 6-33
to start to install the driver
.
115
