AFL-HM55 Series Panel PC

Page 22

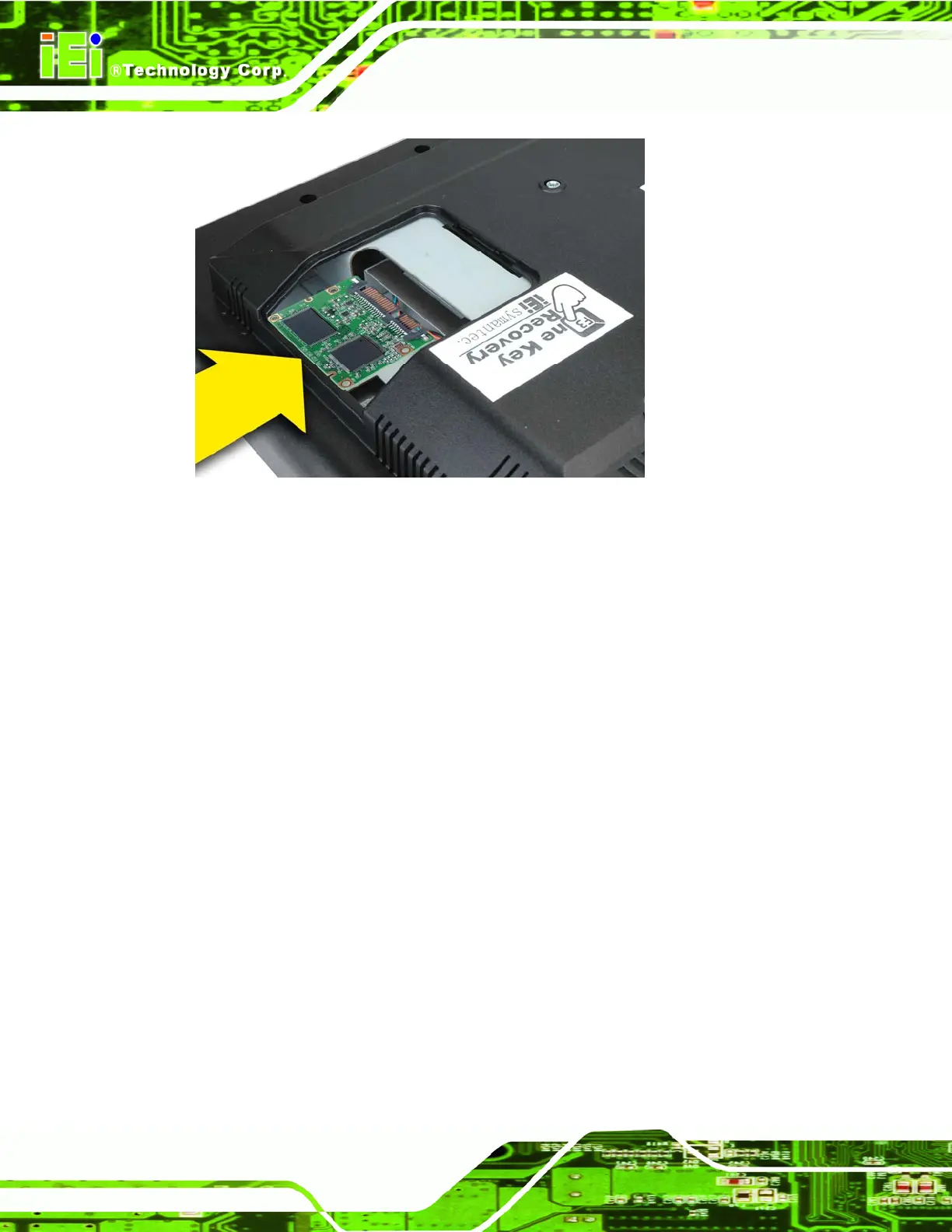

Figure 3-2: SATA DOM Card Installation

Replace the HDD cover and secure using one (1) retention screw.

3.6 Installing an HDD

To install an HDD, please follow the steps below:

Remove the HDD cover (See Section3.4).

Line up the

HDD with the SATA connector.

Insert the HDD into SATA connector until it is securely in place (Figure 3-3).
