3.11 Bottom Panel Connectors
3.11.1 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connector enables connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Locate the RJ-45 connectors on the bottom panel of the AFL-HM55 Series.
Align the connectors. Align the RJ-45 connector on the LAN cable with one of the RJ-45
connectors on the bottom panel of the AFL-HM55 Series. See Figure 3-25.

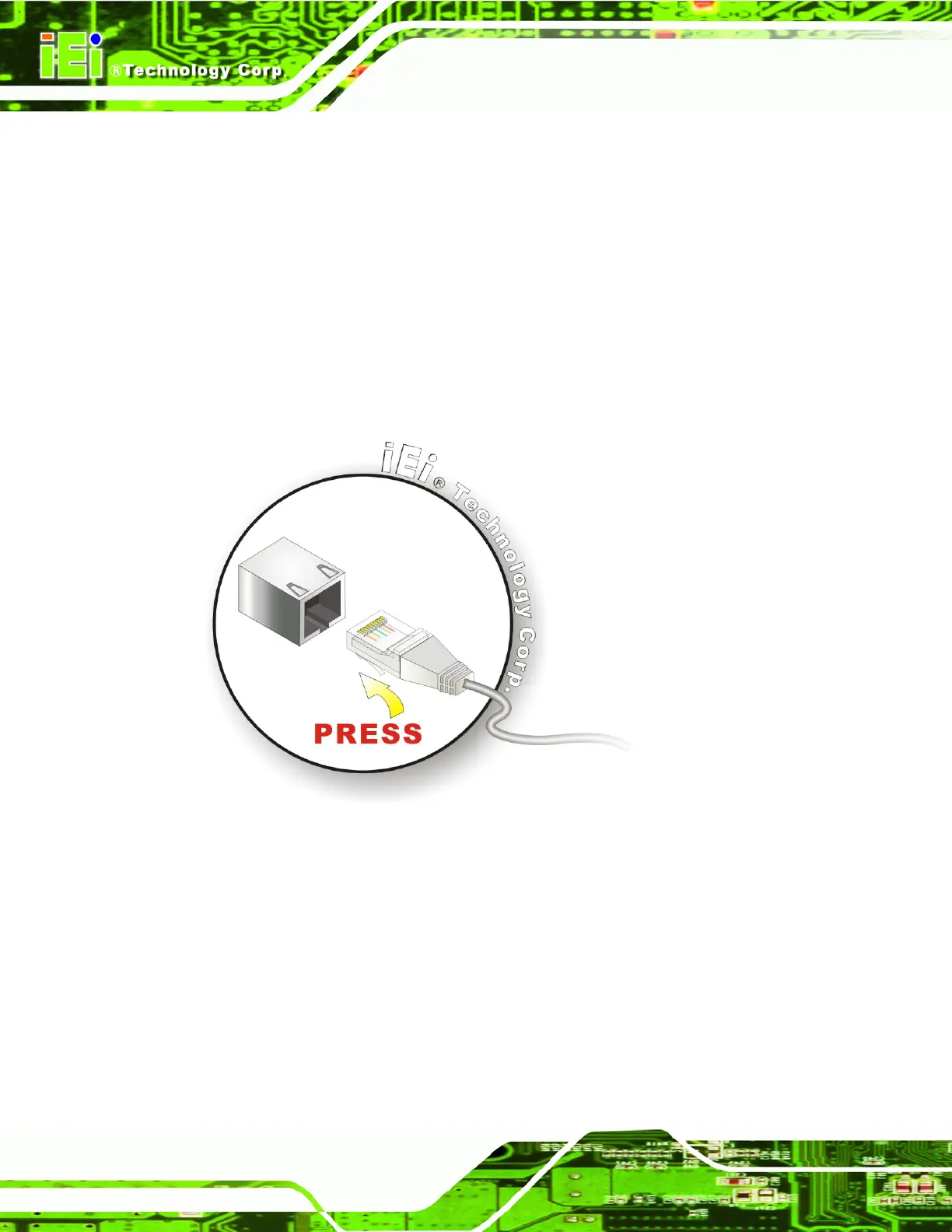

Figure 3-25: LAN Connection
Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45
connector into the onboard RJ-45 connector.
3.11.2 Serial Device Connection
The AFL-HM55 Series has two male DB-9 connectors on the bottom panel for serial
devices to be connected. Follow the steps below to connect a serial device to the
AFL-HM55 Series panel PC.
