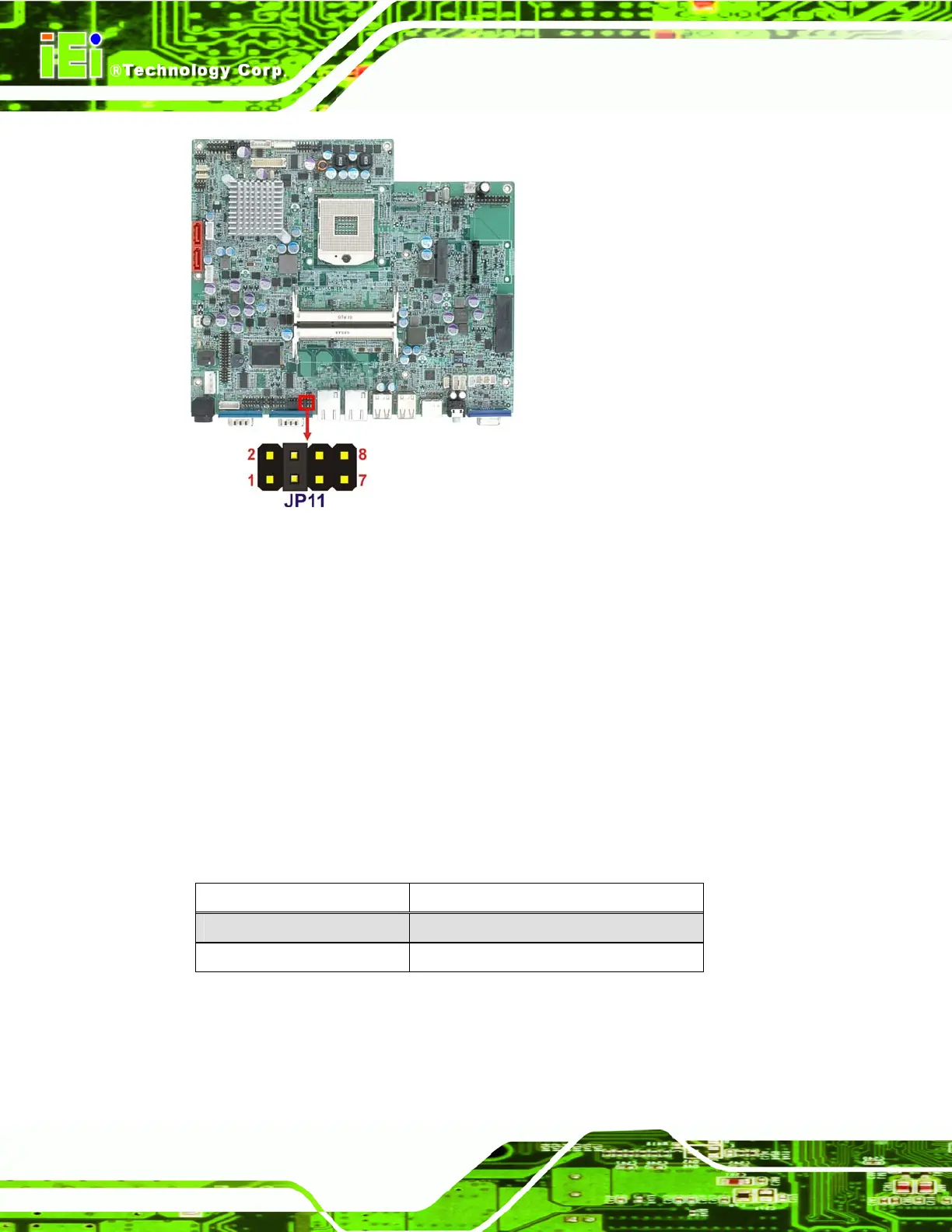

Figure 3-11: COM3 RX Function Select Jumper Location
3.9.8 ME Debug Mode Jumper
Jumper Label:
JP12
Jumper Type:
2-pin header
Jumper Settings:
See Table 3-11
Jumper Loc
ation:
See Figure 3-12
The ME Deb
ug Mode jumper allows ME firmware overwrite protection. The ME Debug
Mode jumper settings are shown in Table 3-11.
ME Debug Mode Description
Open Disabled
Closed Enabled
Table 3-11: ME Debug Mode Jumper Settings
The ME Debug Mode jumper location is shown in Figure 3-12.
