AFL-HM55 Series Panel PC
Page 43
Align the panel mounting bracket screw holes with the VESA mounting holes on the rear of
the panel PC.
Secure the two panel mounting brackets to the rear of the panel PC by inserting the four
retention screws into the VESA mounting holes (Figure 3-22
).
Insert the panel mounting clamps into the pre-formed holes along the two edges of the
panel mounting brackets (Figure 3-22
). There are a total of 4 panel mounting
clamps for AFL-HM55 Series.
Tighten the screws that pass through the panel mounting clamps until the plastic caps at
the front of all the screws are firmly secured to the panel
(Figure 3-22
).

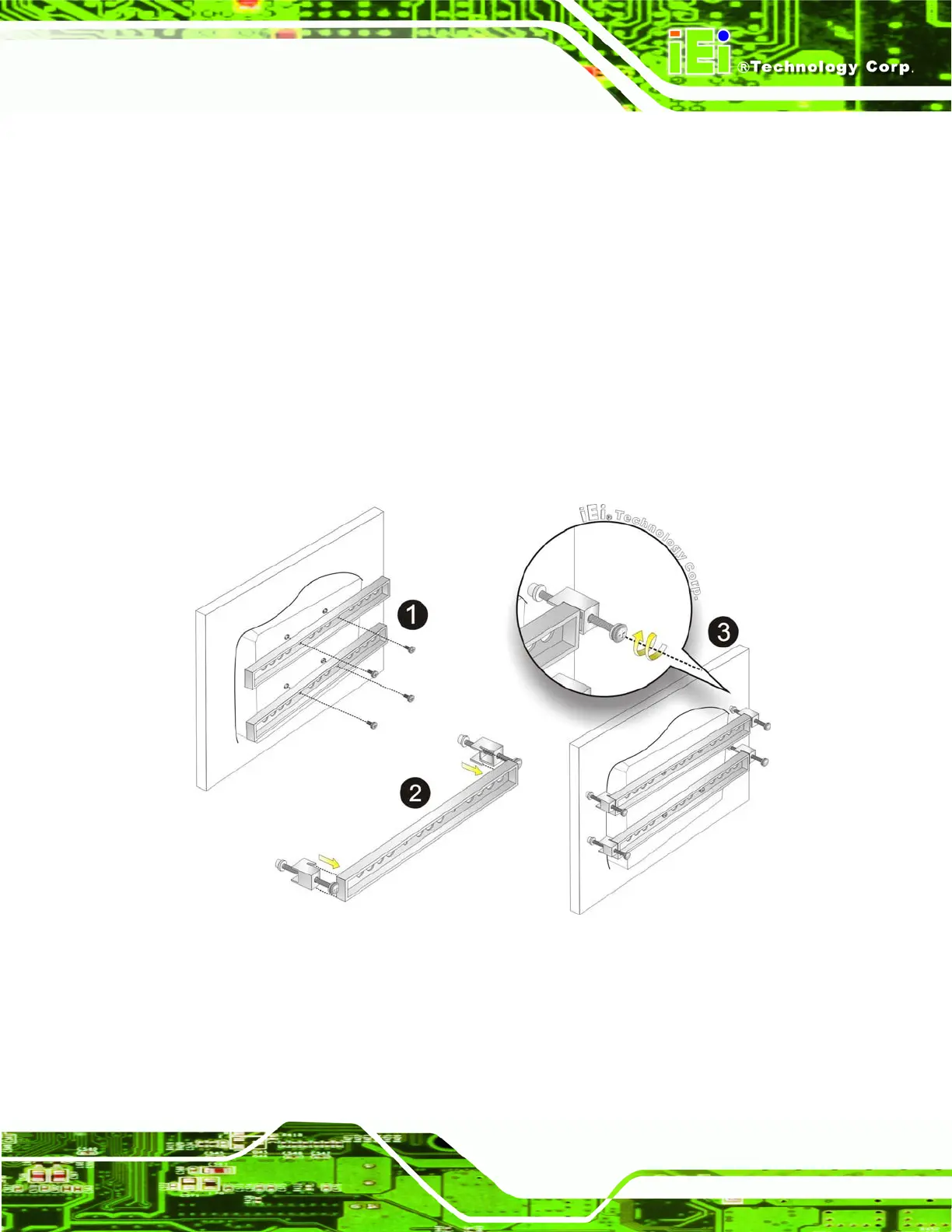

Figure 3-22: Panel Mounting
