IEI Technology AFL-HM55 Series User Manual

AFL-HM55 Series Panel PC
Page 48

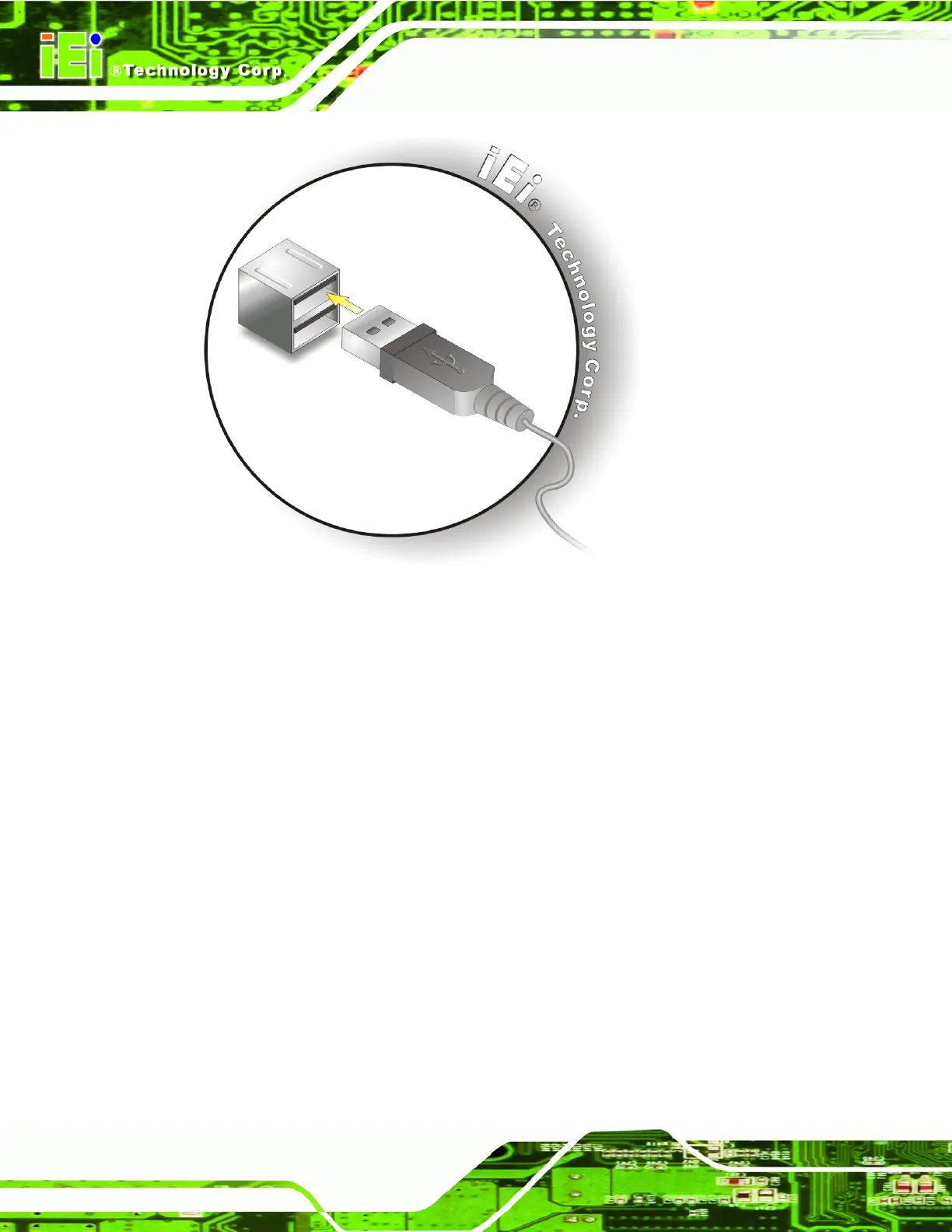

Figure 3-27: USB Device Connection
Insert the device connector. Once aligned, gently insert the USB device connector into
the onboard connector.
3.11.4 VGA Monitor Connection
The AFL-HM55 Series has a single female DB-15 connector on the external peripheral
interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect
a monitor to the AFL-HM55 Series, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Section 1.2.4.
Step 2: Align the VG
A connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
