IEI Technology AFL-HM55 Series User Manual

AFL-HM55 Series Panel PC
Page 5
1.2.3 Rear Panel
The rear panel provides access to retention screw holes that support the wall mounting.
Refer to Figure 1-3.

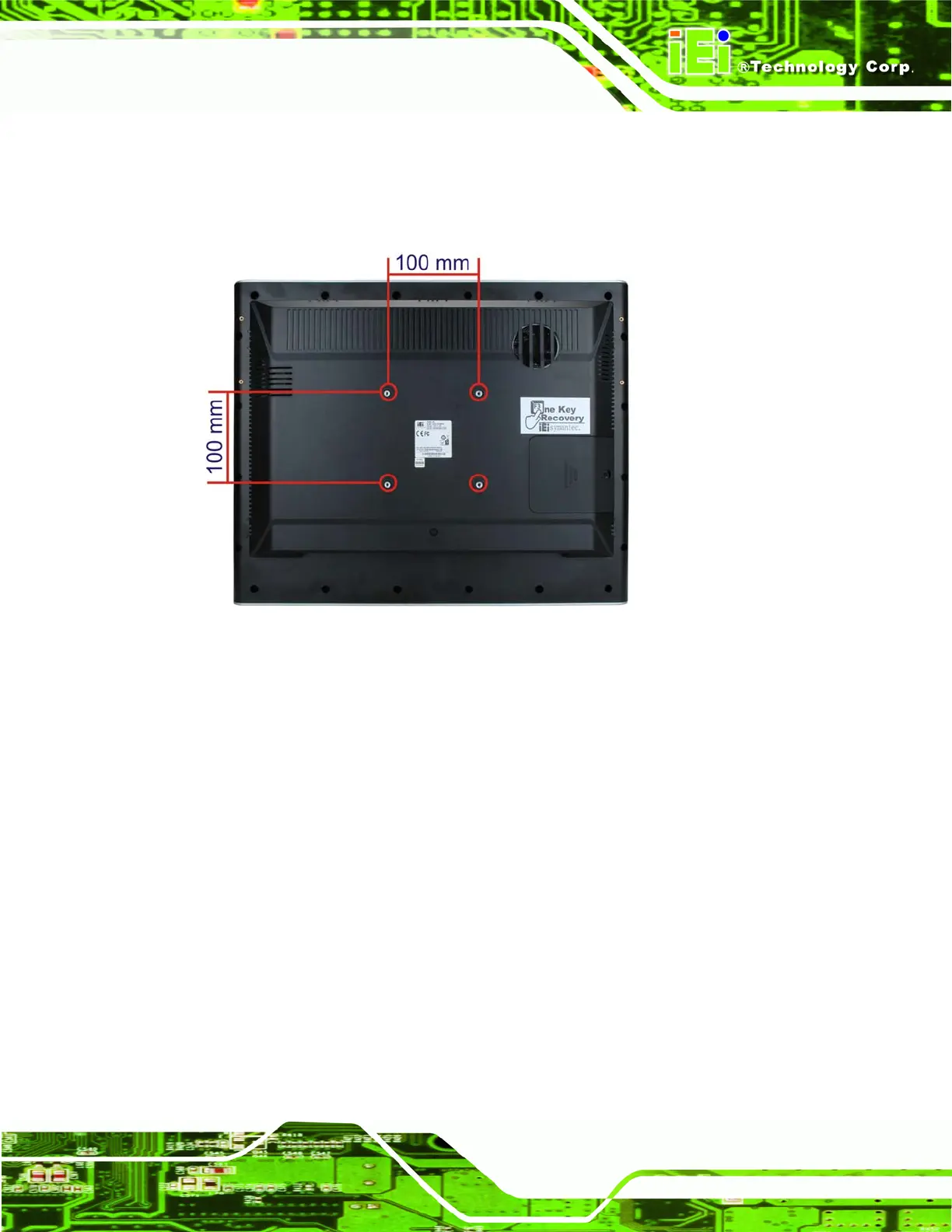

Figure 1-3: AFL-HM55 Series Rear View
1.2.4 I/O Interface Panel
The I/O interface panel located on the bottom of the AFL-HM55 Series has the following
I/O interface connectors:
 1 x Power switch
 1 x 12 V DC In connector
 1 x RS-232 connector
 1 x RS-232/422/485 connector
 2 x RJ-45 for Giga LAN connectors
 1 x AT/ATX power mode switch
 4 x USB 2.0 connectors
 1 x HDMI connector
 1 x Audio line-out connector
 1 x VGA connector
 1 x Reset button
