AFL-HM55 Series Panel PC
Page 91
Click
N
EXT
to continue.

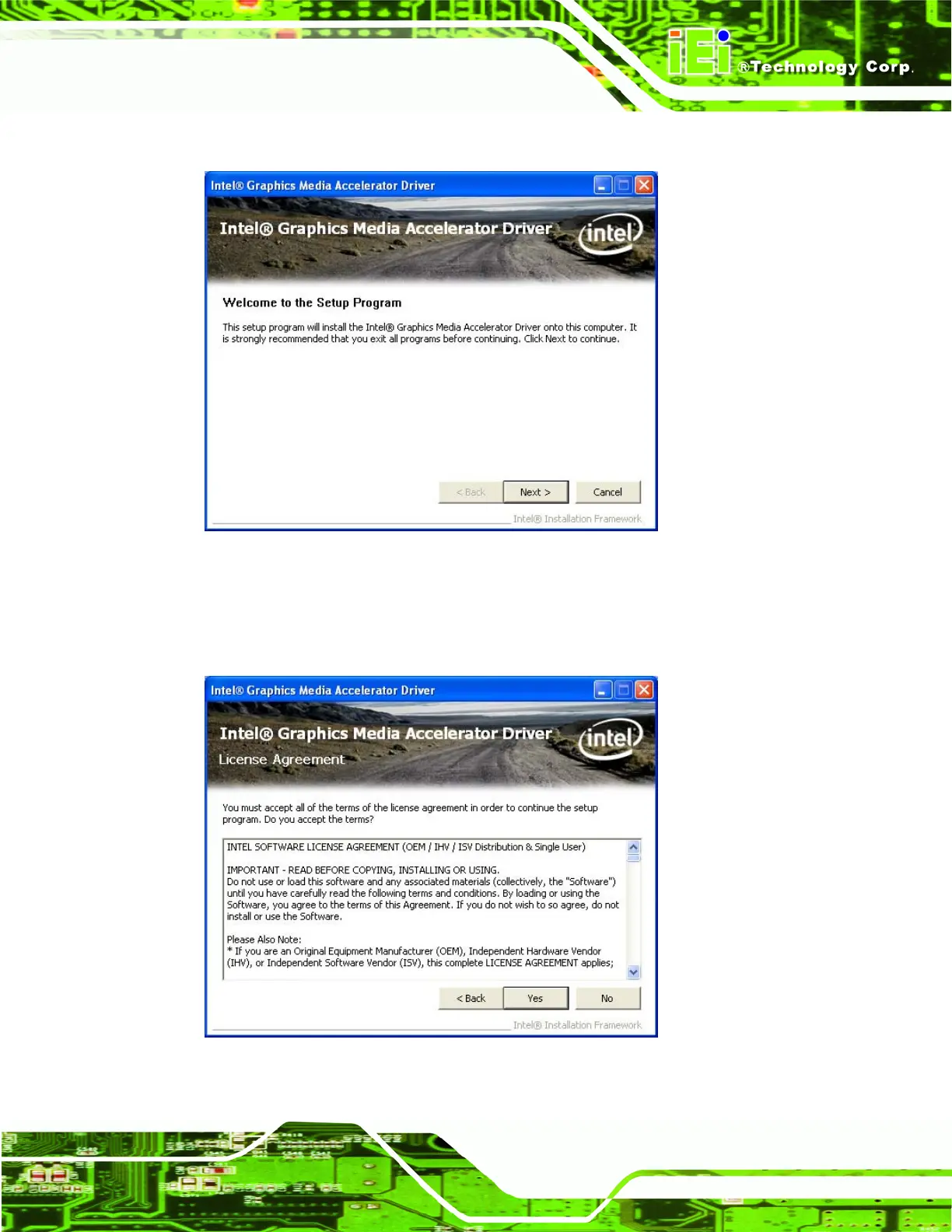

Figure 6-10: VGA Driver Welcome Screen
The
License
Agreement
in
Figure 6-1
1
appea
rs.
Click
Y
ES
to accept and continue.
Figure 6-11: VGA Driver License Agreement
