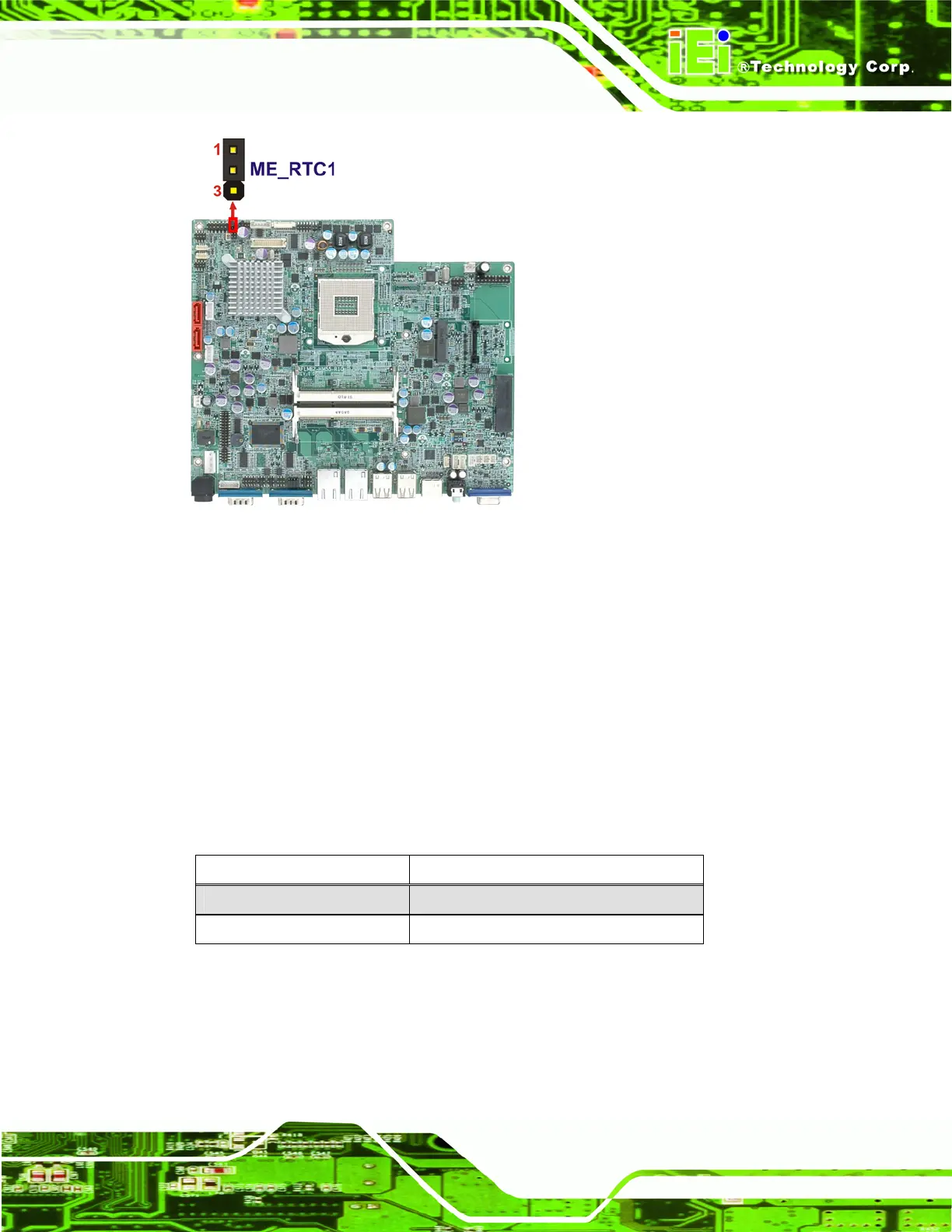

Figure 3-14: ME RTC Jumper Location

3.9.11 SPI Setting Jumper

Jumper Label:

J_SPI

Jumper Type:

3-pin header

Jumper Settings:

See Table 3-14

Jumper Loc

ation:

See Figure 3-15

The SPI jumper setting

s are shown in Table 3-14.

SPI setting Description

Short 1-2 Program SP10

Short 2-3 Program SPI1

Table 3-14: SPI Jumper Settings

The SPI jumper location is shown in Figure 3-15.
