AFL-HM55 Series Panel PC
Page 96
6.6 Audio Driver Installation
To install the Realtek High Definition (HD) Audio driver, please follow the steps below.
6.6.1 BIOS Setup
Enter the BIOS setup. To do this, reboot the system and press F2 during POST.
Go to the Southbridge Configuration menu. Set the Audio Controller option to [Azalia].
Press F10
to save the changes and exit the BIOS setup. The system reboots.
6.6.2 Driver Installation
To install the audio driver, please do the following.
Access the driver list shown in Figure 6-1. (See Secti
on 6.2)
Click Audio then double click on the folder which corresponds to your operating system.
Locate the install icon and double click on it.

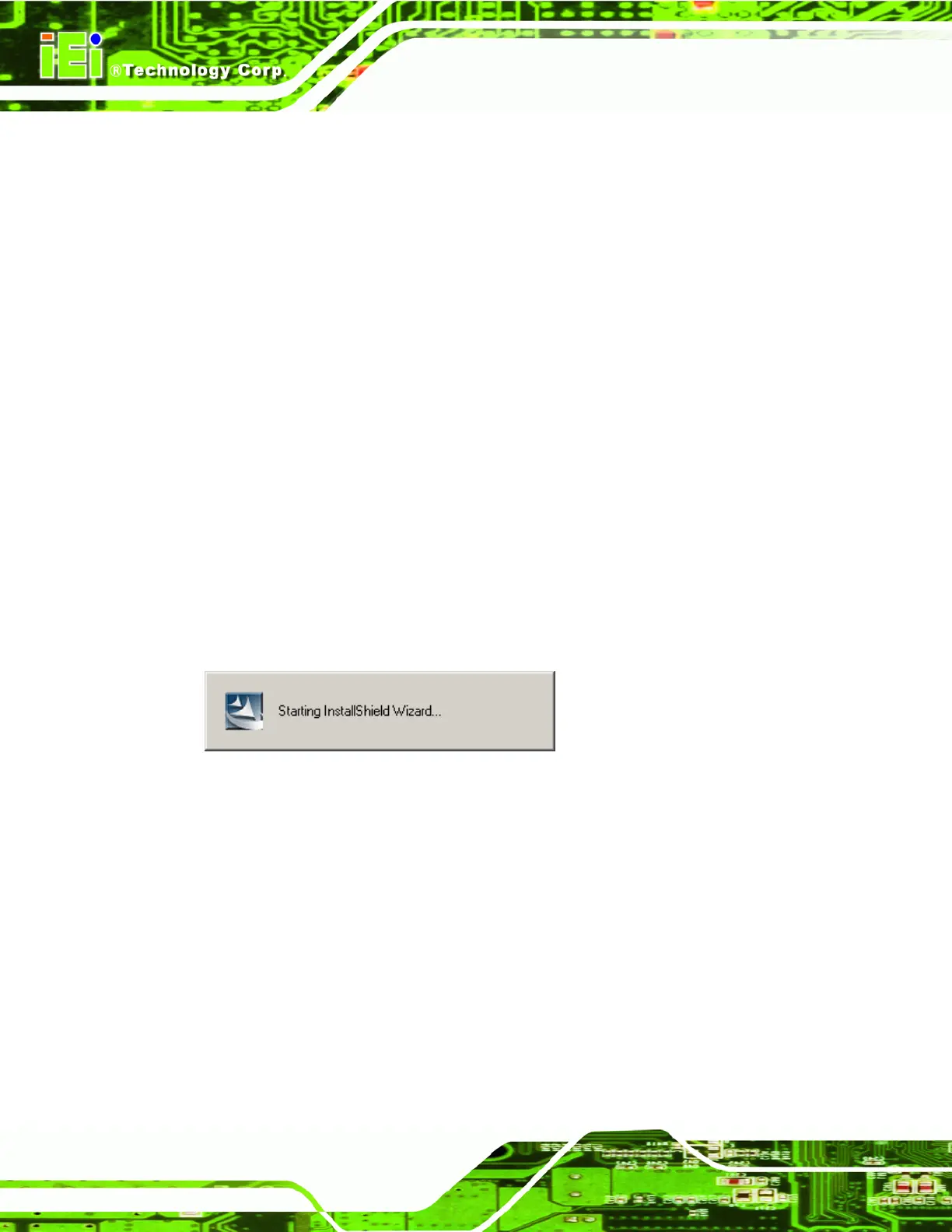

The InstallShield Wizard starts (Figure 6-19).
Figure 6-19: The InstallShield Wizard Starts
The InstallShield Wizard is prepared to guide the user through the rest of the process
(Figure 6-20).
