AFL-HM55 Series Panel PC
Page 39
Carefully mark the locations of the four screw holes in the bracket on the wall.
Drill four pilot holes at the marked locations on the wall for the bracket retention screws.
Align the wall-mounting bracket screw holes with the pilot holes.
Secure the mounting-bracket to the wall by inserting the retention screws into the four pilot
holes and tightening them (Figure 3-16).

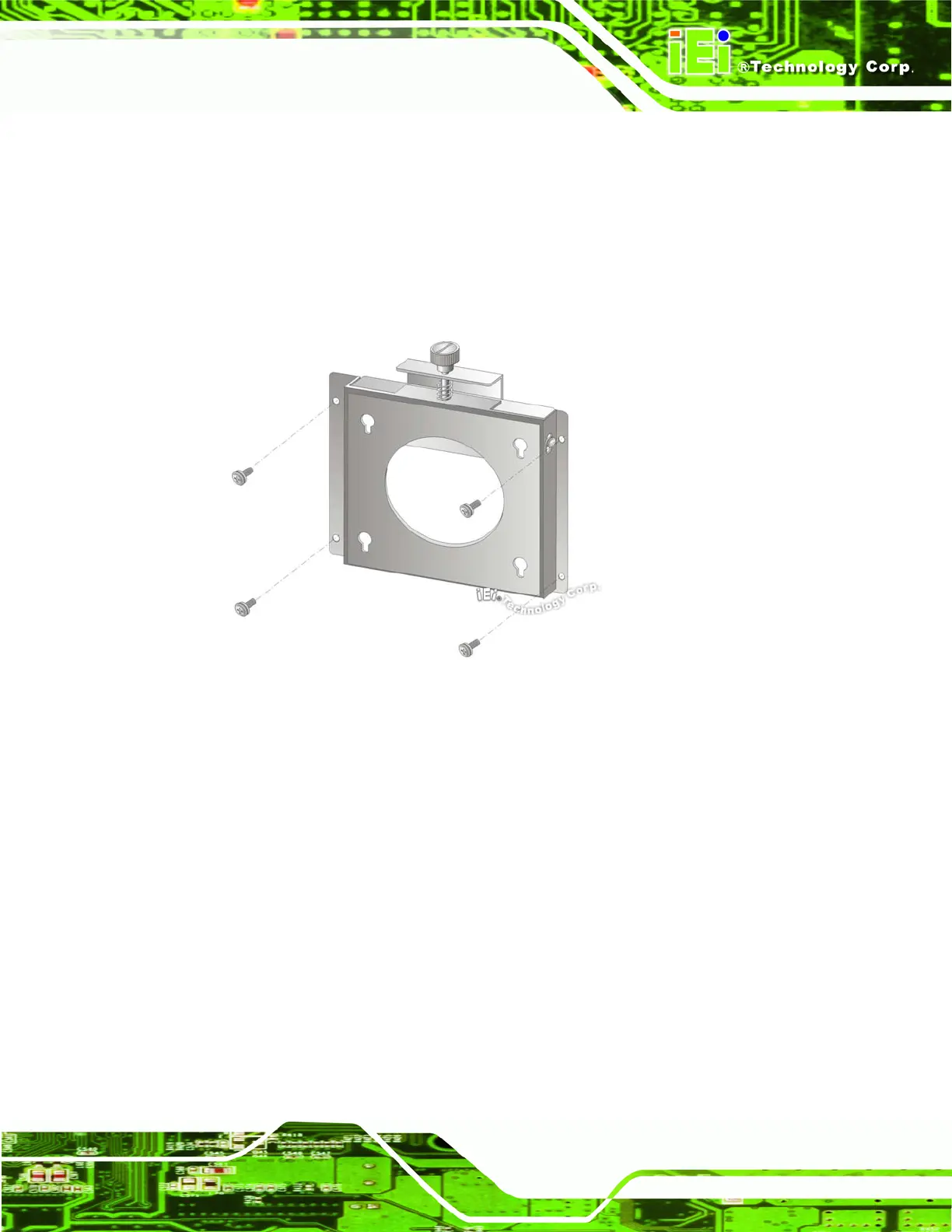

Figure 3-16: Wall-mounting Bracket
Insert the four monitor mounting screws provided in the wall mounting kit into the four
screw holes on the real panel of the flat panel PC and tighten until the screw
shank is secured against the rear panel (Figure 3-17).
Align the mounting screws on the monitor rear panel with the mounting holes on the
bracket.
Carefully insert the screws through the holes and gently pull the monitor downwards until
the monitor rests securely in the slotted holes (Figure 3-17). Ensu
re that all four
of the mounting screws fit snuggly into their respective slotted holes.
