AFL-HM55 Series Panel PC
Page 9
1.5

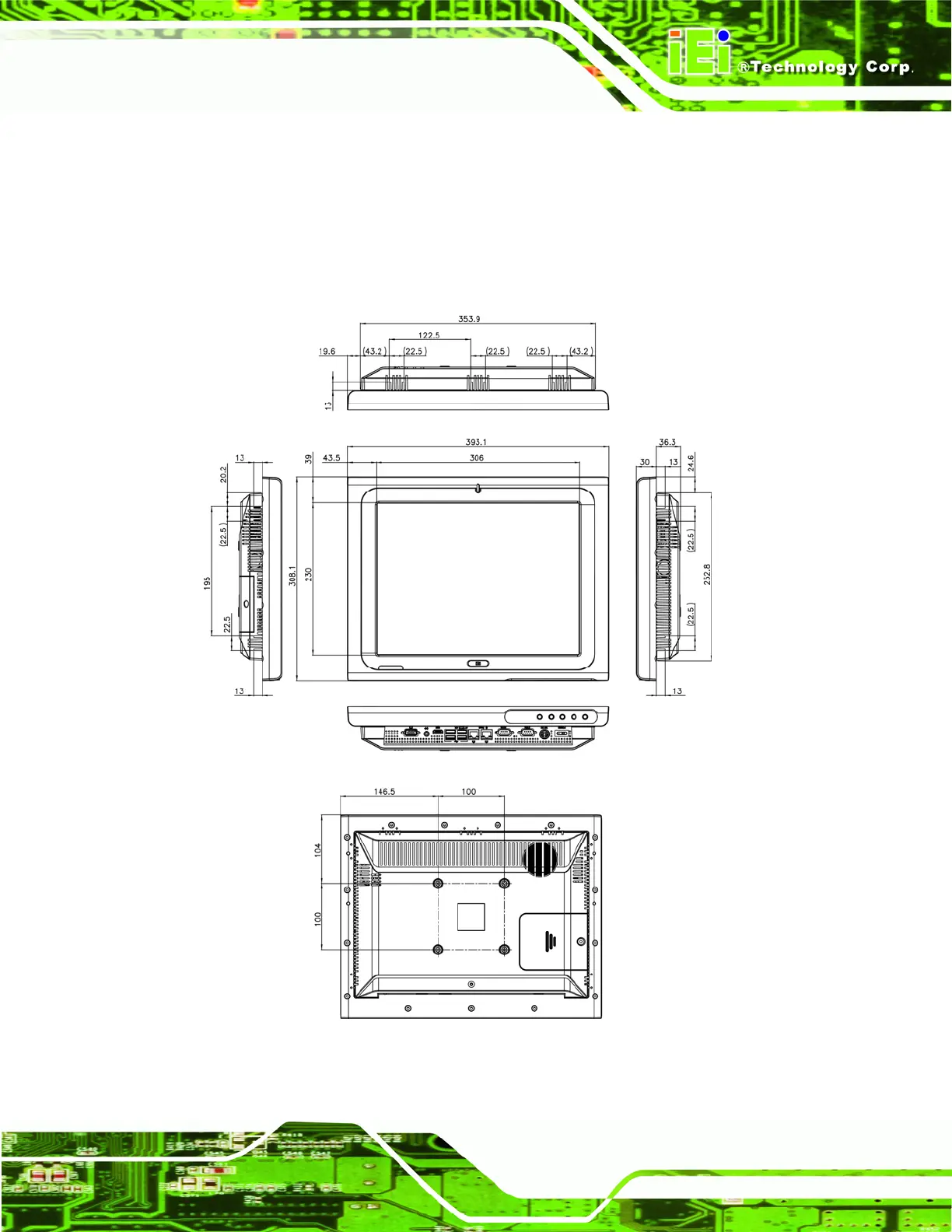

AFL-HM55 Series Dimensions
The AFL-HM55 dimensions are
shown in
Figure 1-6
and listed below.
Wid
th
: 393.1
mm
Height
: 308.1
mm
Depth
:
75 mm (approximate)
Figure 1-6: AFL-HM55 Dimensions (mm)
20
