AFL-HM55 Series Panel PC
Page 95

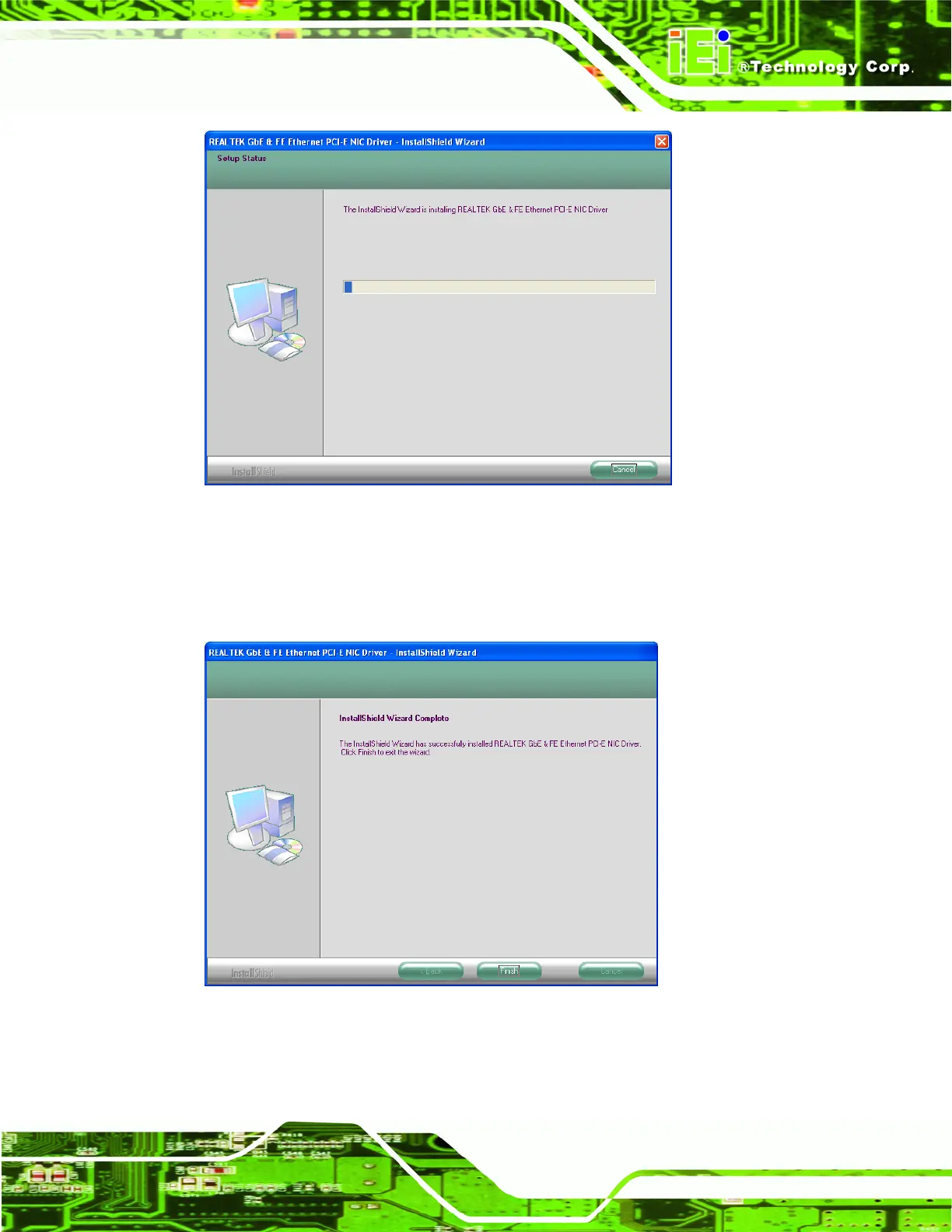

Figure 6-17: LAN Driver Installation
When the driver inst
allation is complete, the screen in
Figure 6-18
appe
ars.
Click
F
INISH
to exit setup.
Figure 6-18: LAN Driver Installa
tion Complete
