LOCAL OPERATION
3-4 46882/439
Introduction
This chapter explains how to:
• Set up the multisource generator to produce a typical basic signal.
• Select the main operating parameters; carrier frequency, output level and type of modulation.
• Use the full range of supporting facilities.
Conventions
The following conventions are used in this chapter:
RF OUTPUT Titles marked on the instrument panel are shown in capital letters
[SETUP] Hard key titles are shown in square brackets, and
[Carrier Freq] Soft key titles are shown in italics in square brackets; for example, [Carrier
Freq] means the soft key adjacent to the Carrier Freq title box at the side of the
menu.
RF Level Messages appearing on the screen are shown in italic letters.
Front-panel controls and connectors
Parameters are selected by means of hard keys (which have their function printed on them), soft
keys (which do not have any notation), a numerical key pad and a rotary control knob; see Fig. 3
-1
below. The hard keys have functions which do not change, whereas the soft key functions are
determined by the menu which is being displayed. The numerical keys are used to set parameters
to specific values which can also be varied in steps of any size by using the [
Ø][×] keys or the
rotary control knob.

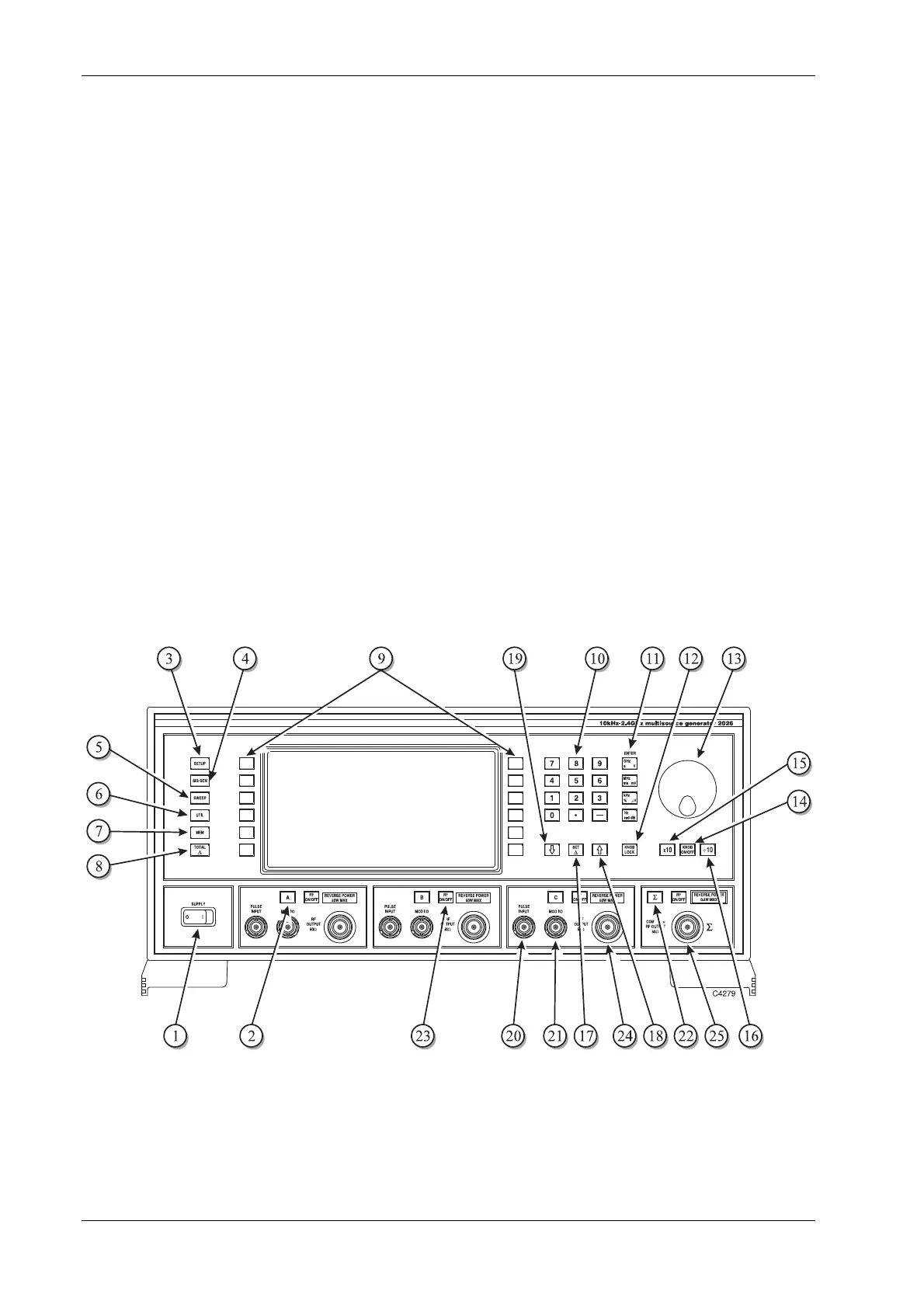

Fig. 3
-1 2026 front panel
