134
HDK-99 1803 VER1 (E)
7.3 External Connections
■

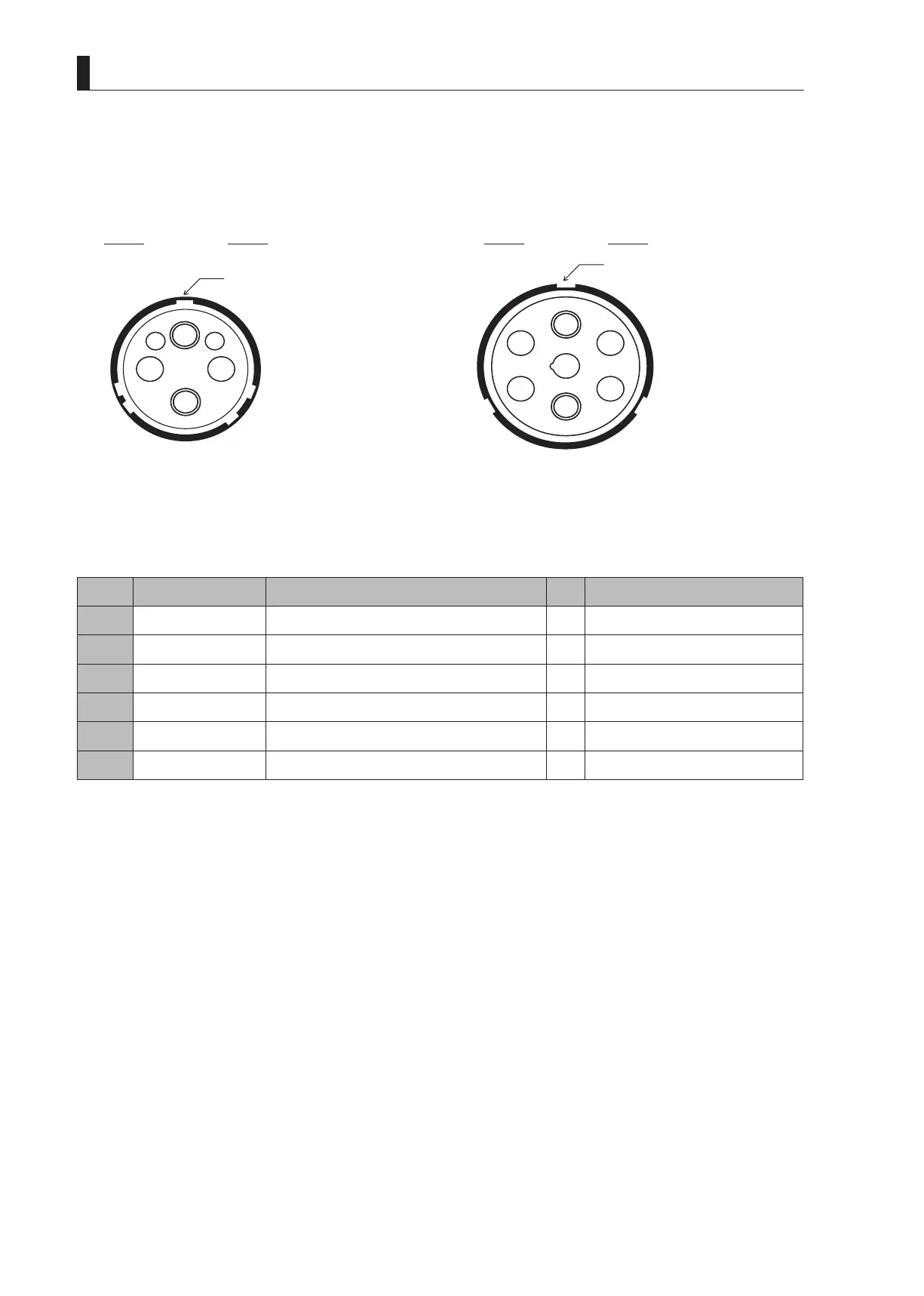

CAMERA Connector
Used to connect the camera to its CCU.
You can choose either of the following two types of camera connectors.
[SMPTE type] [OPS Series]
Insertion SideInsertion Side
Guide mark
Guide mark
1
2
6 5
4
3
1
2
6 5
3 4
< SMPTE type >
Camera head side : EDW. 3K. compatible product
Cable side : FUW. 3K.
Receptacle
Receptacle
< OPS Series >
Camera head side : OPS-R
Cable side : OPS-P
Pin No. Name Function I/O External Interface
①
OPT H - B
Optical contact Camera ->
CCU
OUT
②
OPT B - H
Optical contact
CCU
-> Camera IN
③
CONTROL (H)
Control signal (H)
CCU
-> Camera IN
④
CONTROL (C)
Control signal (C) Camera ->
CCU
OUT
⑤
POWER (H)
Power (H) supplied from
CCU
IN
⑥
POWER (C)
Power (C) supplied from
CCU
IN
