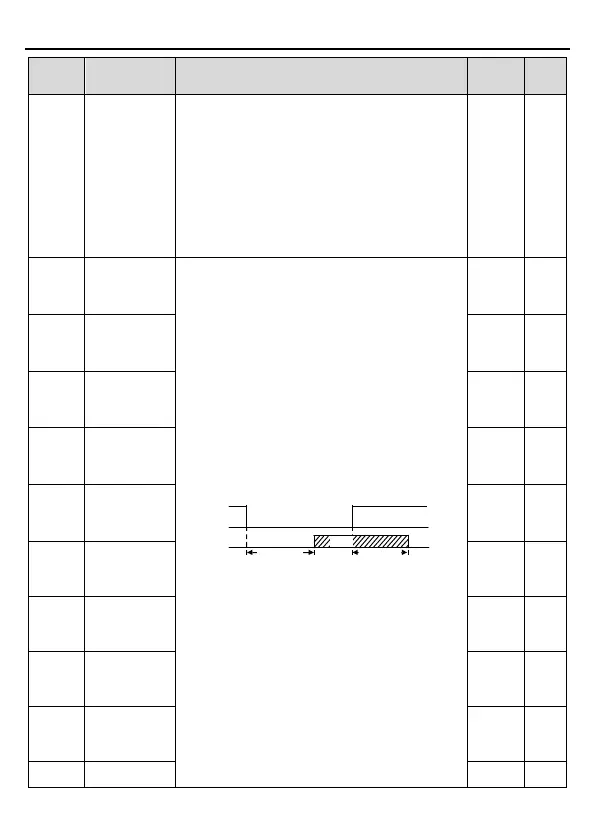

IMO SD1 Series - Page 67

SD1 Series Inverters Function Parameters
-62-
Function
code
Name Description Default Modify
FWD/REV terminal is valid, the inverter stops
because of the stopping command from other
sources, even the control terminal FWD/REV
keeps valid; the inverter
won't work when the
stopping command is canceled. Only when
FWD/REV is re-launched, the inverter
can start
again. For example, the valid STOP/R
ST stop
when PLC signal cycles stop, fixed length stop
and terminal control (see P07.04).
P05.14
S1 terminal
switching on
delay time
The function code defines the corresponding
delay time of electrical level of the programmable
terminals from switching on to switching off.
Si electrical level
Si valid
invalid invalid
Switcn-on
delay
Switcn-off
delay
valid
Setting range: 0.000~50.000s
0.000s
○
P05.15
S1 terminal
switching off
delay time
0.000s
○
P05.16
S2 terminal
switching on
delay time
0.000s
○
P05.17
S2 terminal
switching off
delay time
0.000s
○
P05.18
S3 terminal
switching on
delay time
0.000s
○
P05.19
S3 terminal
switching off
delay time
0.000s
○
P05.20
S4 terminal
switching on
delay time
0.000s
○
P05.21
S4 terminal
switching off
delay time
0.000s
○
P05.30
HDI terminal
switching on
delay time
0.000s
○
P05.31 HDI terminal 0.000s ○
