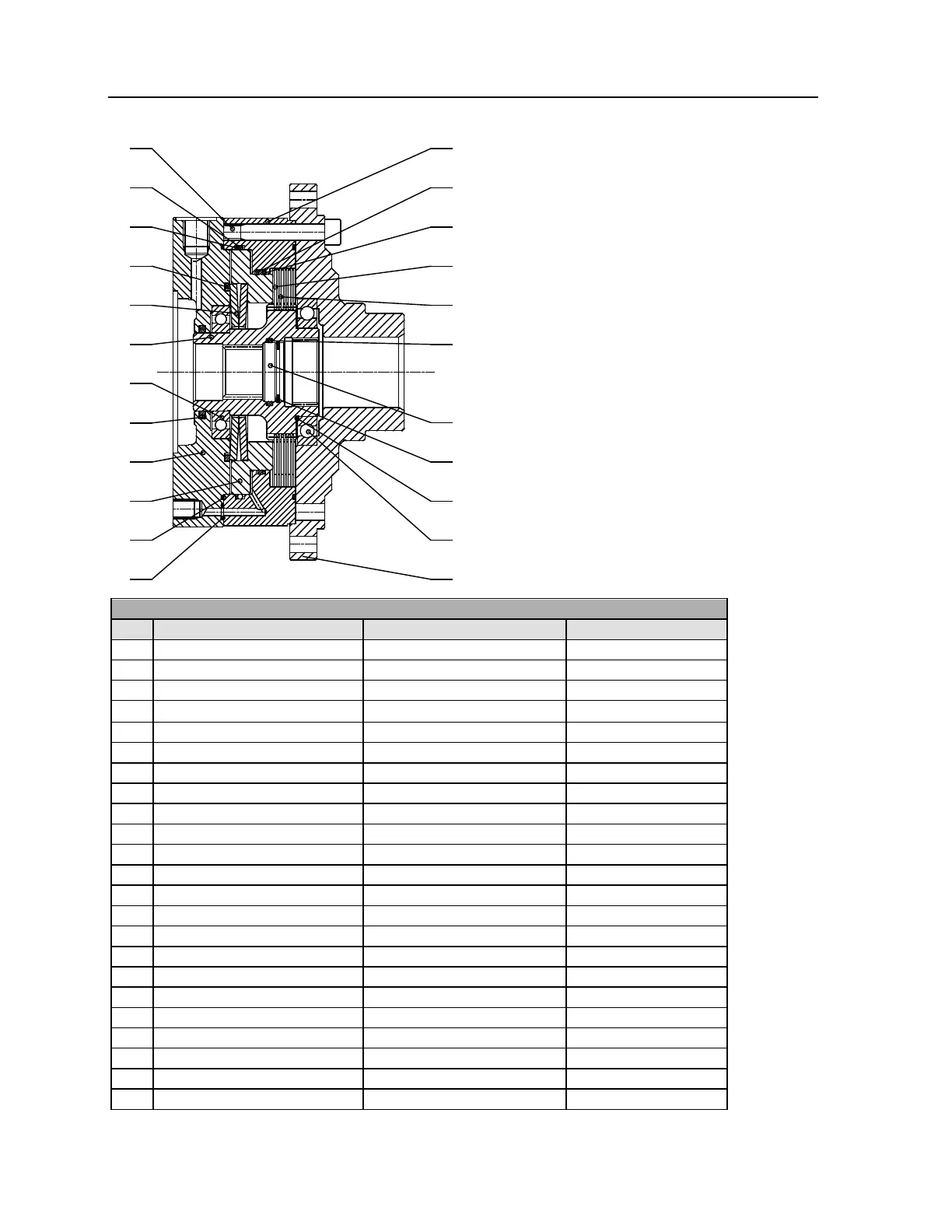

73511108 BRAKE UNIT PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
PART OF 94397459 SEAL KIT
O-RING
1
2.
PART OF 94397459 SEAL KIT
O-RING
2
3.
PISTON
1
4.
FLANGE
1
5.
PART OF 94397459 SEAL KIT
GASKET
1
6.
BALL BEARING
1
7.
GEAR
1
8.
SPRING WASHER
2
9.
SHOULDER RING
1
10.
PART OF 94397459 SEAL KIT
O-RING
1
11.
PART OF 94397459 SEAL KIT
BACK-UP RING
1
12.
SCREW
8
13.
CALIPER
1
14.
PART OF 94397459 SEAL KIT
O-RING
1
15.
PART OF 94397459 SEAL KIT
BACKUP RING
1
16.
BRAKE DISC
7
17.
BRAKE DISC
6
18.
PART OF 94397459 SEAL KIT
O-RING
1
19.
TABLET
1
20.
SNAP RING
1
21.
SHIM
1
22.
BALL BEARING
1
23.
BEARING FLANGE
1
