IMT 10000 User Manual

Chapter 4 Parts 81
18
(GREASE HOSE)
PRESSURE &
RETURN HOSES
TRANSDUCER
5
3
LOWER
LOWER CYLINDER
PORT IDENTIFICATION
LOWER CYL
(RETRACT)
LOWER CYL
(EXTEND)
ROT CW
ROT CCW
CASE
DRAIN
EXT CYL
(RETRACT)
EXT CYL
(EXTEND)
VALVE BANK
PORT
IDENTIFICATION
WINCH (UP)
WINCH (DN)
RETURN
PRESSURE
HYD MOTOR
PORT
IDENTIFICATION
(ROTATION)
PORT B
PORT A
PORT B
PORT A
WINCH
(BOTTOM
VIEW)
14
14
PLANETARY WINCH
PORT
IDENTIFICATION
7
17
7
COUNTERBALANCE
VALVE
RETRACT
PORT (R)
EXTEND
PORT(E)
EXT CYLINDER
PORT IDENTIFICATION
11
11
CYLINDER

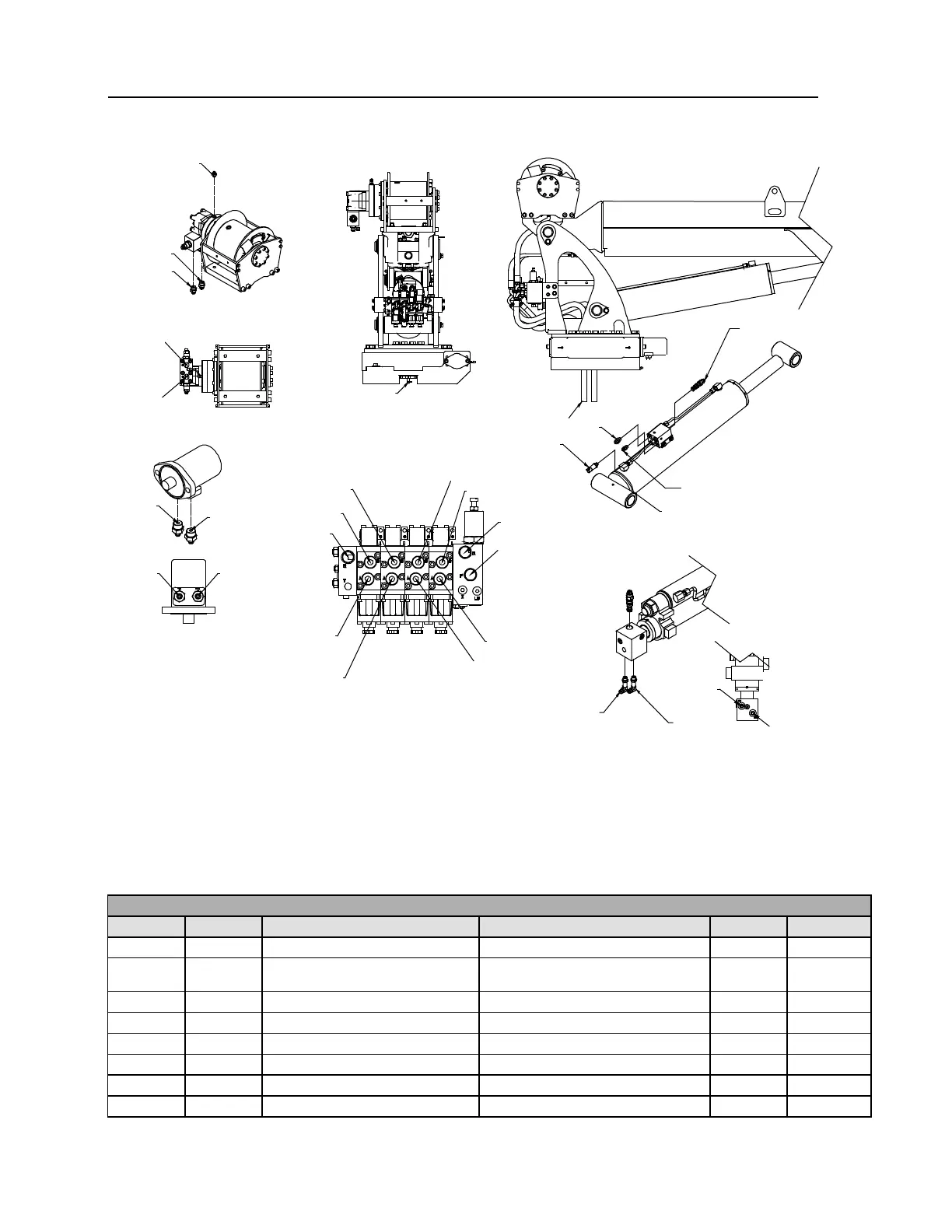

NOTES:
1 INSTALL SLEEVE #32, 60350141, ON EXTENSION CYLINDER, LOWER CYLINDER AND ROTATION HOSES.
2 INSTALL SLEEVE #33, 60350142, ON WINCH HOSES AND PRESSURE & RETURN VALVE BANK HOSES.
3 INSTALL SLEEVE #34, 60350105, ON PRESSURE & RETURN HOSES AND ROTATION HOSES THROUGH
THE MAST.
99905018 PARTS LIST
ITEM
PART #
DESCRIPTION
DETAILS
KIT #
QUANTITY
1.
91723601
HYDRAULIC KIT-A40-60
1
2.
73734727
VALVE BANK (WAS 73734635)
4SECTION 10 GPM
PROPORTIONAL
1 REF
3.
72532355
ADAPTER
M STR/M JIC 6 6
#1
1
4.
72532356
ADAPTER
M STR/M JIC 8 6
#1
4
5.
72532357
ADAPTER
M STR/M JIC 6 8
#1
1
6.
72532358
ADAPTER
M STR/M JIC 8 8
#1
4
7.
72532359
ADAPTER
M STR/M JIC 10 8
#1
2
8.
72532361
ADAPTER
M STR/M JIC 8 10
#1
1
