INFICON Description | 4
Ecotec E3000-Operating-instructions-kina22en1-28-(2211) 13 / 104
1
2
3
4
5
6
7

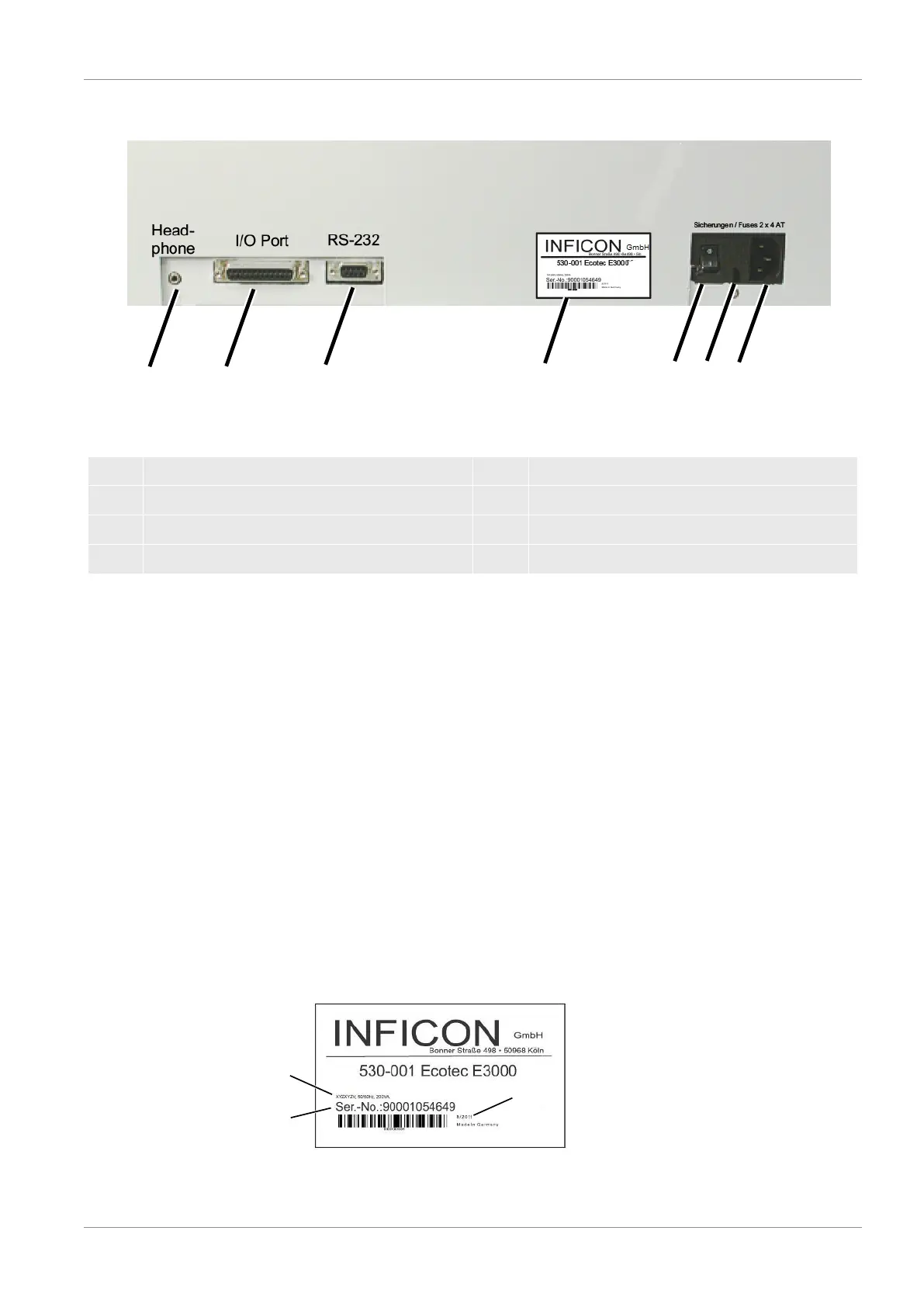

Fig.2: Ecotec E3000 rear view
1 Headphone connection, 3.5mm jack 5 Power switch
2 Inputs/outputs (I/O port) 6 Fuses behind cover
3 RS-232 connection 7 Power supply
4 Nameplate
Headphone connection, 3.5mm jack:
In order to better hear signals in a loud environment, you can connect headphones.
Inputs/outputs (I/O port):
The I/O port enables communication with a PLC. Some functions of the Ecotec E3000
can be controlled from the outside and measurement results and device states of the
Ecotec E3000 can be transmitted to the outside.
Relay changeover contacts allow monitoring of the trigger values and the operating
status of the Ecotec E3000. Please refer to the “Interface description Ecotec E3000”
(doc. no. kins22e1) for further information.
RS-232 connection:
A PC can read out all data and measurement results of the device and control the
device via the RS-232 connection. Please refer to the “Interface description Ecotec
E3000” (doc. no. kins22e1) for further information.
Nameplate:
The rating plate contains the supply voltage specification and other information with
which the device can be clearly identified.
1
2
3
Fig.3: Nameplate of Ecotec E3000

Inficon Ecotec E3000 Specifications

General

Brand	Inficon
Model	Ecotec E3000
Category	Security Sensors
Language	English
