INFICON Maintenance | 8
Ecotec E3000-Operating-instructions-kina22en1-28-(2211) 79 / 104
5 Hook something into the center bore of the plastic container and pull out the
plastic container.

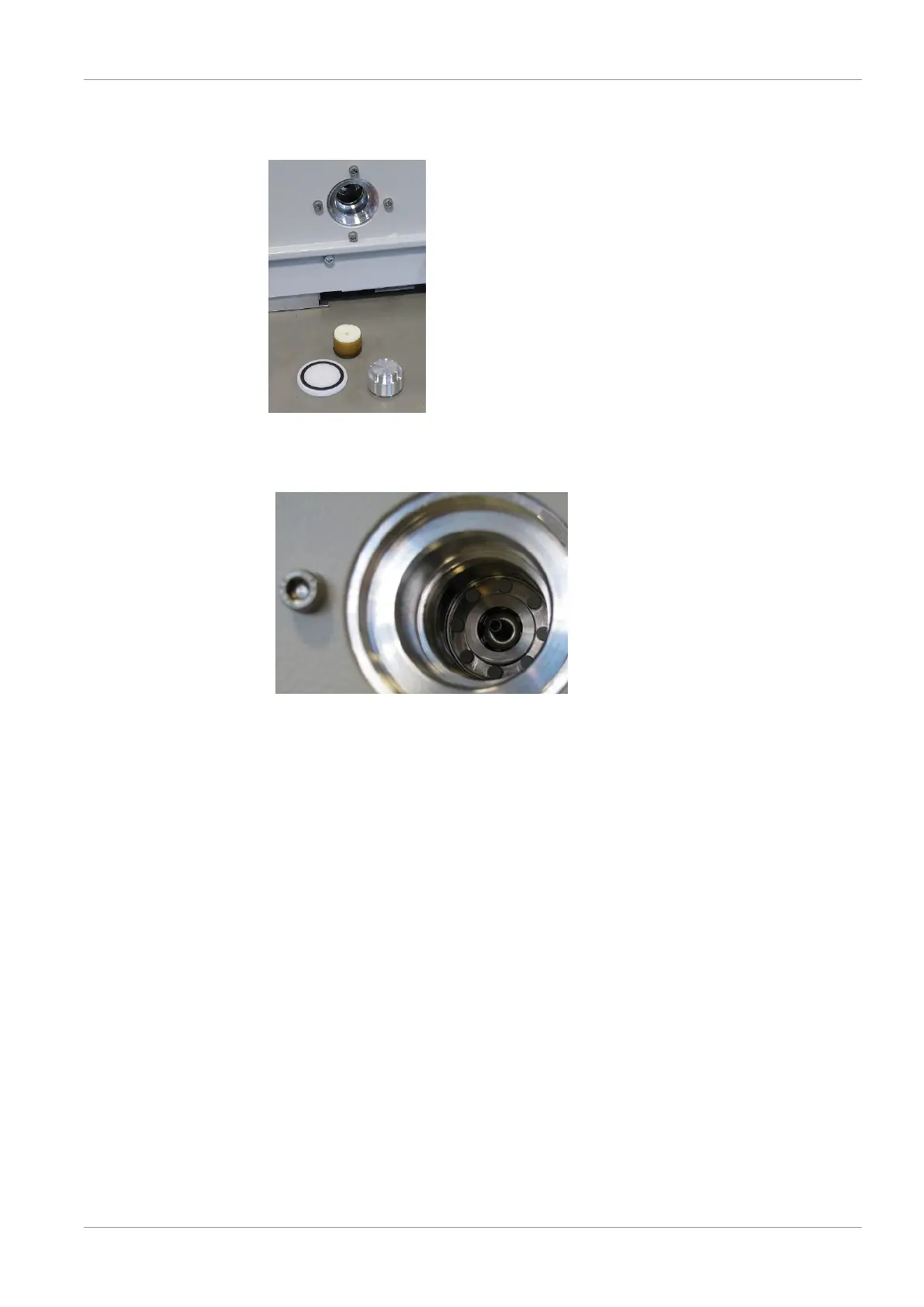

Fig.48: Operating fluid reservoir open
6 Pull the eight Porex rods out of the front side of the bore with tweezers.
Fig.49: Porex rods
7 Insert the new Porex rods with tweezers.
8 Place the plastic container in the bore with the soaked liner first and close it
with the aluminum plug.
9 Tighten the plastic screw again. Ensure that the o-ring is placed correctly in the
groove of the plastic screw and that the bore is lined up properly.
10 Confirm the work, see "Calling up and managing maintenance information
[}71]."
8.2.4 Replace mains fuses.
The fuses are located behind a flap near the mains switch. They are in two slots.
The mains fuses are available with order no. 200 000 914. Two identical fuses must
be used at all times.
