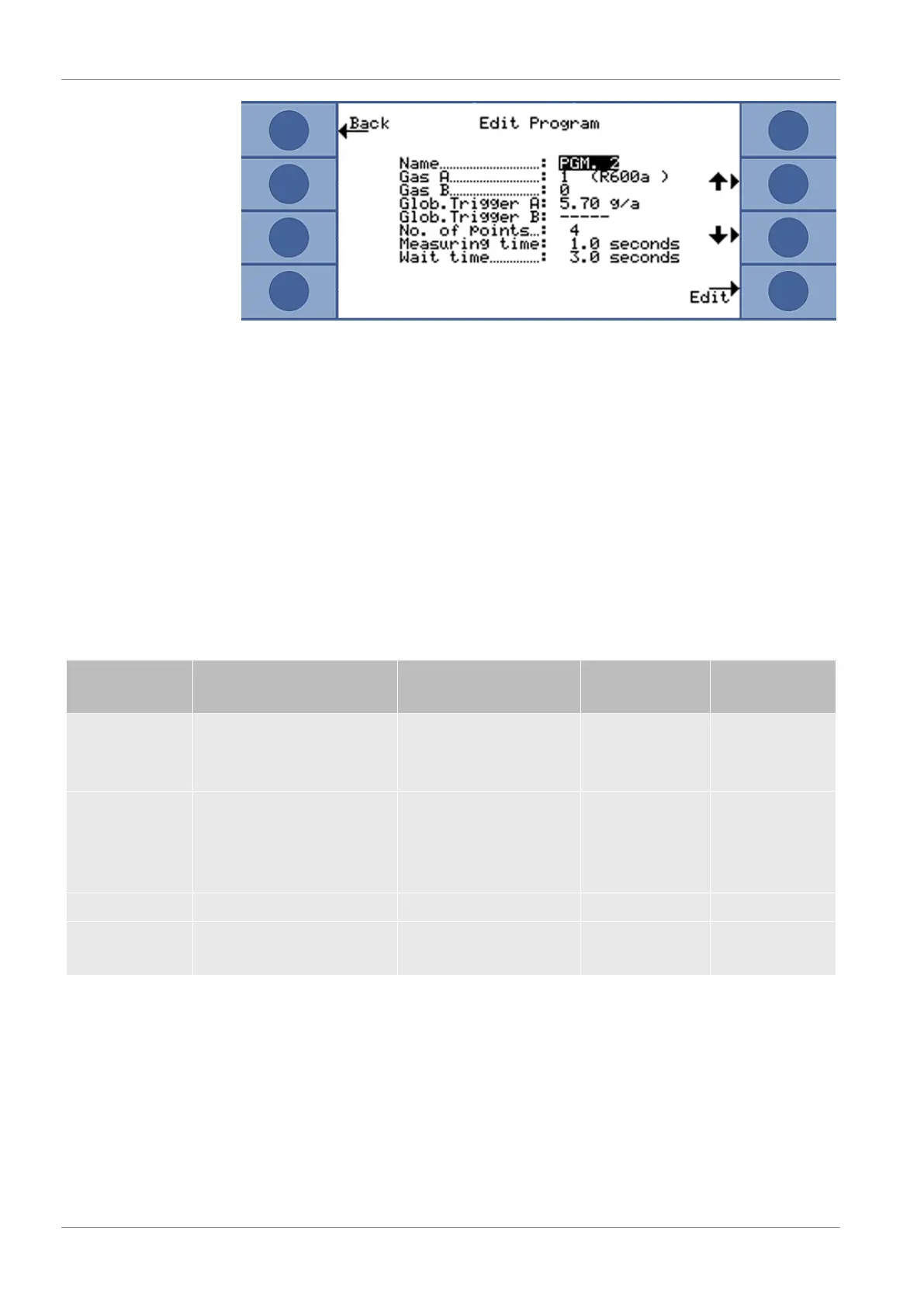

Fig.34: Settings for an I•Guide program
6.4.7.2 Starting the I•Guide program
Messages in the display of the basic unit, messages in the display of the handle and
acoustic signals guide you through the program.
1. If due, calibrate the device externally. During the work with I•Guide, the device can
be calibrated internally only.
2. Activate I•Guide in the I•Guide menu, see above. A message shows the gas that is
being searched for. It is the gas from the first activated I•Guide program. Confirm
with “OK.”
3. Switch to the main menu. Measurement will start immediately.
4. Follow the messages.
Process Message in main device
display
Message in handle
display
Acoustic basic
unit
Acoustic signal
handle
Idle time to
move to the
measuring point
Tip to point .... To pos. .... - -
Prompt to
confirm the
position.
Confirm point .... OK? Pos. .... Confirm
with the right button if the
sniffer tip is at the
measuring point.
- -
Measure Measure point .... Measure pos. .... Ticking -
Measurement
time elapsed
Tip to point .... To pos. .... Short signal Short signal
