Process Message in main device
display
Message in handle
display
Acoustic basic
unit
Acoustic signal
handle
Cycle completed Cycle number of
measurement
Measured gas
Single leak rates and sum
of measured leak rates
“OK!” with a total leak rate
below the limit value
“Leak in the cycle!” with a
total leak rate above the
limit value or if the trigger
value was exceeded in a
single measurement.
Measured gas
Sum of measured leak
rates
“OK!” with a total leak
rate below the limit value
“Error!” with a total leak
rate above the limit value
or if the trigger value was
exceeded in a single
measurement.
Long signal Long signal
Constant signal
in case of an
error
If you are searching for two
gases: You can change
between the displays for the
two gases with the buttons
“A” and “B.”
If you are searching for
two gases: The display
automatically switches
between the displays for
the two gases.
Table5: User prompts I•Guide program
“Please wait” or “Wait” is displayed if you want to start the next measurement by
pressing the button before the idle time has elapsed.
During a cycle, you can use the key to move back one measuring point.
The key takes you back to the beginning of the cycle.

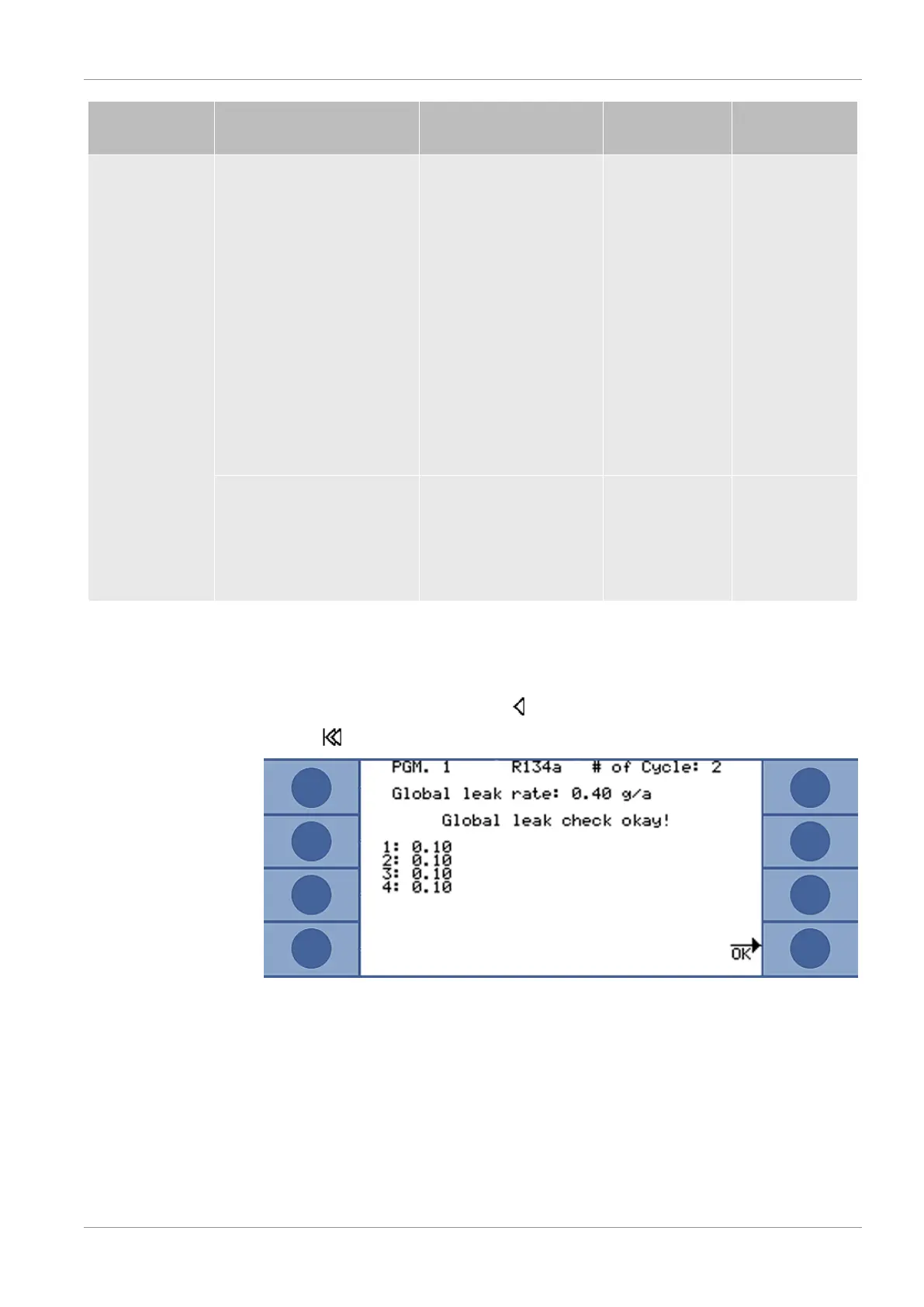

Fig.35: Display after a successful measurement
