6 | Operation INFICON
56 / 104 Ecotec E3000-Operating-instructions-kina22en1-28-(2211)

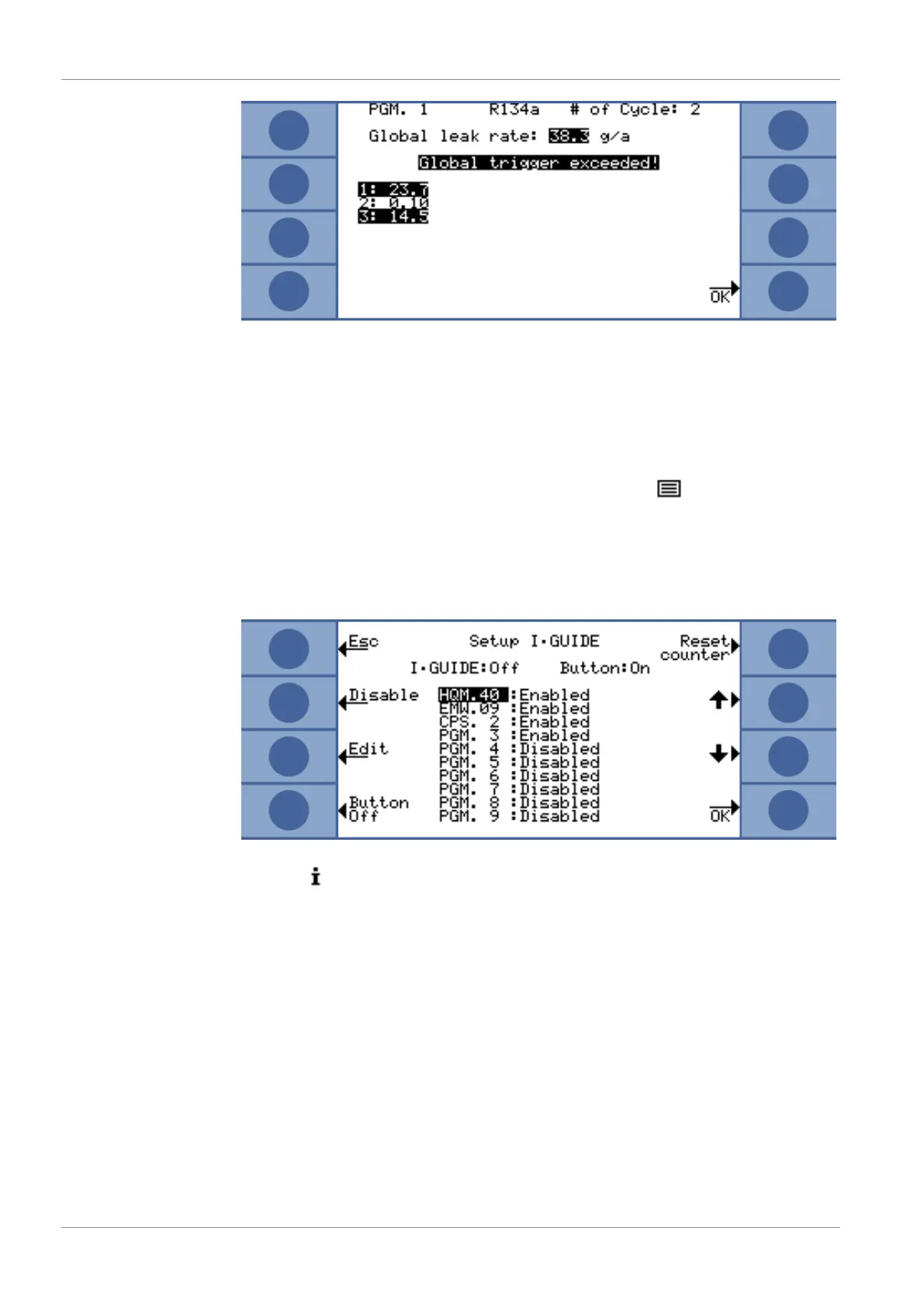

Fig.36: Search with I•Guide-Program 1 for gas R134a: The trigger value and the total leakage
rate were exceeded at measuring points 1 and 3.
The next measurement cycle starts if you confirm with “OK” or the press the right
button on the sniffer handle.
Changing the I•Guide
program
The new I•Guide program must be set and activated in the I•Guide settings, see
above.
► Open the list of I•Guide programs in the main menu with and select one.
Measurement will start immediately.
Resetting the I•Guide
cycle counter
In the “I•Guide setting” window, you can reset the I•Guide cycle counter manually with
the button “Reset counter.”
The cycle counter is always set to ZERO when the device is switched off.
Fig.37: Cycle counter reset
Calling up
information on the
I•Guide program
Press the key to obtain information on the current measurement:
• Software version
• Operating hours
• Serial number
• Date and time
• Alarm profile
• Information on the current I•Guide program
If two gases were selected for the I•Guide program, gas type A/B and leak rate sums
A/B are displayed alternately.
