Capturing the results
of a long
measurement series
with I•Guide
You can combine the leak rates of a maximum of 99 measurements with I•Guide. Set
the number of measuring points to 99. If you then press the right-hand button on the
sniffer handle for two seconds during the measurement, a results window with the
individual measurements and the total leak rate is displayed. After the 98th measuring
point, the result is displayed automatically.
6.4.7.1 Setting the I•Guide program
1. Select “Main menu > Settings > I•Guide setting.”
2. To activate I•Guide select “Activate.”
3. To enable confirmation with the right button on the sniffer handle, select “Key on.”
Control is otherwise possible only via interface.
4. Select one of the 10 programs with the arrow buttons and then press “change.”
5. Select the setting you want to change with the arrow buttons and press “change.”
6. Adjust the settings as described below and confirm with “OK.”

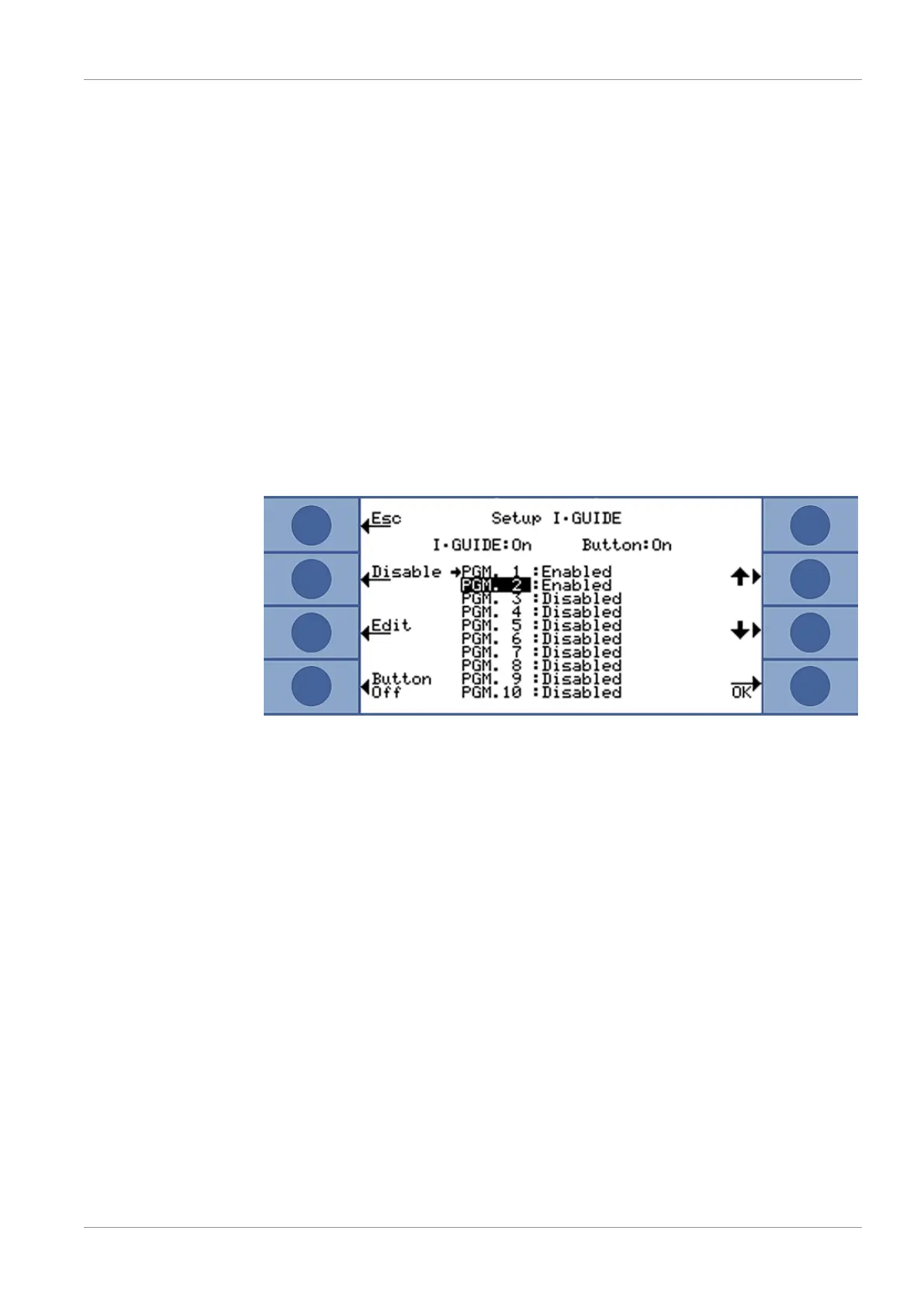

Fig.33: List of I•Guide programs
Name Name of the program. A name comprises six characters. After you have entered the
last character, you can confirm with “OK.”
Gas A One of the four gases that was selected for the search can be selected, see "Selecting
the gas, changing gas parameters, activating measurement [}40]."
Gas B See above. If no second gas is to be searched for, set this to “0.”
Trigger value A/
trigger value B
The maximum permissible leak rate for the addition of all measurements of an I•Guide
program can be set here. The trigger value for a single measurement complies with
the trigger value originally set for a gas.
Number of measuring
points
0 to 99.
Measuring time 1 to 25seconds. You must not set the measurement time to be shorter than the
response time of the device, see "Technical data [}16]."
Idle time You can set a time between 0.1 and 25seconds for the transition to the next
measuring point.
