6 | Operation INFICON
40 / 104 Ecotec E3000-Operating-instructions-kina22en1-28-(2211)
• R600a
• He
The gas selection can be changed at any time.
6.4.1 Selecting the gas, changing gas parameters, activating
measurement
You can access the settings via the main menu
► Select “Measuring parameters”

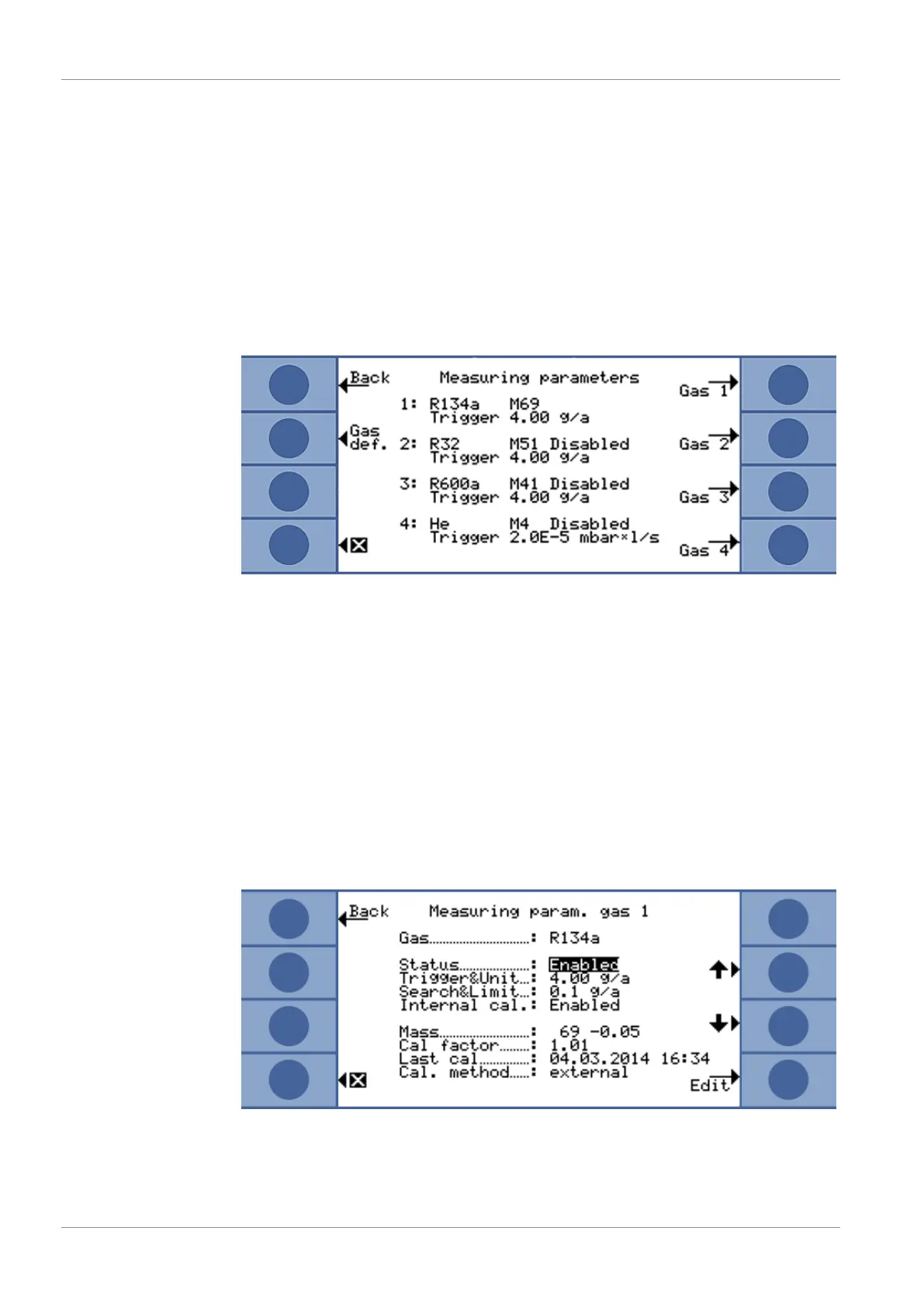

Fig.19: Gas information for the measurement
The display shows:
• four gases
• the respective mass position
• the respective trigger value
• the “Deactivated” addition if the associated gas is currently not searched for, see
below.
You can also define your own gas with the “Gas def.” button, see "Setting Custom Gas
[}49]."
Press the button to the right of the gas whose parameters you want to change. The
“Settings gas” window will open.
Fig.20: Changing the settings for gas 1
With the buttons up and down you select a setting. Pressing the “change” button on
the bottom right opens the associated settings menu.
