INFICON Maintenance | 8
Ecotec E3000-Operating-instructions-kina22en1-28-(2211) 81 / 104

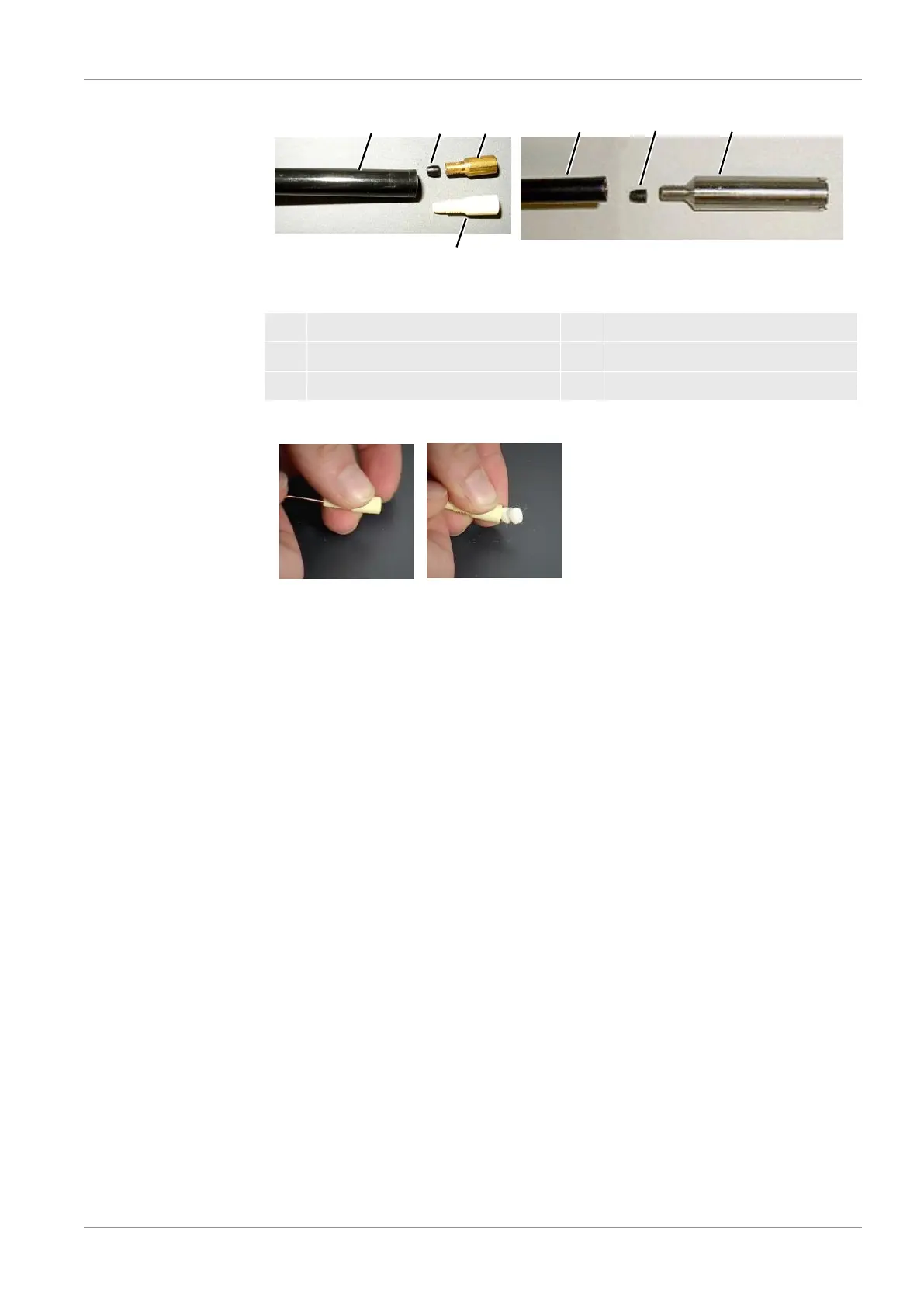

Fig.52: Capillary filter
1 Sniffer line end 4 Plastic capillary filter
2 Cone seal 5 Water conservation tip
3 Metal capillary filter
Fig.53: Pressing the filter inserts out of the capillary filter
Capillary filter and water conservation tip are screwed onto the sniffer line end.
The filter inserts are inserted and lie in front of a small metal grill that is also inserted.
To replace the filter inserts, proceed as follows:
1. Turn off the Ecotec E3000.
2. Unscrew the capillary filter or the water conservation tip. Make sure that the cone
seal does not fall out.
3. Push out the old filter pads and the metal grill from the rear.
4. Dispose of the old inserts and clean the metal grill.
5. Push the metal grill and then the two new inserts into the filter from the front. Make
sure that grill and inserts do not cant.
6. Turn on the Ecotec E3000.
7. Close the sniffer tip with your finger. With the water protection tip, you have to also
cover the opening on the side. You should then be able to feel a negative
pressure. If not then there is a leak somewhere and you have to check the screw
connection. The cone seal may also have fallen out.
8. Confirm the work, see "Calling up and managing maintenance information [}71]."
9. Calibrate the Ecotec E3000, see "Calibrate [}43]."
