Omni Installation Instructions
© Mass Electronics Pty Ltd 2017Chapter 2 – Mechanical Installation
2-4.2.1 Installation
1. Pull the DIN rail release tab down.
2. Align the DIN rail clip on the top edge of the DIN rail.
3. Lower the controller so it is level and push the DIN rail clip upwards to secure the device.
2-4.2.2 Removal
•Pull the DIN rail release tab down until it releases from the bottom edge of the DIN rail, and then
pull the bottom away and li up.

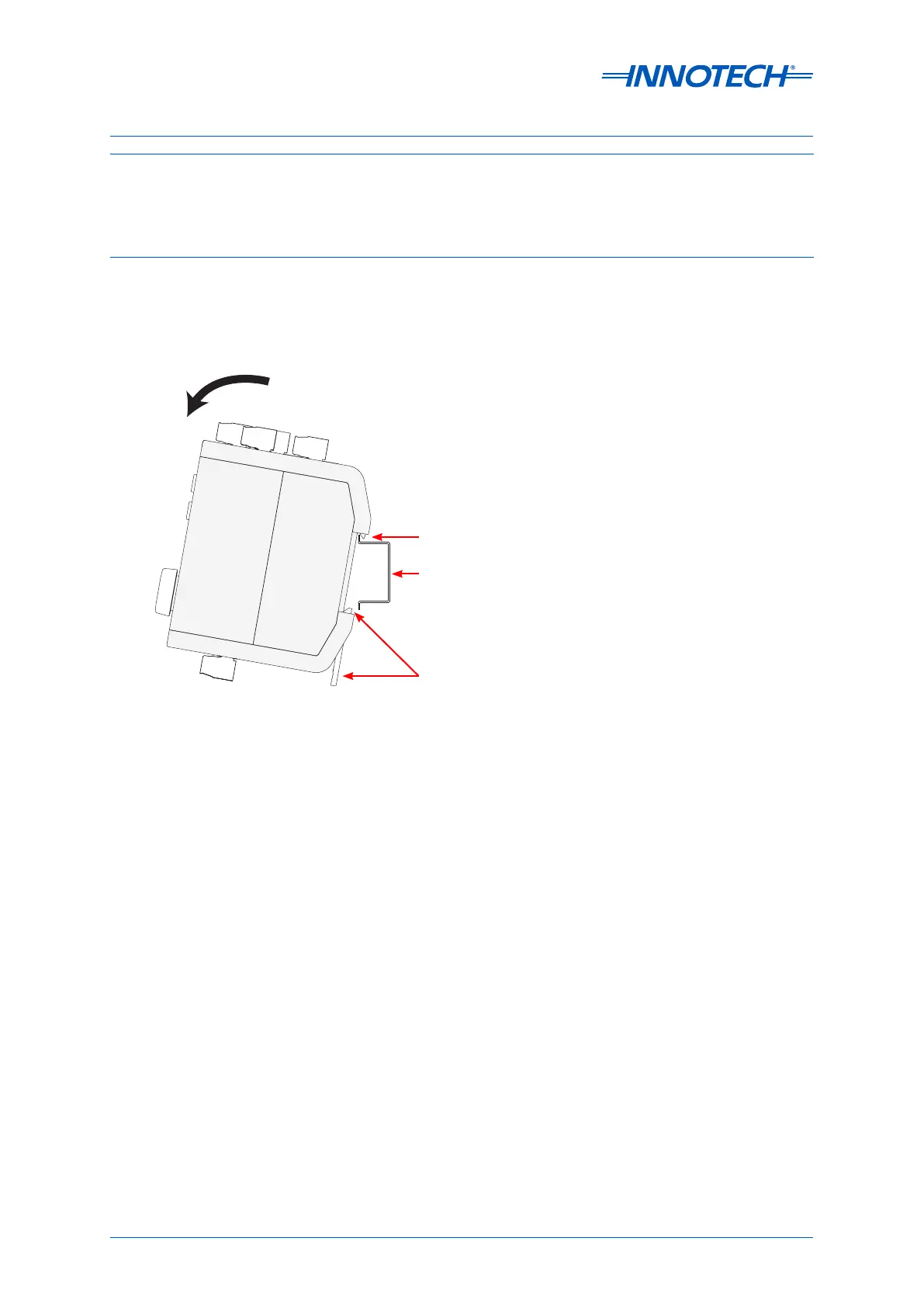

Figure 2-21: DIN Rail Installation
DIN Rail Clip
DIN Rail
DIN Rail Release Tab
◀ Front Back ▶
