3-4.6 General Wiring Diagrams for Omni Controllers
This section contains general wiring diagrams and images for the Omni controller.
3-4.6.1 Omni Earthed Mounted on DIN Rail
3-4.6.3 Typical 0-10VDC Output From Omni

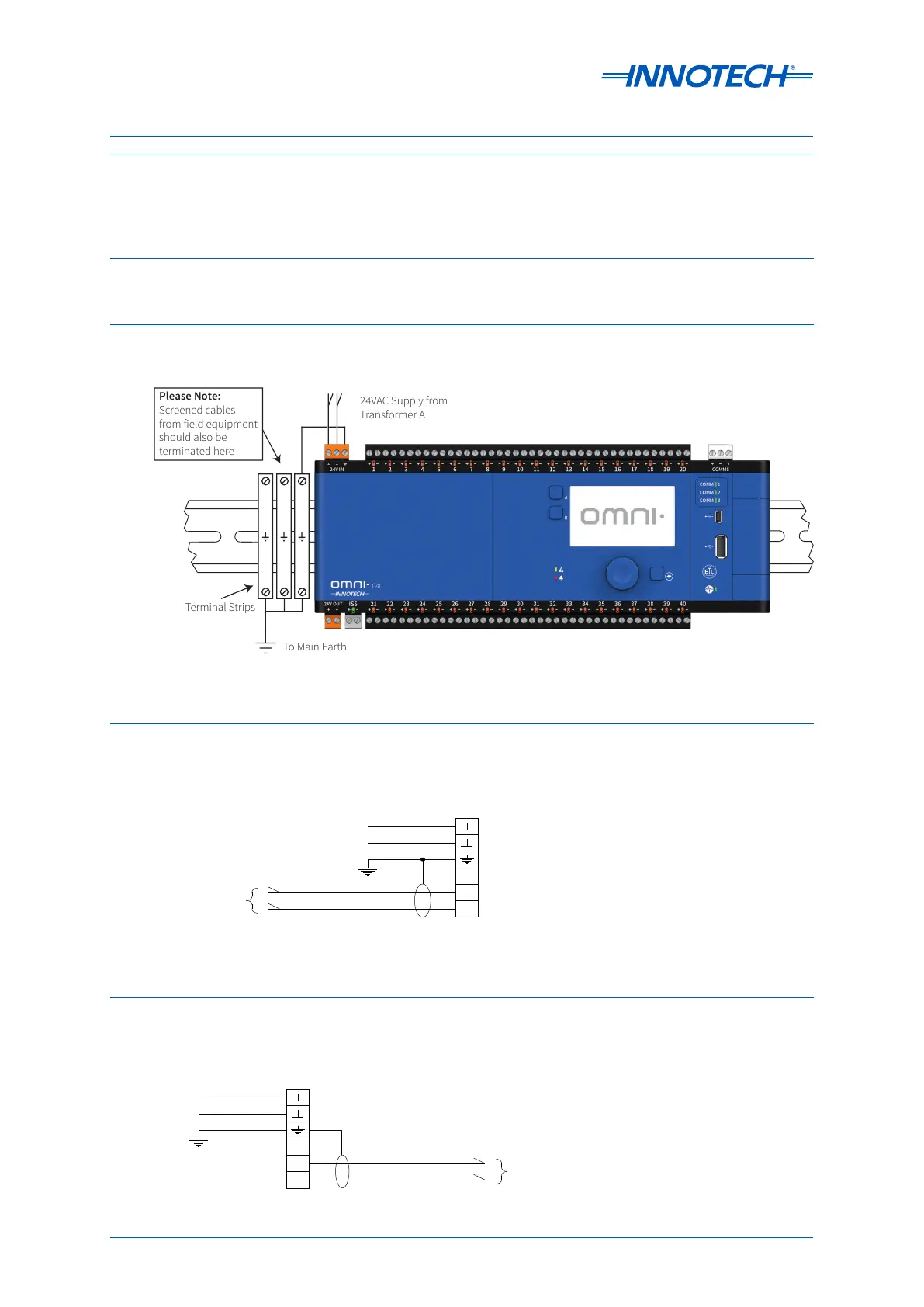

Figure 3-12: Omni Mounted on DIN Rail
Figure 3-13: Typical 0-10VDC Input to Omni
Figure 3-14: Typical 0-10VDC Output from Omni
3-4.5.3 USB
The Omni U10 has one USB Input, USB-Mini B. The USB-B connection is used for connection to a
computer.
3-4.6.2 Typical 0-10VDC Input to Omni
24VAC Supply from
Transformer A
Terminal Strips
To Main Earth
Please Note:
Screened cables
from field equipment
should also be
terminated here
