2-5 HMI Installation
2-5.1 OMH01 Retrofit Onboard HMI
The OMH01 retrofit HMI display can only be installed by Innotech technical personnel. Refer to the
OMH01 Installation Instructions supplied with the HMI for the correct installation procedure.
2-5.2 OMH02 External USB HMI Display Module
The external HMI can be mounted in the cabinet near the Omni controller(s) or used handheld. A USB
cable is plugged into the back of the HMI and into the USB-A socket of the Omni C20 or Omni C40
controller.
One HMI can be used with multiple controllers by plugging the USB cable into another controller. The
USB cable can be plugged in while the controller is powered.

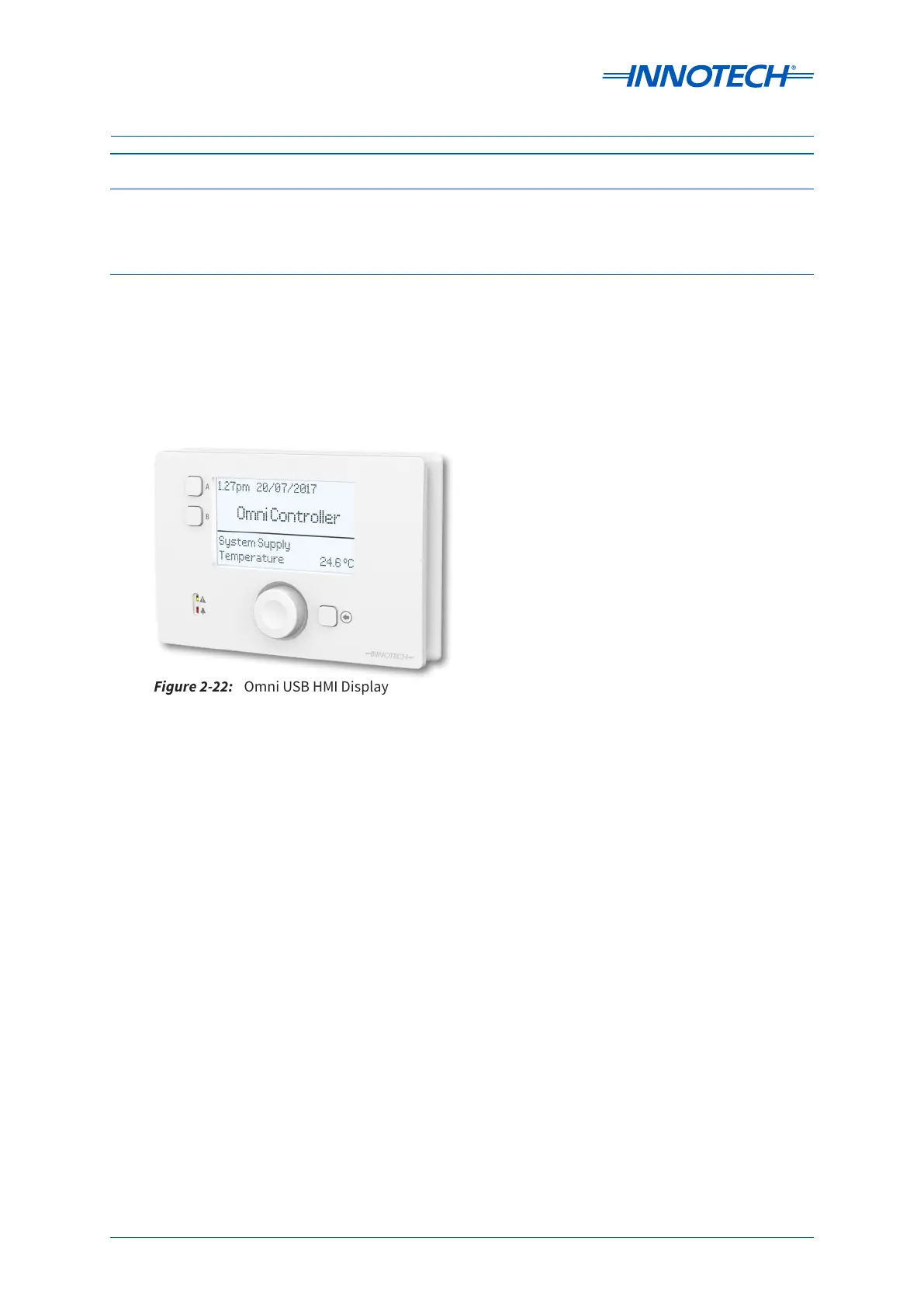

Figure 2-22: Omni USB HMI Display
