3 Installation and Wiring
-
33
-
3
■
Install the AC drive in the cabinet

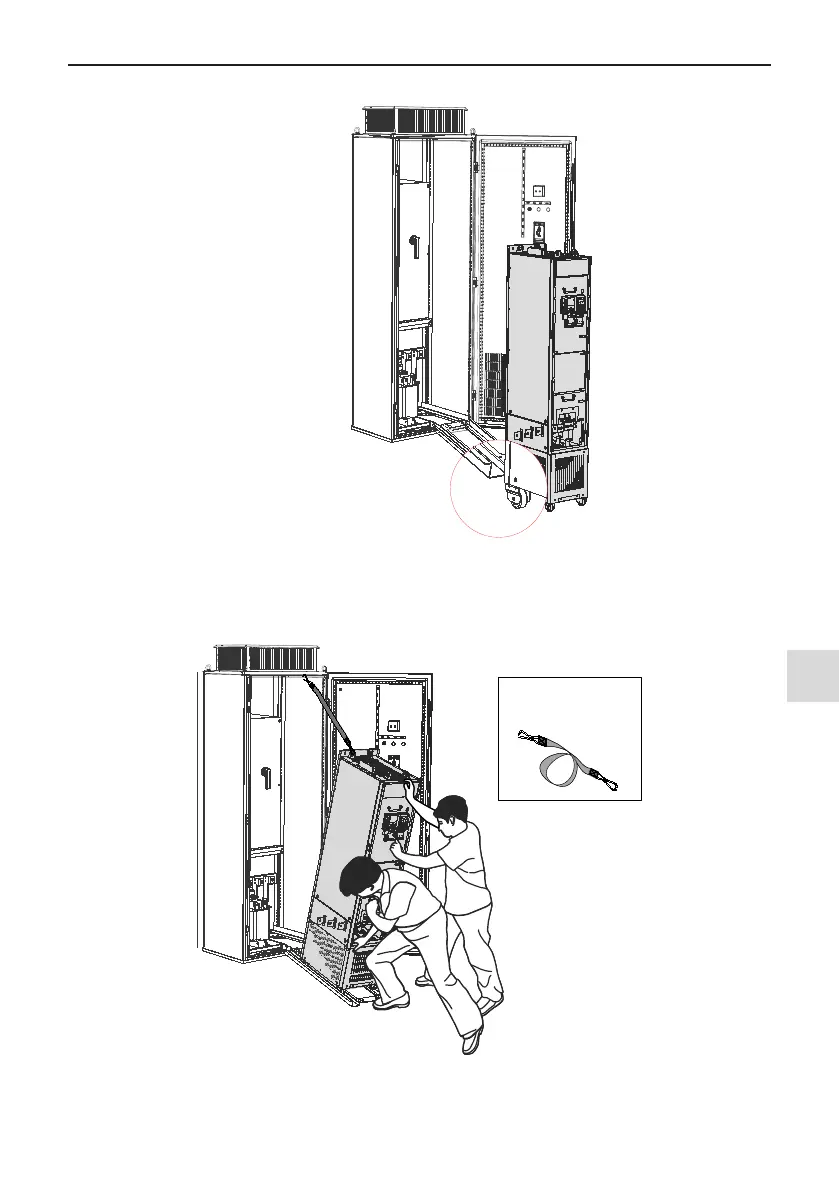

Figure 3-19 Align castors of the drive to the guide rail
Because the center of gravity of the
Drive is too high, please use a soft
strap (with hook at both ends
) in the
process of push-in to prevent
turnover
.
Figure 3-20 Push the drive into the cabinet
