25
Speaker Placement
—Continued

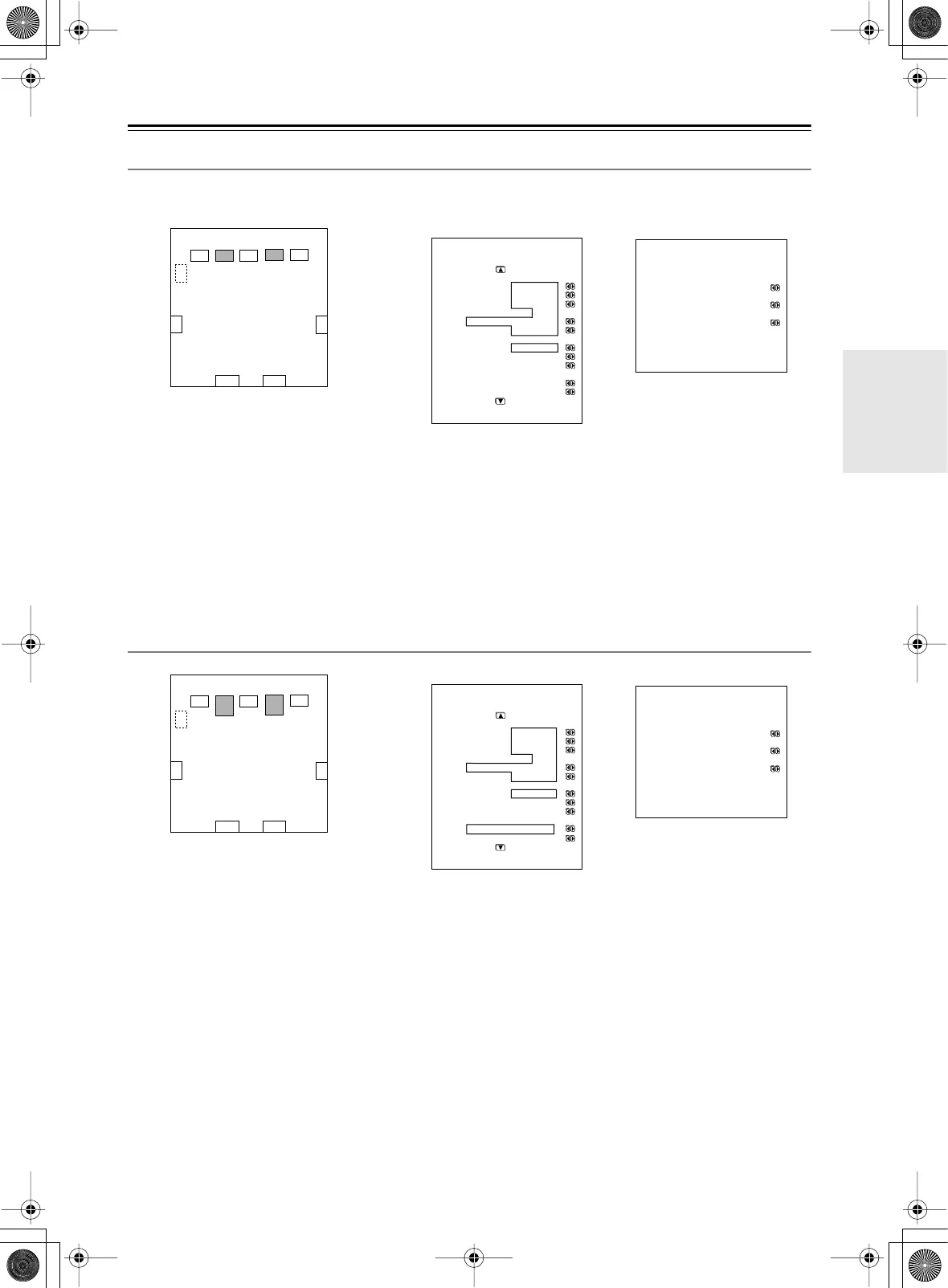

Main room A: 7.1 ch speaker systems and the two additional front speakers
(When you want to use speaker system [A] for movies and enjoy 7.1 surround sound and the two additional front
speakers for classic music.)
• Set all the zone parameters for speaker system [A] to “Main A.”
• Set the front speaker parameters for speaker system [B] to “Main A.”
• If you want to use the front speakers of speaker system [B] for specific sources, select the source and set the front
speaker setting parameters to “B” in the listening mode setup menu.
When you want to output to both speaker systems simultaneously, you can choose the “A+B” setting unless any of
the speakers has an impedance of 8 ohm or lower.
• To output the sound, press the [Main A] button on the remote controller.
Main room A: 7.1 ch speaker system and the two additional front speakers connected through the
BTL or bi-amp connection (when you want to use either the 7.1 ch speakers or the additional front
speakers according to the source)
• Set all the zone parameters for speaker system [A] to “Main A.”
• For speaker system [B], set the front speaker parameters to “Main A” and the surround back speaker parameters to
“BTL for Front ” or “Bi-Amp for Front” (For details on connections, see page 29).
• When you want to use the front speakers of speaker system [B] for specific sources, select the source and set the
front speaker parameters to “B” in the listening mode setup menu.
*When using the BTL or bi-amp connections, the two speaker systems cannot be used to output simultaneously due to the speaker
impedance limitation.
FL FL C
SBL SBR
SW
FRFR
SR
SL
Here is an example of the
stereo listening mode.
1-1.Speaker Config
=====================
Speaker A
a.Front L/R :Main A
b.Center :Main A
c.Surr L/R :Main A
d.Surr Back
:Main A 2ch
e.Subwoofer :Main A
Speaker B
f.Front L/R :Main A
g.Center :Not Used
h.Surr L/R :Not Used
i.Surr Back
:Not Used
j.Subwoofer :Not Used
3-3.Stereo
=====================
a. Re-EQ/Academy
:Off
b.Front Speaker: B
c.Subwoofer: A
Main room A
FL
FL
C
SBL SBR
SW
FR
FR
SR
SL
Here is an example of the
stereo listening mode.
1-1.Speaker Config
=====================
Speaker A
a.Front L/R :Main A
b.Center :Main A
c.Surr L/R :Main A
d.Surr Back
:Main A 2ch
e.Subwoofer :Main A
Speaker B
f.Front L/R :Main A
g.Center :Not Used
h.Surr L/R :Not Used
i.Surr Back
:BTL for Front
j.Subwoofer :Not Used
3-3.Stereo
=====================
a. Re-EQ/Academy
:Off
b.Front Speaker: B
c.Subwoofer: A
Main room A
