Integra DTR-10.5 User Manual

43
Installation and Connections
Connecting AV Components —Continued
Interconnection of i.LINK (AUDIO)-supported Devices
The i.LINK connection allows for data transfer, even if the DTR-10.5 is connected to other devices via another i.LINK
(AUDIO)-supported device. You can connect up to 17 devices in a daisy chain (in-line) connection arrangement using
the i.LINK connection.
Notes:
• Do not connect any devices that do not support i.LINK (AUDIO), such as “MPEG-2 TS” ready devices used for BS
digital broadcasts and “DV” ready devices used for digital video, etc.
• Do not connect/disconnect i.LINK cable to or from other devices, connect additional devices, or turn them on/off
while any i.LINK (AUDIO)-ready device is playing. Otherwise, the audio sound may be interrupted.
• Some i.LINK (AUDIO)-ready devices cannot transfer data when the power mode is set to standby or off. Refer to
the individual User Manual of the i.LINK (AUDIO)-ready device you want to connect.
• i.LINK (AUDIO)-ready devices have their own maximum data transfer rate: either S100 (100 Mbps*), S200 (200
Mbps*) or S400 (400 Mbps*). The rate label is located near the i.LINK (AUDIO) terminals. The DTR-10.5 has a
maximum data transfer rate of 400 Mbps. However, this may decrease depending on the specifications or the maxi-
mum data transfer rate of devices connected to the DTR-10.5. It is recommended to connect devices with the same
maximum data transfer rate.
*“Mbps” stands for “mega bits per second” which indicates the maximum data size transferred per second. For example, 400 Mbps
indicates that 400 mega bits of data can be transferred every second.
• The i.LINK feature does not assure successful connectivity between all i.LINK (AUDIO)-ready devices. Successful
data transfer and control signal communications depend on the individual features of each device.

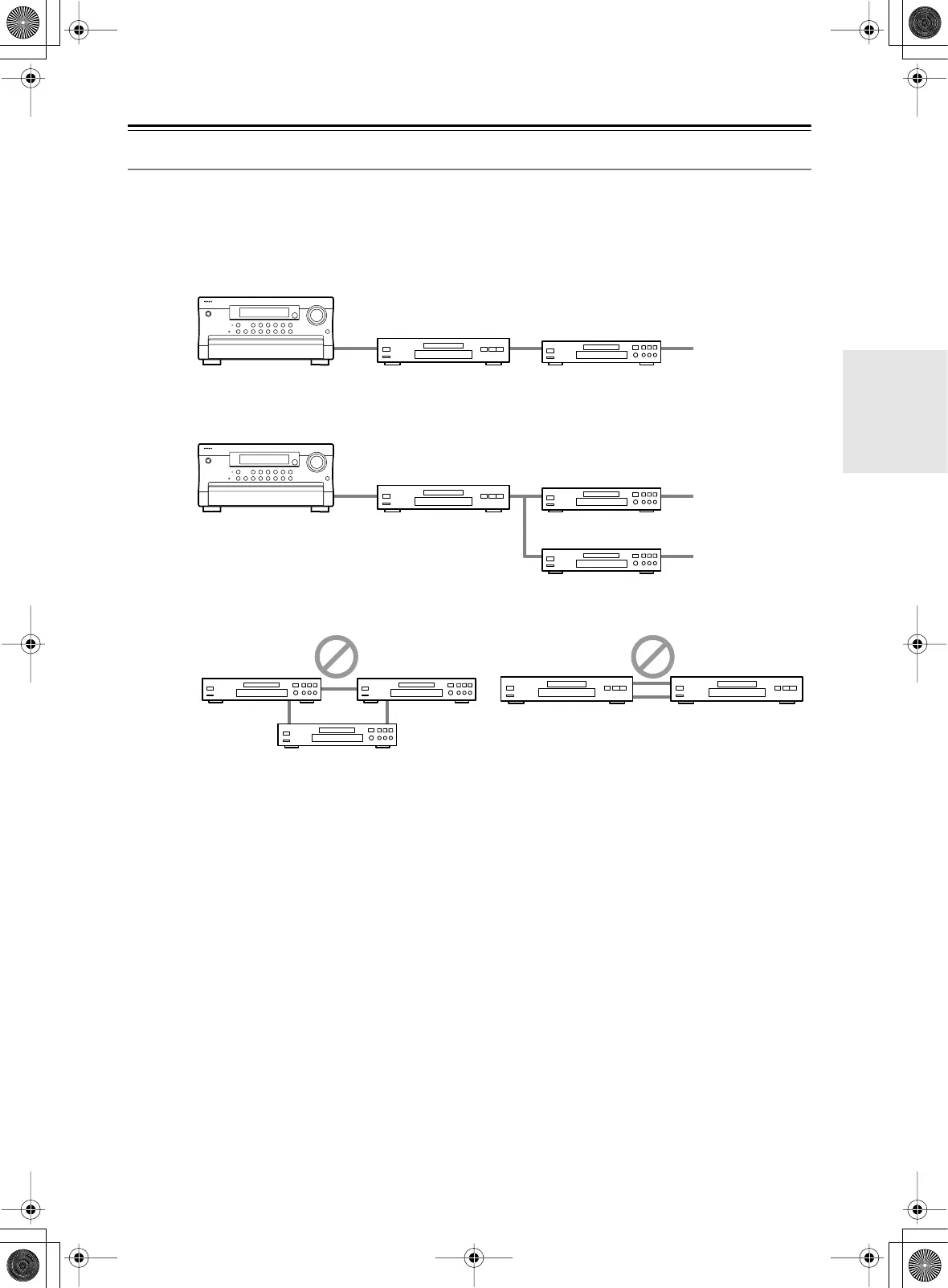

... up to 17 devices
Example:
Example:
... up to 63 devices
For devices in a branched connection arrangement, you can connect up to 63, as long as they have three or more
i.LINK (AUDIO) terminals.
DTR-10.5
i.LINK ready DVD player i.LINK-ready BS tuner
DTR-10.5
i.LINK-ready DVD player
i.LINK-ready BS tuner
i.LINK-ready MD recorder
i.LINK (AUDIO)-
ready device
i.LINK (AUDIO)-ready
device
i.LINK (AUDIO)-ready
device
i.LINK (AUDIO)-ready
device
B
e sure to avoid the looped connection arrangement of devices as shown below. The output signals should not be
r
eturned to the original signal output device, which may cause device failure.
i.LINK (AUDIO)-ready
device

Integra DTR-10.5 Specifications

Amplifier Specifications

amplifier power output at 6 ohms	200 W per channel
amplifier power output at 8 ohms	150 W per channel
dynamic power output at 3 ohms	2 x 340 W
dynamic power output at 4 ohms	2 x 260 W
dynamic power output at 8 ohms	2 x 175 W
frequency response	5 Hz to 100 kHz
signal-to-noise ratio	110 dB
total harmonic distortion	0.08%
damping factor	60 at 8 ohms

Input and Output Specifications

line input sensitivity and impedance	200 mV, 50 k ohms
multi-channel input sensitivity and impedance	200 mV, 50 k ohms
subwoofer input sensitivity and impedance	36 mV, 50 k ohms
rec out level and impedance	200 mV, 470 ohms
pre out level and impedance	1 V, 470 ohms
zone 2/3 line output level and impedance	100 mV, 470 ohms

Radio Specifications

AM tuning range	530–1, 710 kHz
AM usable sensitivity	30 µV
FM tuning range	87.5–108.0 MHz
FM usable sensitivity, stereo	17.2 dBf, 2.0 µV (75 ohms IHF)

Phono and Tone Control

phono input sensitivity	2.5 mV, 50 k ohms
phono overload	70 mV RMS at 1 kHz, 0.5% THD
RIAA deviation	20 Hz to 20 kHz: ±0.8 dB
phono signal-to-noise ratio	80 dB
bass control	±12 dB at 50 Hz
mid range control	±12 dB at 1, 000 Hz
treble control	±12 dB at 20, 000 Hz

General Specifications

power supply	AC 120 V, 60 Hz
power consumption	13.0 A
dimensions	435 x 175 x 429 mm
weight	32.1 kg
