Intel Agilex Series

Pin Function Direction I/O Standard Schmitt
Trigger/
TTL Input
Weak Pull-Up/
Pull-Down
Drive
Strength
Open
Drain
Slew
Rate
nCATTRIP
Output 1.8V LVCMOS — — 2 mA Disable Slow
TAMPERDETECTION
Output 1.8V LVCMOS — — 8 mA Disable Fast
TAMPERRESPONSESTATUS
Output 1.8V LVCMOS — — 8 mA Disable Fast
2.5.3.3.1. IBIS Model
You can download the IBIS models from the IBIS Models for Intel Devices web page. The Intel Quartus Prime software does
not support IBIS model generation for configuration pins in the current release.
Related Information
IBIS Models for Intel Devices
2.5.3.4. SDM I/O Pins for Power Management and SmartVID
SDM pins are also available for the SmartVID power management feature for -V and -E devices.
Intel recommends that you use ED8401, EM21XX, EM22XX, LTC3888, or LTM4677 to regulate the PMBus. The LTM4677 device
is the default setting for the Device ➤ Device and Pin Options ➤ Power Management & VID ➤ Slave device type
parameter. Select a regulator you use on your board. If you are using a different PMBus regulator, change the default setting
from LTM4677 to Other.

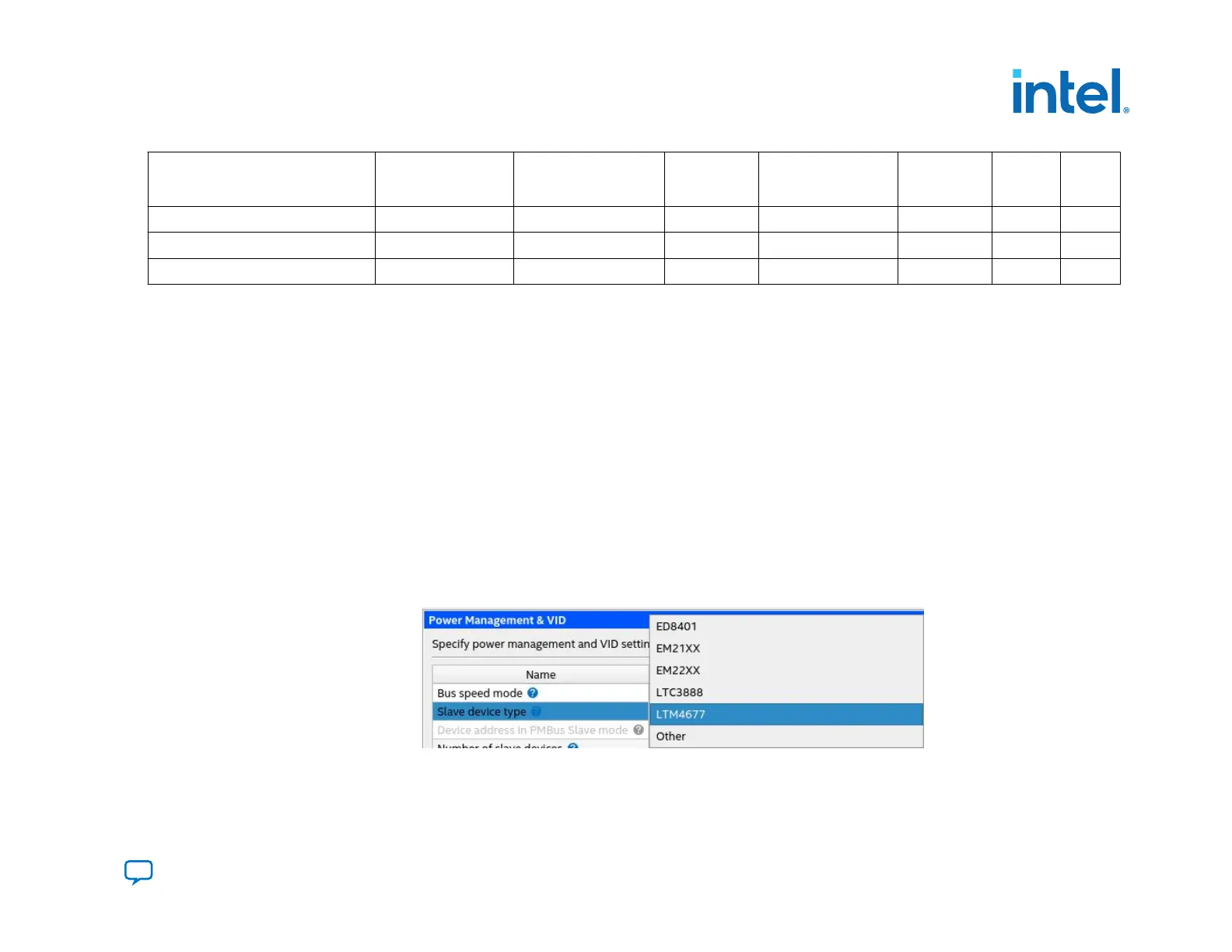

Figure 12. Specifying the Slave Device Type for Power Management and VID
2. Intel Agilex Configuration Details
