Interlogix TruVision User Manual

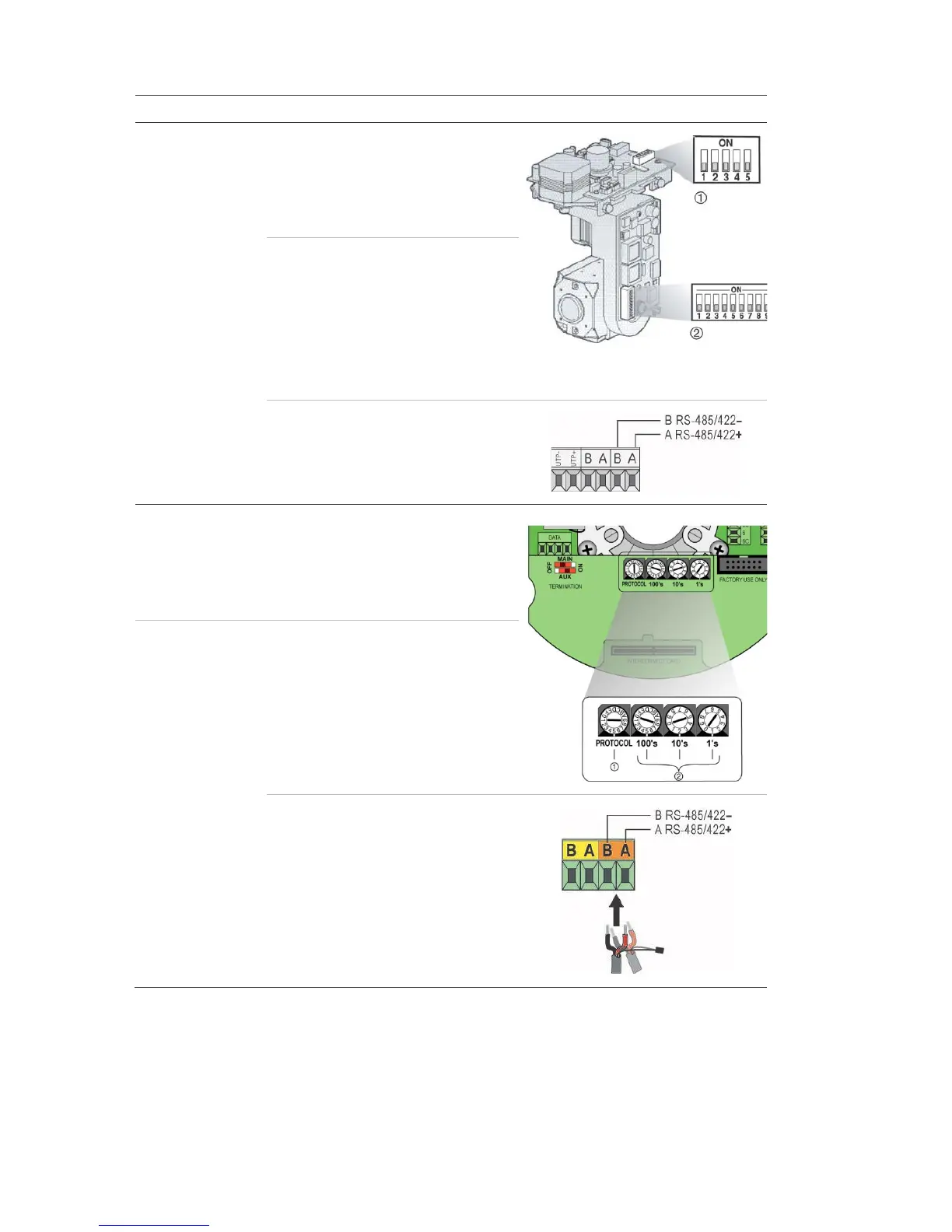

Appendix D: Connect a PTZ dome camera
140 TruVision DVR 12HD User Manual
Camera
Switch setting
UltraView PTZ
Protocol switches:
• RS-485 (on
recorder): 01000
1. Protocol switches;
2. Address switches
• RS-422 (on I/O
box):
10000
Address switches: Select the
address
switch
address as
required.
RS-422/RS-485 data connector:
Legend
Protocol switches:
• RS-485 on
recorder):
1
• RS-422 (on I/O
box):
0
Address switches: Select the
camera ID
DIP switch
address as
required.
RS-422/RS-485 data connector:
